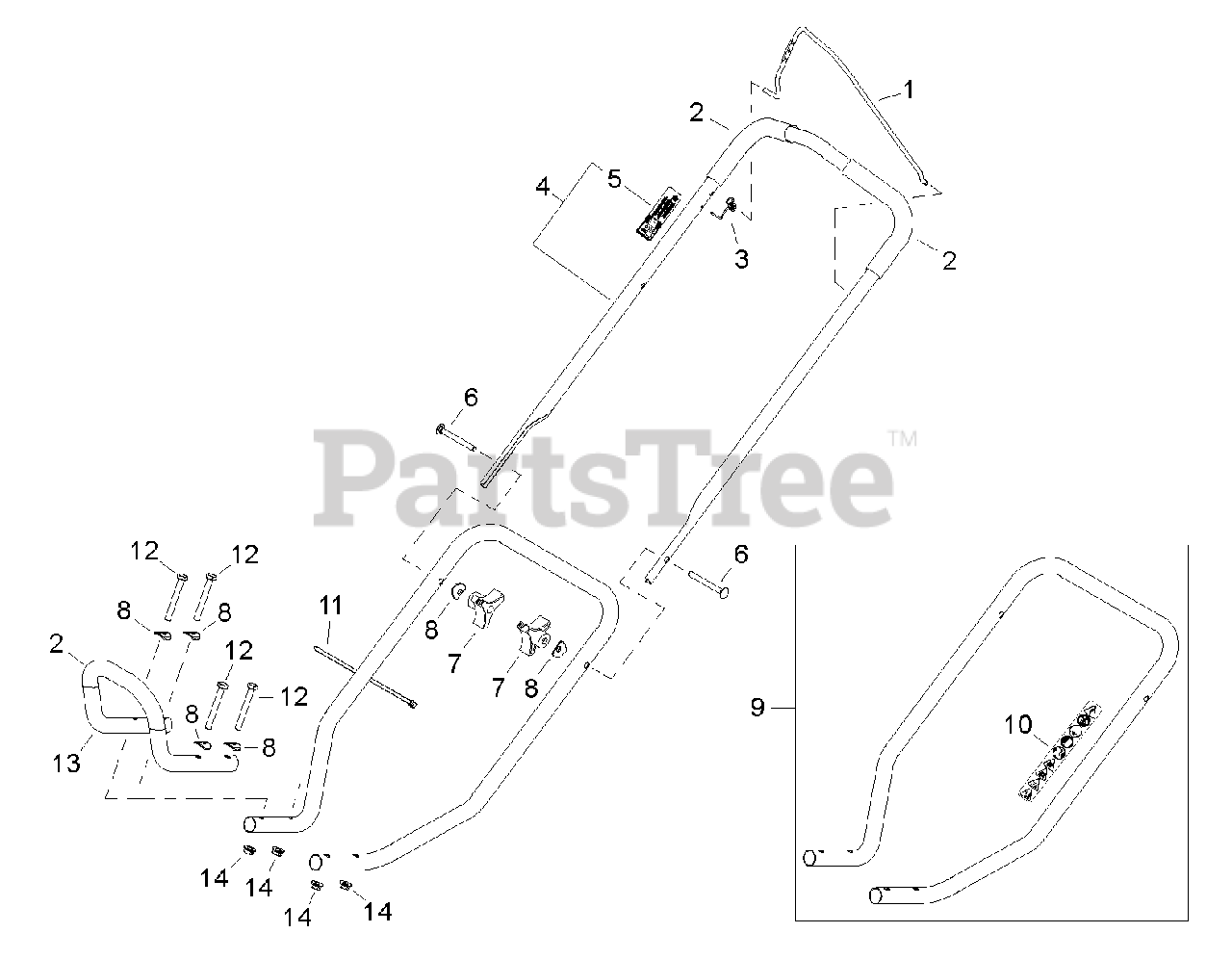

CT 2510 - Shindaiwa Cultivator Handles Parts Diagram

Cultivator

Handles Parts Diagram

  • Title

1

Echo 753-04042

BAIL - THROTTLE CONTROL

$46.99

$

Usually ships in 2-4 days

0

2

Echo 753-04044

FOAM GRIP
(Superseded to Discontinued)

$

$

Not available

3

Echo 753-05940

TORSION SPRING
(Superseded to Discontinued)

$

$

Not available

4

Echo 753-04498

HANDLE ASSY - UPPER
(Superseded to Discontinued)

$

$

Not available

5

Echo 89261

LABEL - IGNITION SWITCH
(Superseded to Discontinued)

$

$

Not available

6

Echo 791-182899

BOLT
(Superseded to Discontinued)

$

$

Not available

7

Echo 791-182677

KNOB
(Superseded to Discontinued)

$

$

Not available

8

Echo 753-04052

SHOULDER WASHER
(Superseded to Discontinued)

$

$

Not available

9

Echo 753-04053

HANDLE ASSY - LOWER

$107.99

$

Usually ships in 2-4 days

0

10

Echo 89214

LABEL - CAUTION

$

$

Currently unavailable

11

Echo 753-04049

TIE, CABLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 753-04054

SCREW
(Superseded to Discontinued)

$

$

Not available

13

Echo 753-04055

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

14

Echo 753-04056

LOCKNUT
(Superseded to Discontinued)

$

$

Not available
