CT 2105 R (960910001-13) - Jonsered Rear-Tine Cultivator (2014-01) TRANSMISSION Parts Diagram

Rear-Tine Cultivator

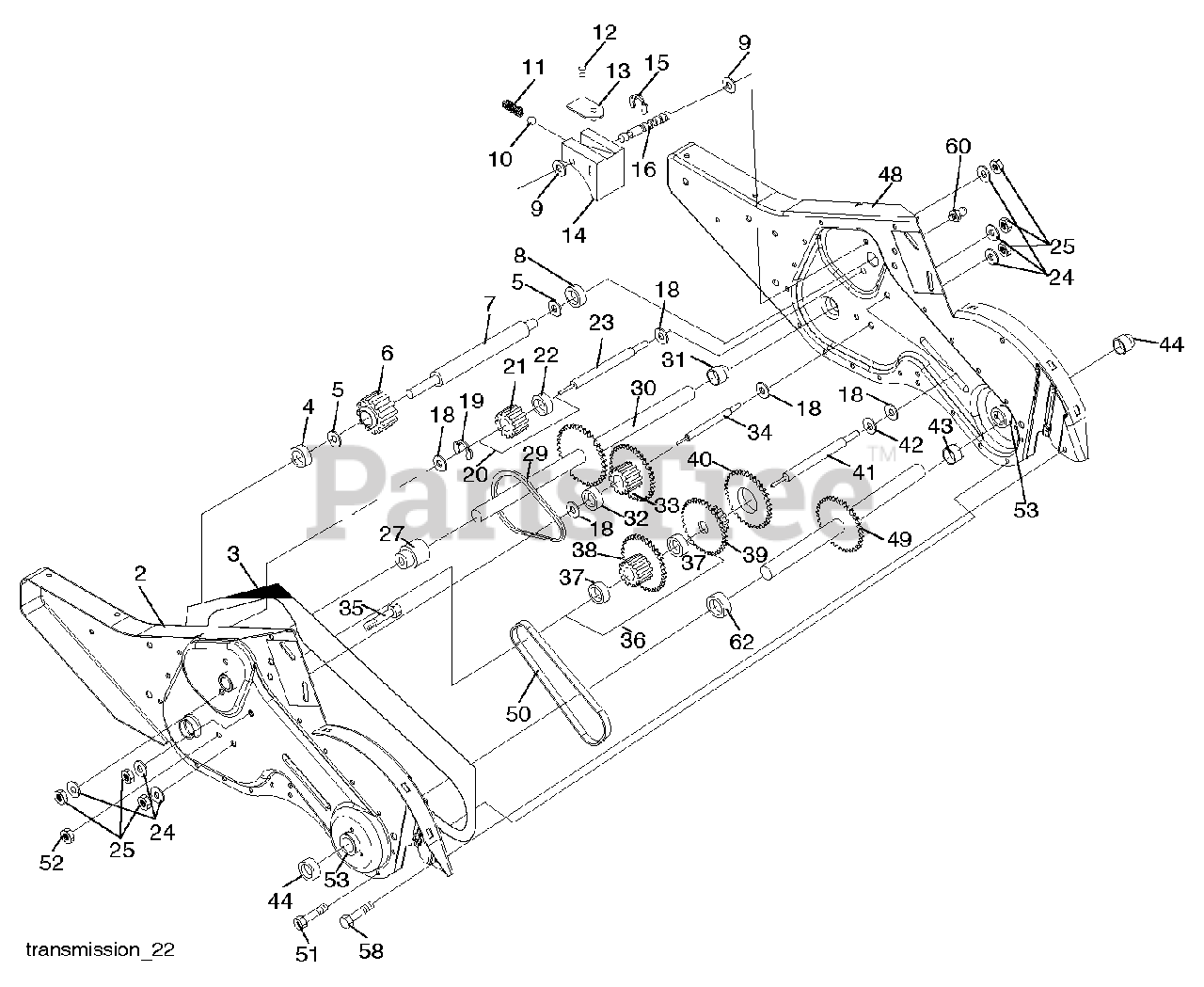

TRANSMISSION Parts Diagram

  • Title
--

Jonsered 585923701

(Superseded to 532181098)

$849.99

$

Usually ships in 3-10 days

0

2

Jonsered 532188482

GEARCASE.ASM.CRT.LH.W/BEARING
(Superseded to 532181098)

$849.99

$

Usually ships in 3-10 days

0

3

Jonsered 532431022

GASKET, GEARCASE

$24.99

$

In Stock, Qty 8

0

4

Jonsered 532005020

NEEDLE BRNG LT

$17.99

$

In Stock, Qty 5

0

5

Jonsered 532001370

THRUST WASHER

$6.49

$

In Stock, only 2 left!

0

6

Jonsered 586196301

Pinion Input Gear, CRT Tiller

$26.99

$

In Stock, only 1 left!

0

7

Jonsered 532145101

SHAFT.INPUT."D".TILLER

$78.99

$

Usually ships in 3-10 days

0

8

Jonsered 532124792

BEARING TI
(Superseded to 532004895)

$17.99

$

In Stock, Qty 14

0

9

Jonsered 532154467

WASHER, SEAL

$7.49

$

In Stock, only 2 left!

0

10

Jonsered 532124697

STEEL BALL KIT
(Superseded to 532100482)

$7.49

$

In Stock, only 1 left!

0

11

Jonsered 532100371

SPRING-SHIFT CRT

$7.49

$

In Stock, only 4 left!

0

12

Jonsered 532106160

O-RING TI

$6.49

$

Usually ships in 3-10 days

0

13

Jonsered 532142145

SHIFTING ARM

$

$

Not available

14

Jonsered 532008353

SHIFT FORK TI

$34.99

$

In Stock, Qty 7

0

15

Jonsered 812000039

KLIP RING

$6.49

$

In Stock, Qty 7

0

16

Jonsered 532154466

SHAFT.SHIFTER.TILLER

$6.99

$

In Stock, only 2 left!

0

18

$7.49

$

In Stock, only 3 left!

0

19

Jonsered 812000040

KLIP RING

$6.49

$

Usually ships in 3-10 days

0

20

Jonsered 532102114

GEAR ASSY CRT

$

$

Not available

21

Jonsered 532102115

GEAR-REV IDLR CRT

$26.99

$

In Stock, only 1 left!

0

22

Jonsered 532006803

NEEDLE BEARING TI

$10.99

$

In Stock, Qty 5

0

23

Jonsered 532102111

SHAFT CRT

$22.99

$

Usually ships in 3-10 days

0

24

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

25

$7.49

$

In Stock, only 4 left!

0

27

Jonsered 532431219

BEARING.GROUND.DRIVE

$

$

Not available

29

Jonsered 532102134

CHAIN CRT

$31.99

$

Usually ships in 3-10 days

0

30

Jonsered 532150737

GROUND SHAFT ASS'Y

$

$

Not available

31

Jonsered 532143008

BEARING, SHAFT RH CRT

$

$

Not available

32

Jonsered 532106388

SPACER TI

$6.99

$

In Stock, only 1 left!

0

33

Jonsered 532102121

SPRCKT 8 GEAR CRT

$

$

Not available

34

Jonsered 532102112

SHAFT.SECONDARY.REDUCTION.CRT

$43.99

$

Usually ships in 3-10 days

0

35

Jonsered 532102101

SCRW WHIZ LOK CRT

$4.99

$

Usually ships in 3-10 days

0

36

Jonsered 532154355

SPROCKET ASS'Y W/BRG

$

$

Not available

37

Jonsered 532124791

BEARING
(Superseded to 532004422)

$6.99

$

In Stock, only 2 left!

0

38

Jonsered 532154356

SPROCKET, TINE
(Superseded to 532154355)

$

$

Not available

39

Jonsered 532105345

GEAR TI
(Superseded to 532131527)

$

$

Not available

40

$45.99

$

Usually ships in 3-10 days

0

41

Jonsered 532008358

SHAFT.REDUCTION.TILLER

$17.99

$

In Stock, only 1 left!

0

42

Jonsered 532004220

BRNG RACE T

$5.99

$

Usually ships in 3-10 days

0

43

Jonsered 532106146

SPACER TI

$34.99

$

Usually ships in 3-10 days

0

44

Jonsered 532155236

SEAL ASM, OIL

$7.49

$

In Stock, only 3 left!

0

48

Jonsered 532188485

GEARCASE.ASM.CRT.RH.W/BEARING
(Superseded to 532181098)

$849.99

$

Usually ships in 3-10 days

0

49

Jonsered 532431485

SHAFT.ASM.TINE

$

$

Not available

50

Jonsered 532106147

CHAIN.TILLER

$66.99

$

Usually ships in 3-10 days

0

$5.99

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

53

Jonsered 532165140

BEARING KIT

$93.99

$

In Stock, only 1 left!

0

58

Jonsered 532179520

BOLT SHOULDER 1/4-20 UNC X.875

$4.99

$

Usually ships in 3-10 days

0

60

Jonsered 532183226

FITTING.GREASE.TAPERED

$7.49

$

In Stock, only 2 left!

0

62

$6.99

$

Usually ships in 3-10 days

0

--

Jonsered 532006066

GREASE CARTRIDGE
(Superseded to 585517301)

$

$

Not available
