CT 2105 R (954130096) - Jonsered Rear-Tine Cultivator (2003-01) MAINFRAME LEFT SIDE Parts Diagram

Rear-Tine Cultivator

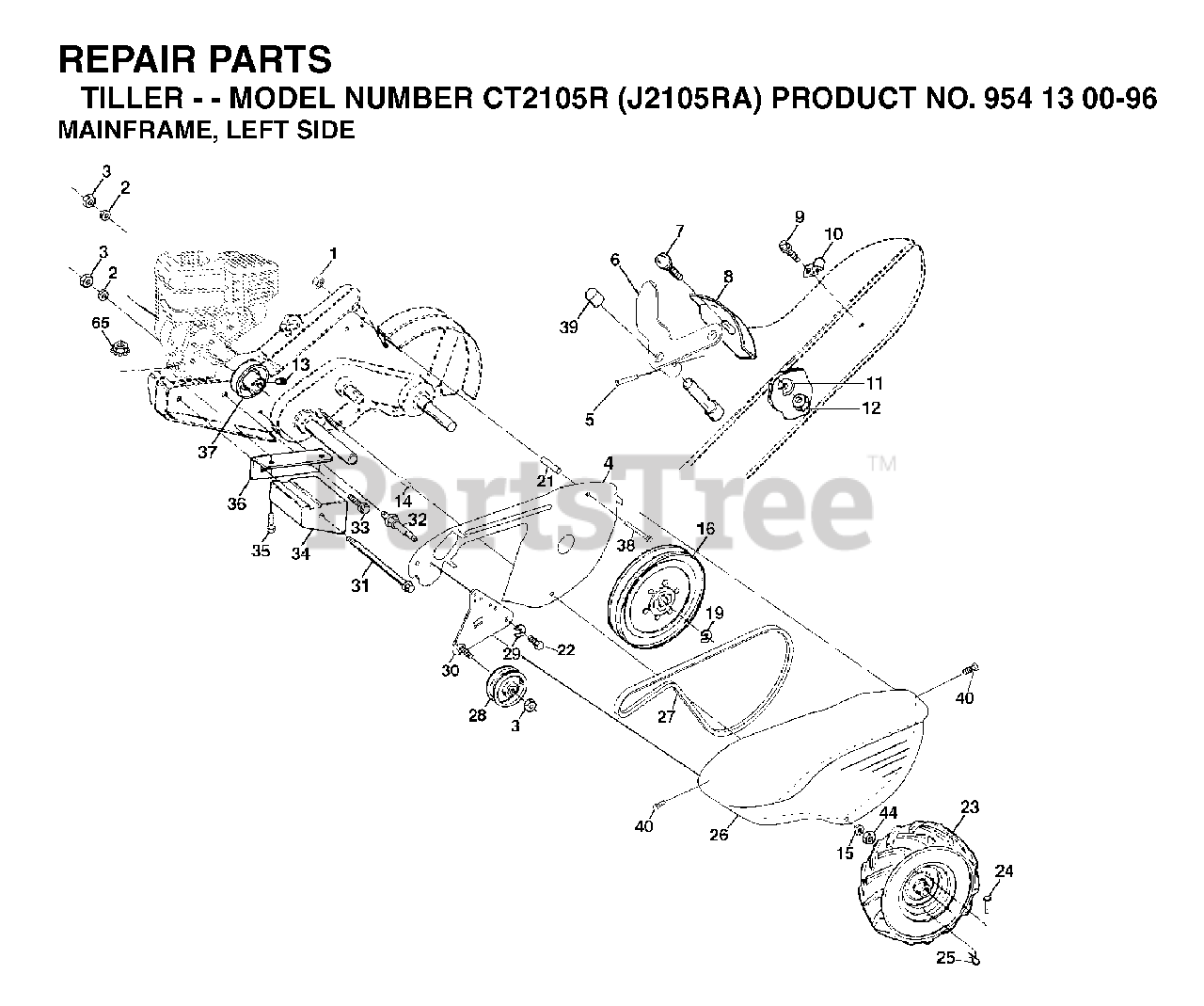

MAINFRAME LEFT SIDE Parts Diagram

  • Title

1

Jonsered 873510500

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

2

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

3

Jonsered 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

4

Jonsered 532170127

No Description Available
(Superseded to 532432508)

$43.99

$

Usually ships in 3-10 days

0

5

Jonsered 532164329

PIN.SPIROL.FLARED

$7.49

$

In Stock, Qty 8

0

6

Jonsered 532110111

LEVER ASM CRT

$18.99

$

Usually ships in 3-10 days

0

7

Jonsered 872110404

BOLT

$9.49

$

Usually ships in 3-10 days

0

8

Jonsered 532008700

PANEL TI

$4.99

$

In Stock, only 1 left!

0

9

Jonsered 532086777

TAPPING SCREW
(Superseded to 532750097)

$4.99

$

In Stock, Qty 14

0

10

Jonsered 532009484

CONDUIT CLIP T

$6.49

$

In Stock, only 4 left!

0

11

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

12

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

13

Jonsered 823230506

SET SCREW **

$4.99

$

In Stock, only 2 left!

0

14

Jonsered 532156117

SPACER-SPLIT.327 X .42

$6.49

$

Usually ships in 3-10 days

0

15

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

16

Jonsered 532145102

SHEAVE, TRANSMISSION

$68.99

$

In Stock, only 3 left!

0

19

Jonsered 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

21

Jonsered 532110652

SPACER CRT

$5.99

$

Usually ships in 3-10 days

0

22

Jonsered 874770508

BOLT

$4.99

$

Usually ships in 3-10 days

0

23

Jonsered 532005015

TIRE

$145.99

$

In Stock, only 2 left!

0

5321243-66

Jonsered 532124366

RIM
(Superseded to 532128952)

$

$

Not available

5321247-18

Jonsered 532124718

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

24

Jonsered 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

25

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

Jonsered 532167488

No Description Available

$

$

Not available

27

Jonsered 532132801

V-BELT
(Superseded to 591372401)

$17.99

$

In Stock, only 3 left!

0

28

Jonsered 532104679

PULLEY-IDLER TI

$18.99

$

In Stock, only 1 left!

0

29

Jonsered 812000032

KLIP RING

$7.49

$

Usually ships in 3-10 days

0

30

Jonsered 532159229

BRACKET.ASM.IDLER
(Superseded to 584289401)

$

$

Not available

31

Jonsered 532102384

BOLT.FIN.HEX.3/8-16UNC

$9.49

$

Usually ships in 3-10 days

0

32

Jonsered 532102141

SHIFT ARM CRT

$7.99

$

Usually ships in 3-10 days

0

33

Jonsered 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

34

Jonsered 532102383

COUNTERWEIGHT.LH.CRT

$133.99

$

Usually ships in 3-10 days

0

35

Jonsered 874760532

BOLT

$2.99

$

Usually ships in 3-10 days

0

36

Jonsered 532102331

BRACKET LH CRT
(Superseded to 584366901)

$13.99

$

Usually ships in 3-10 days

0

37

Jonsered 532130812

ENGINE PULLEY
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

38

Jonsered 874760544

BOLT
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

39

Jonsered 532140062

CAP.PLUNGER.BLACK

$6.49

$

Usually ships in 3-10 days

0

40

Jonsered 532170488

SCREW.HEX.WSH.SLT.#10-24X.50

$6.49

$

In Stock, only 2 left!

0

44

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

65

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
