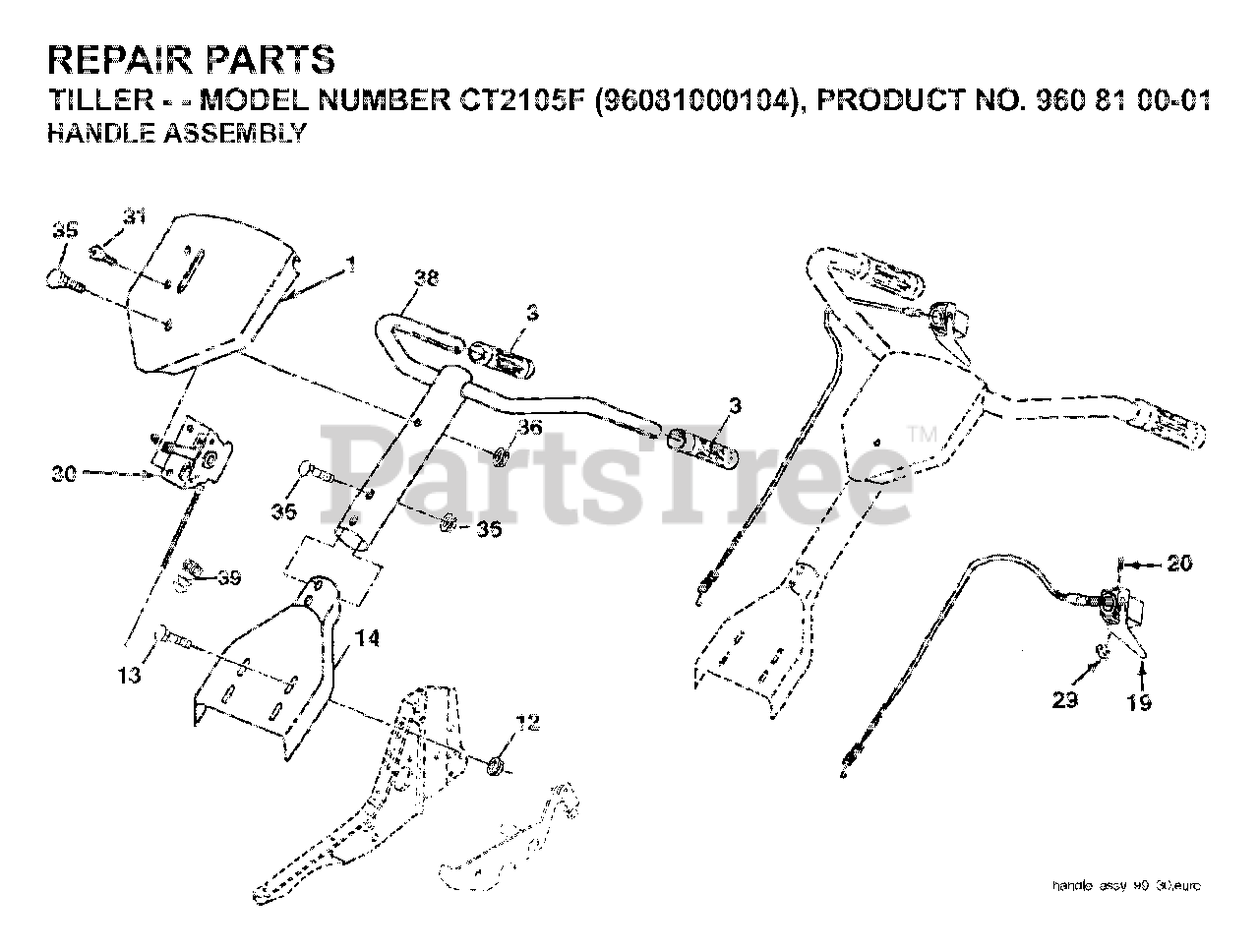

CT 2105 F (960810001-04) - Jonsered Front-Tine Cultivator (2008-04) HANDLE Parts Diagram

Front-Tine Cultivator

HANDLE Parts Diagram

  • Title
1

Jonsered 532190615

No Description Available

$

$

Not available

3

Jonsered 532110632

No Description Available

$10.99

$

Usually ships in 3-10 days

0

12

Jonsered 898000129

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

13

Jonsered 872010506

BOLT.RH.SQNK.5/16

$3.49

$

In Stock, only 3 left!

0

14

Jonsered 532181476

PANEL ASM. POLE
(Superseded to 532446412)

$42.99

$

Usually ships in 3-10 days

0

19

Jonsered 532188562

No Description Available

$53.99

$

In Stock, only 1 left!

0

20

Jonsered 532188555

PIN, PIVOT

$6.49

$

In Stock, only 2 left!

0

29

Jonsered 812000059

RETAINING RING
(Superseded to 582730101)

$6.49

$

In Stock, only 2 left!

0

30

Jonsered 532180622

No Description Available

$

$

Not available

31

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

35

Jonsered 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

36

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

38

Jonsered 532417466

No Description Available

$

$

Not available

39

Jonsered 532181580

CLIP.ROUTING DUAL

$6.49

$

Usually ships in 3-10 days

0
