CT 20V50 C - Electrolux/AYP Lawn Tractor (1997) LIFT ASSEMBLY Parts Diagram

Lawn Tractor

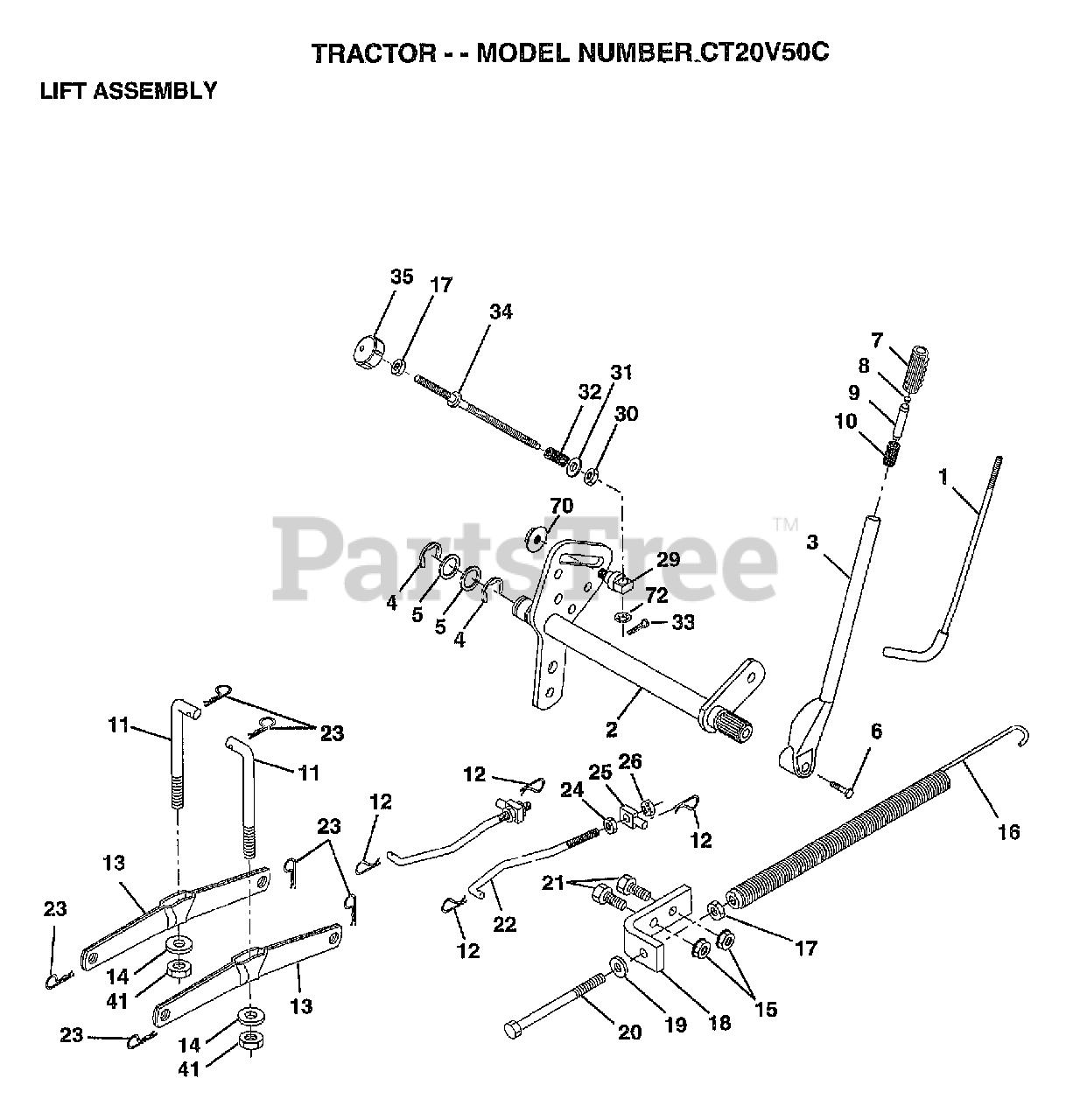

LIFT ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 121006X

LEVER ROD LT
(Superseded to 532121006)

$34.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 154389

SHAFT AMS LIFT
(Superseded to 192468)

$100.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 121002X

SUB= 123096X

$

$

Not available

4

Electrolux/AYP 12000022

E-RING
(Superseded to 812000022)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 74780624

"BOLT,HEX"
(Superseded to 874780624)

$7.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 124526X

SUB= 125925X

$

$

Not available

9

Electrolux/AYP 122364X

SUB= 125925X
(Superseded to 532122364)

$

$

Not available

10

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 146704

LINK.LIFT.MWR.VGT
(Superseded to 532145543)

$

$

Not available

12

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 139868

ARM SUSP REAR
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 140302

BEARING PVT LH
(Superseded to 532169865)

$

$

Not available

15

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 674A247

SUB= 918674A247
(Superseded to 583791201)

$84.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 143363

BRACKET SPRING AS
(Superseded to 532143363)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 5328J

BOLT-ADJ SPRING T
(Superseded to 532005328)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 127218

LINK.FRONT
(Superseded to 532127218)

$17.99

$

In Stock, only 4 left!

0

23

Murray 4939M

SUB= 85902

$

$

Not available

24

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

25

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

26

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

29

Electrolux/AYP 150233

TRUNNION
(Superseded to 532150233)

$12.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$

$

Not available

31

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

32

Electrolux/AYP 137150

SPRING.COMP.INF.H
(Superseded to 532137150)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

34

Electrolux/AYP 137167

ROD.ADJ.LIFT
(Superseded to 532137167)

$7.49

$

In Stock, only 2 left!

0

35

Electrolux/AYP 138057

KNOB INF 3/8-16
(Superseded to 532138057)

$8.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 73540600

NUT.CROWNLOCK.3/8
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

70

Murray 145212

NUT.HXFLG.LOCK.
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

72

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0
