CT 20 (966957301) - Husqvarna Cultivator (2008-04) Handlebars/Grip / On-Off Switch / Throttle Control/Throttle Cable Parts Diagram

Cultivator

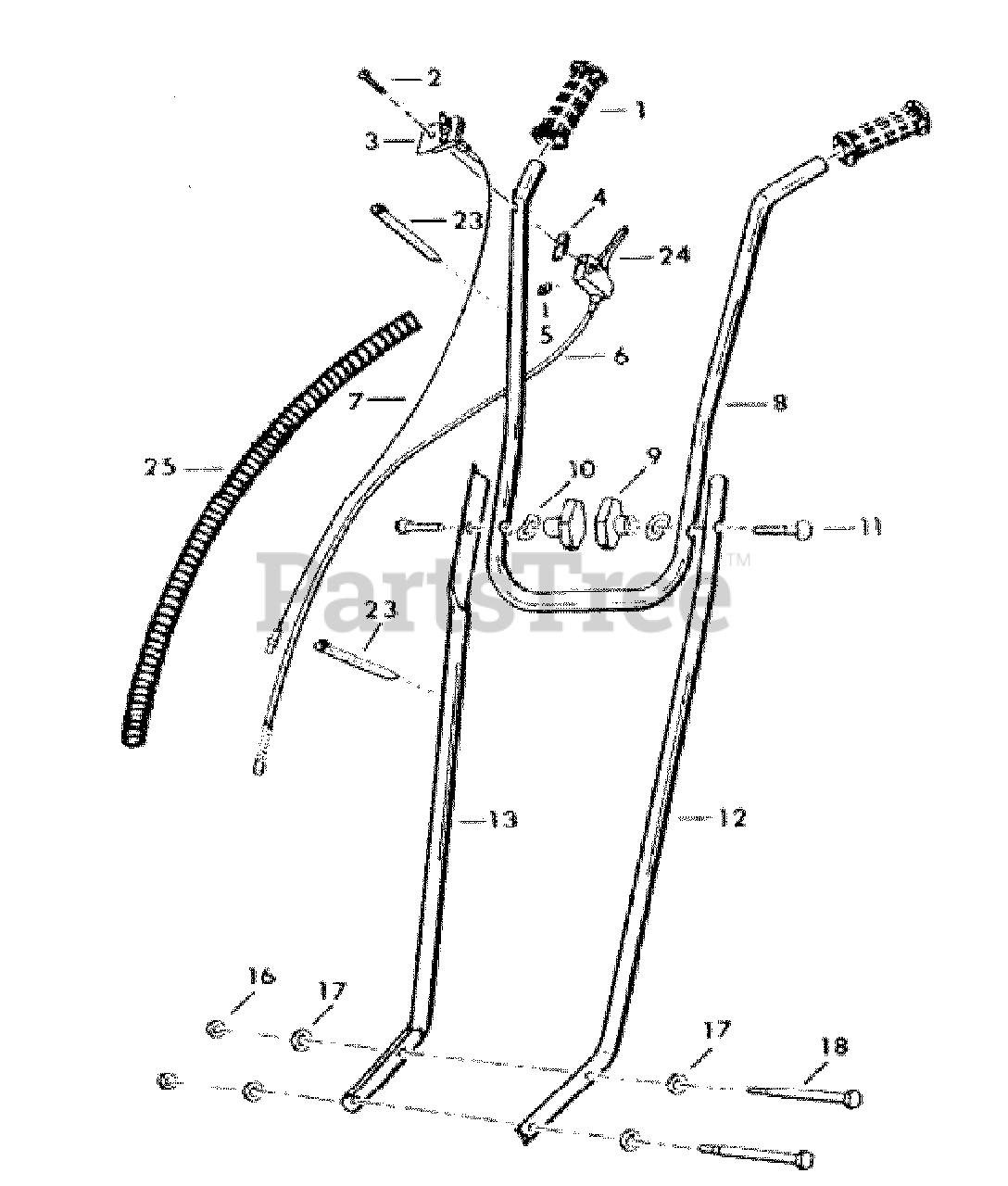

Handlebars/Grip / On-Off Switch / Throttle Control/Throttle Cable Parts Diagram

  • Title
1

Husqvarna 505290001

Grip, Handlebar

$

$

Not available

2

Husqvarna 505290002

Screw, #10-24 x 1 3/8

$

$

Not available

3

Husqvarna 505290003

Switch Assy, w/Mtg Plate

$

$

Not available

4

$

$

Not available

5

Husqvarna 505290005

Nut, Throttle/Switch Assy

$

$

Not available

6

Husqvarna 505290006

Throttle Cable

$

$

Not available

7

Husqvarna 505290007

Wire Assembly

$

$

Not available

8

Husqvarna 505290008

Handlebar, Upper

$

$

Not available

9

Husqvarna 505290009

Knob, Plastic, Handlebar

$

$

Not available

10

Husqvarna 505290010

Washer, Curved Knob

$

$

Not available

11

Husqvarna 505290011

Screw, Curved Hd 5/16-18 x 1 1/2

$

$

Not available

12

Husqvarna 505290012

Handlebar, Lower L.H.

$

$

Not available

13

Husqvarna 505290013

Handlebar, Lower R.H.

$

$

Not available

16

Husqvarna 505290014

Nut, 1/4-20

$

$

Not available

17

Husqvarna 505290010

Washer, Curved

$

$

Not available

18

Husqvarna 505290015

Screw, 1/4-20 x 4 1/2

$

$

Not available

23

$

$

Currently unavailable

24

Husqvarna 505290016

Throttle Trigger

$

$

Not available

25

Husqvarna 505290017

Housing, Wire Assy & Thrl Cable

$

$

Not available
