CT 20 (966957301) - Husqvarna Cultivator (2008-04) Engine/Transmission/Tines/Shield Parts Diagram

Cultivator

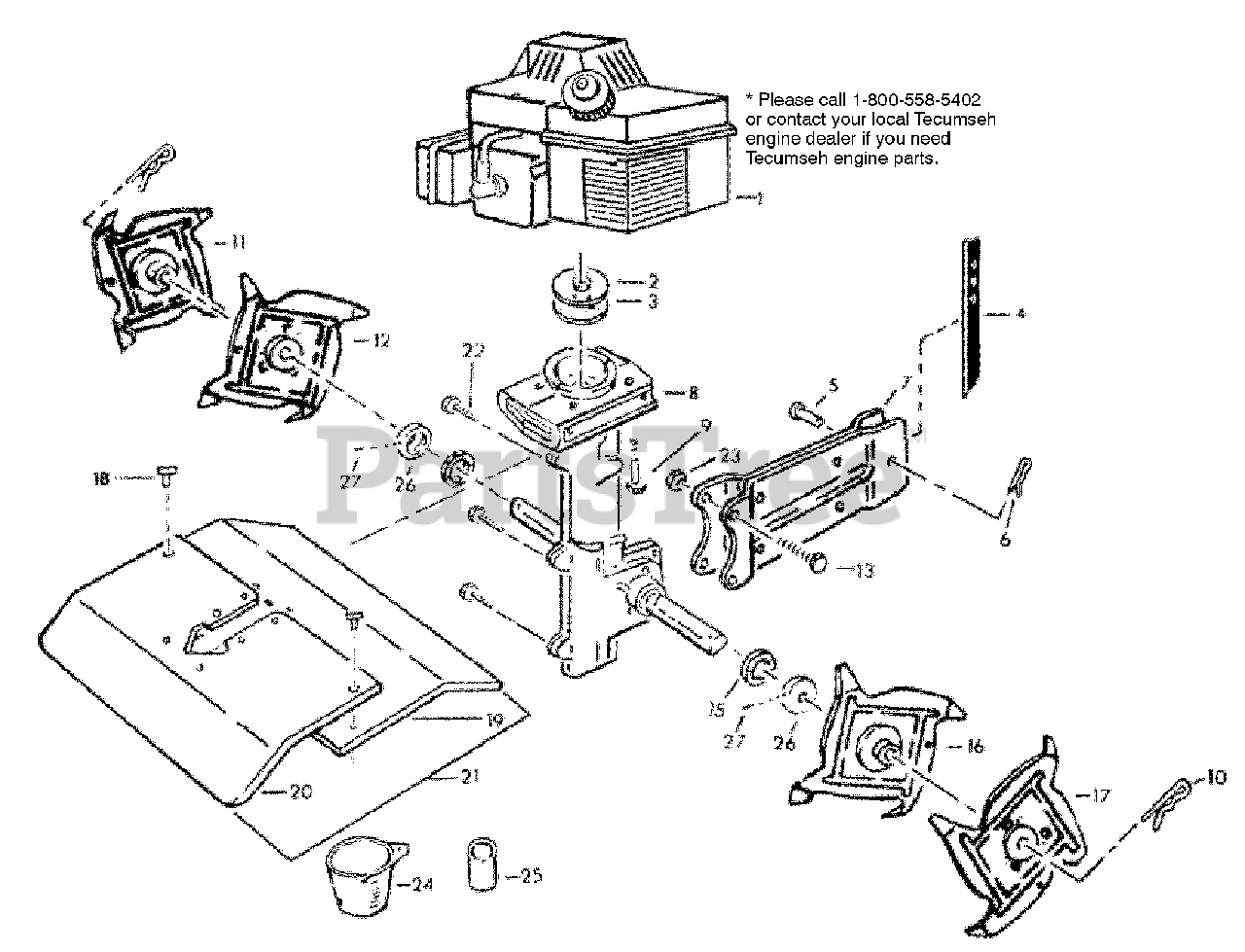

Engine/Transmission/Tines/Shield Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Husqvarna 505290061

Clutch Assy

$

$

Not available

3

Husqvarna 505290062

Spring, Clutch

$

$

Not available

4

Husqvarna 505290039

Drag Stake

$

$

Not available

5

Husqvarna 505290058

Pin, Clevis 5/16 x 7/8

$

$

Currently unavailable

6

Husqvarna 505290040

Hairpin

$

$

Not available

7

Husqvarna 505290035

Bracket Assembly

$

$

Not available

8

Husqvarna 505290041

Transmission Assembly, Complete

$

$

Not available

9

Husqvarna 505290042

Screw, Whizz Loc, 1/4-20 x 2

$

$

Not available

10

Husqvarna 505290043

Hairpin

$

$

Not available

11

Husqvarna 505290044

Tine & Hub, R.H. Outbrd

Note: (D)

$

$

Not available

12

Husqvarna 505290045

Tine & Hub, R.H. Inbrd

Note: (C)

$

$

Not available

13

Husqvarna 505290036

Screw, 1/4 - 20 x 1"

$

$

Not available

15

Husqvarna 505290032

Felt Seal

$

$

Not available

16

Husqvarna 505290046

Tine & Hub, L.H. Inbrd

Note: (B)

$

$

Not available

17

Husqvarna 505290047

Tine & Hub, L.H. Outbrd

Note: (A)

$

$

Not available

22

Husqvarna 505290037

Screw, 1/4 - 20 x 7/8, Thrd. From

$

$

Not available

23

Husqvarna 505290014

Nut, 1/4 - 20

$

$

Not available

24

Husqvarna 505290063

Fuel Mix Cup

$

$

Not available

25

Husqvarna 505290048

Tine Spacers

$

$

Not available

26

Husqvarna 505290033

Dirt Cap, Silver Metal

$

$

Not available

27

Husqvarna 505290034

Set Screw, #10 - 32 x 1/4, Metal Dirt Cap

$

$

Not available
