CT 18546 A - Electrolux/AYP Lawn Tractor (1997) WHEELS AND TIRES Parts Diagram

Lawn Tractor

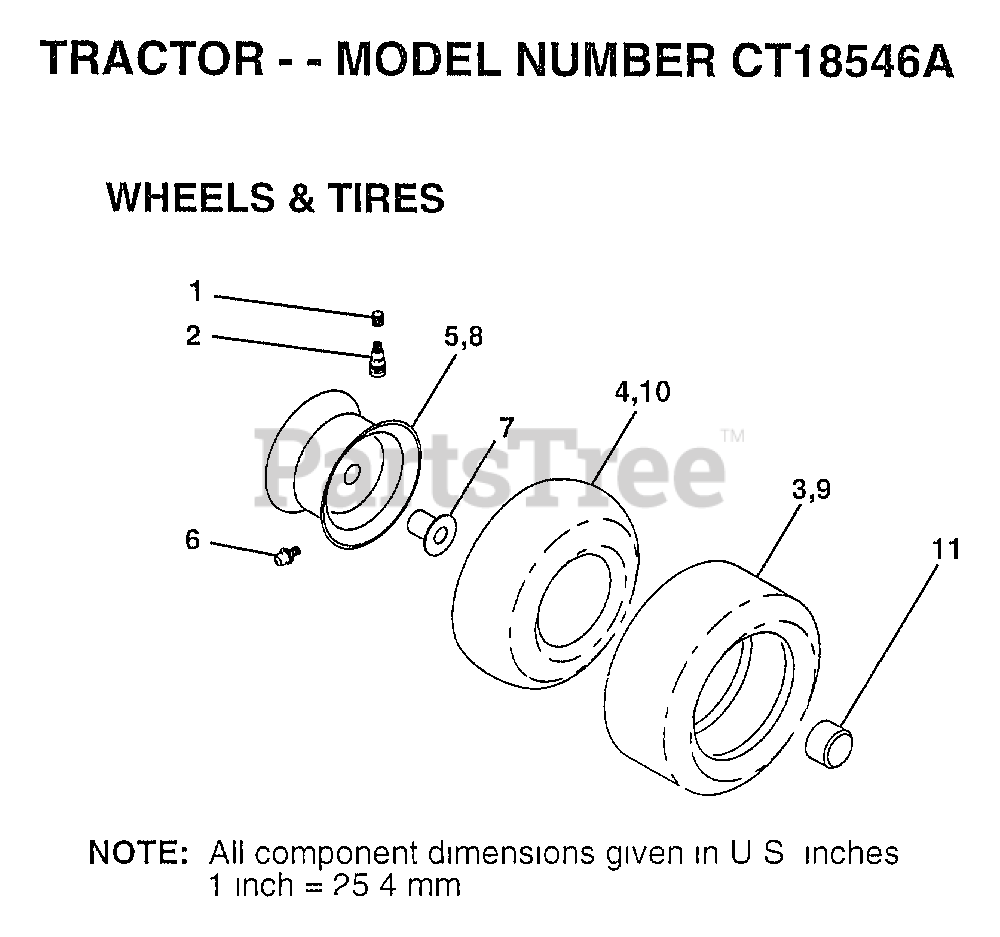

WHEELS AND TIRES Parts Diagram

  • Title
1

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

2

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 106230X

SUB= 122075X
(Superseded to 532106230)

$

$

Not available

4

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 9

0

5

Electrolux/AYP 106228X421

RIM ASSEMBLY, FRONT, 8"
(Superseded to 583649301)

$121.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 124074X421

RIM ASSEMBLY, REAR, 12"
(Superseded to 532437113)

$132.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 124106X

SUB= 138756
(Superseded to 532138756)

$227.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 7154J

TUBE.23X8/10-12
(Superseded to 532007154)

$80.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 144334

SEALANT.TIRE 10 OZ. TUBE
(Superseded to 532144334)

$

$

Not available
