CT 1844 G - Electrolux/AYP Lawn Tractor (1994) MOWER LIFT Parts Diagram

Lawn Tractor

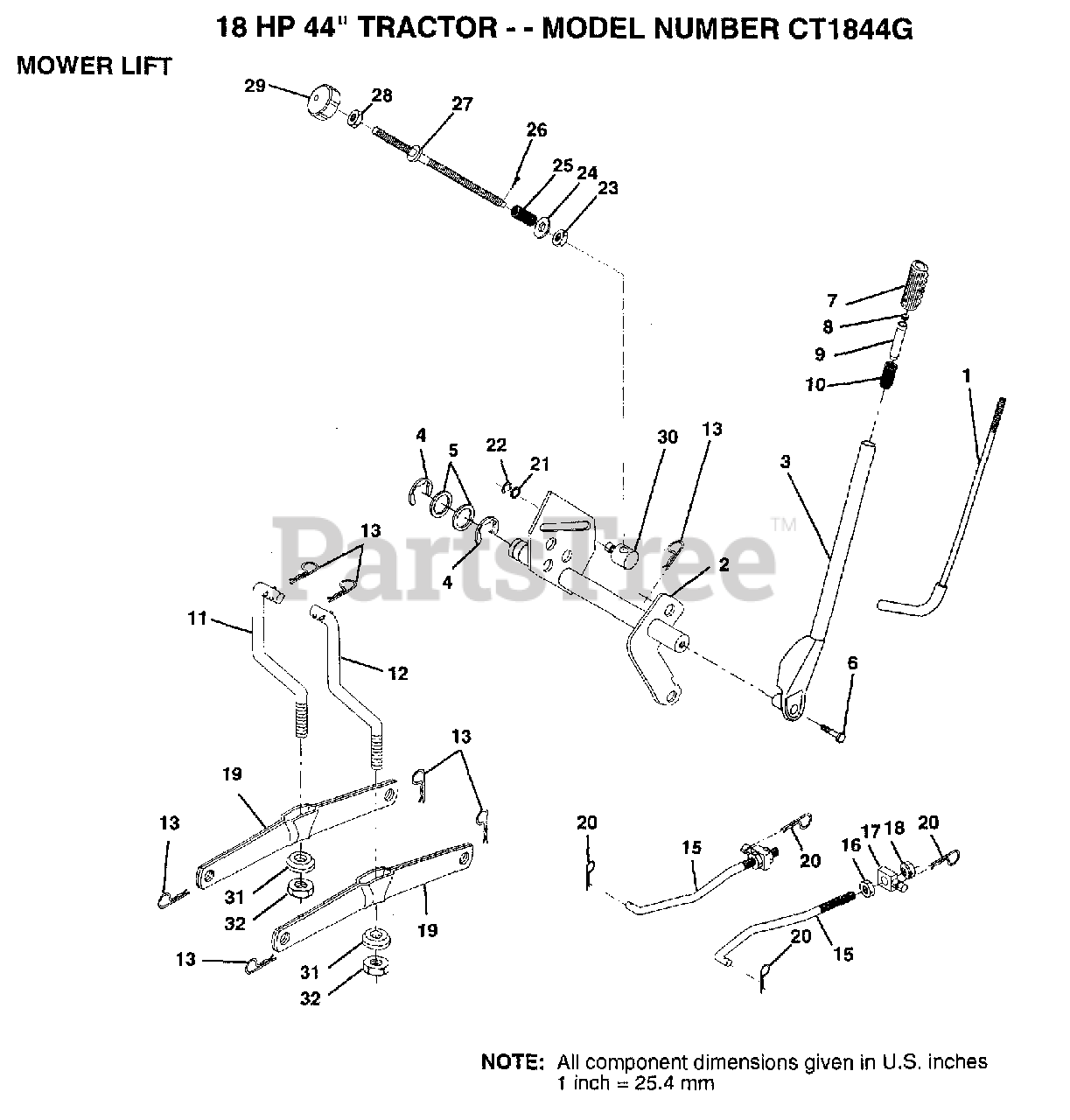

MOWER LIFT Parts Diagram

  • Title
1

Electrolux/AYP 121006X

LEVER ROD LT
(Superseded to 532121006)

$34.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 140673

SHAFT LIFT W/IND

$

$

Not available

3

Electrolux/AYP 121002X

SUB= 123096X

$

$

Not available

4

Electrolux/AYP 12000022

E-RING
(Superseded to 812000022)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 74780624

"BOLT,HEX"
(Superseded to 874780624)

$7.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 124385X

SUB= 125925X

$

$

Not available

9

Electrolux/AYP 122364X

SUB= 125925X
(Superseded to 532122364)

$

$

Not available

10

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 141047

LINK LIFT LH

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 141048

LINK LIFT RH

$

$

Not available

13

Murray 4939M

SUB= 85902

$

$

Not available

15

Electrolux/AYP 127218

LINK.FRONT
(Superseded to 532127218)

$17.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

17

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

19

Electrolux/AYP 139868

ARM SUSP REAR
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

22

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$

$

Not available

24

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

25

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

27

Electrolux/AYP 110729X

ROD LIFT LT
(Superseded to 532110729)

$

$

Not available

28

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 138057

KNOB INF 3/8-16
(Superseded to 532138057)

$8.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 110810X

TRUNION LT
(Superseded to 532110810)

$

$

Not available

31

Electrolux/AYP 140302

BEARING PVT LH
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 73810600

NUT.LOCK.3/8-24
(Superseded to 873810600)

$4.99

$

Usually ships in 3-10 days

0
