CT 1844 F - Electrolux/AYP Lawn Tractor (1993) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

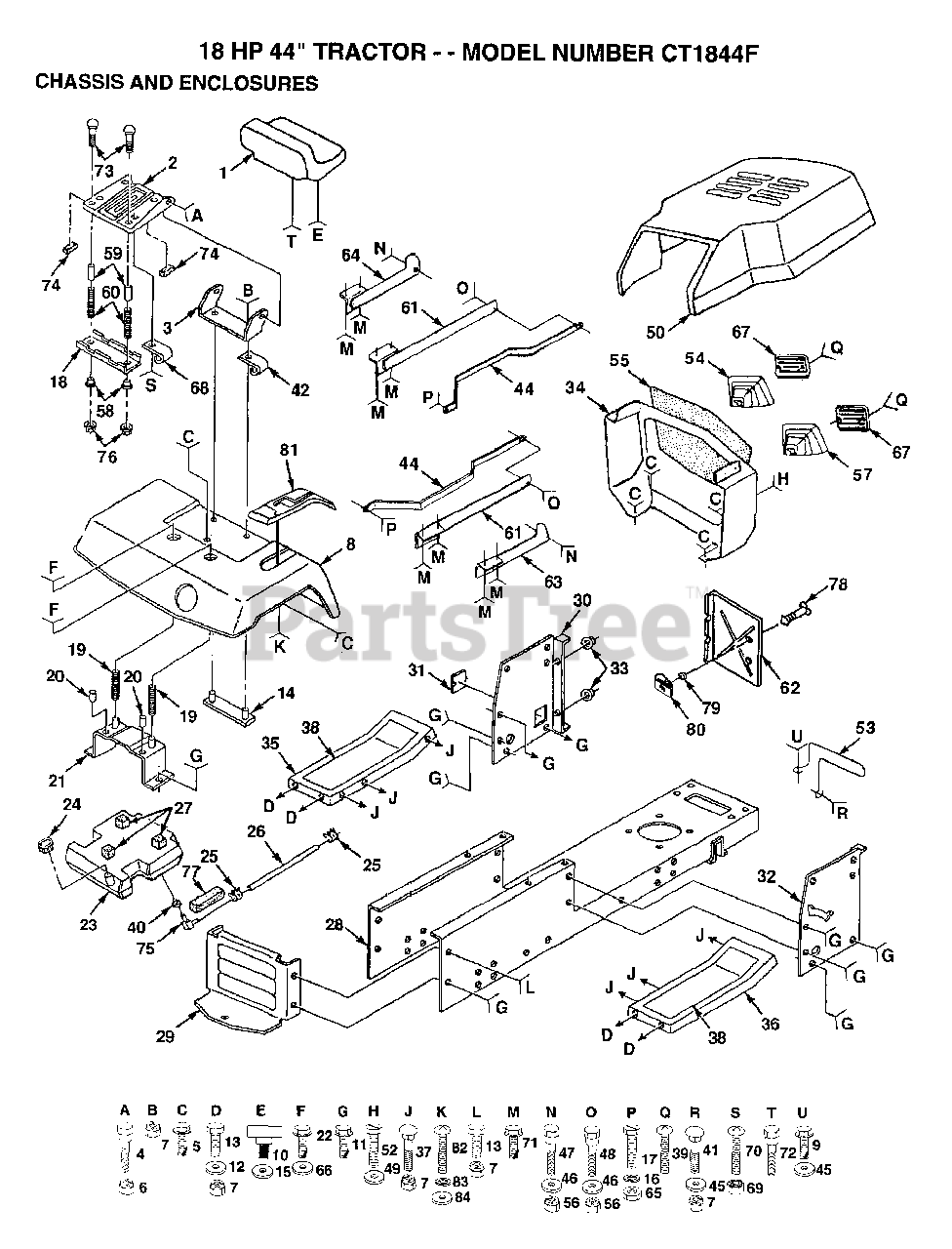

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 127440

SUB= 140121
(Superseded to 532401043)

$

$

Not available

2

Electrolux/AYP 131451

SUB= 155925

$

$

Not available

3

Electrolux/AYP 126656X

SUB= 140551

$

$

Not available

4

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

6

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 123784X419

FENDER
(Superseded to 140002X419)

$103.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

10

Electrolux/AYP 120068X

"KNOB 1/2"" YT"
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 105511X

SUB= 140675

$

$

Not available

15

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

20

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 137113

BRKT.ASM.FENDER
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 127334X

SUB= 151346

$

$

Not available

24

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

26

Electrolux/AYP 7384R

LINE, FUEL

$

$

Not available

27

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

28

Electrolux/AYP 127166X

CHASSIS
(Superseded to 532127166)

$

$

Not available

29

Electrolux/AYP 123785X

DRAW BAR
(Superseded to 532145009)

$

$

Not available

30

Electrolux/AYP 138644

PANEL.DASH.LH

$

$

Not available

31

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

32

Electrolux/AYP 138643

PANEL.DASH.RH

$

$

Not available

33

Electrolux/AYP 110436X

SUB= 9151R

$

$

Not available

34

Electrolux/AYP 5351J419

GRILL T

$

$

Not available

35

Electrolux/AYP 105465X419

SUB= 145244X419

$

$

Not available

36

Electrolux/AYP 105464X419

FOOTREST RH

$5.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 17990808

SCREW

$2.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

44

Electrolux/AYP 109587X

NLA

$

$

Not available

45

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 19090816

WASHER

$2.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 7605J

BOLT T
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 124549X

"BOLT,SHOULDER"

$2.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 8019J

SUB= 19071018

$

$

Not available

50

Electrolux/AYP 3607J366

SUB= 3607J419

$

$

Not available

52

Electrolux/AYP 17511208

SCREW
(Superseded to 582731601)

$2.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 135029

MUFFLER GUARD

$7.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 7606J366

SUB= 7606J361

$

$

Not available

55

Electrolux/AYP 101235L

SCREEN GRILL GTV

$

$

Not available

56

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

57

Electrolux/AYP 7607J366

SUB= 7607J361

$

$

Not available

58

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

60

Electrolux/AYP 123740X

SPRING COMPRESSED
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 677A432

STRAP ASSY-REAR T
(Superseded to 583773401)

$3.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 133746

HEAT SHIELD
(Superseded to 133747)

$

$

Not available

63

Electrolux/AYP 677A876

STRAP ASSY T

$

$

Not available

64

Electrolux/AYP 677A875

STRAP ASSY T

$

$

Not available

65

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

66

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 109671X

LENS T

$

$

Not available

68

Electrolux/AYP 4171R

CLIP T

$

$

Not available

69

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

71

Electrolux/AYP 17411310

SUB= 17521312

$

$

Not available

72

Electrolux/AYP 127018X

"BOLT,SHOULDER"
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 72050411

SUB= 872050411

$

$

Not available

74

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

75

Electrolux/AYP 139277

STEM.TANK.FUEL
(Superseded to 532139277)

$8.99

$

In Stock, Qty 7

0

76

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

77

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

78

Electrolux/AYP 123650X

STUD.1/4.TURN
(Superseded to 532123650)

$6.49

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 105838X

RETAINER LT
(Superseded to 532105838)

$6.49

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 105839X

RECEPTACLE LT
(Superseded to 532105839)

$3.99

$

In Stock, only 1 left!

0

81

Electrolux/AYP 123825X

CONSOLE SHIFTER
(Superseded to 532123825)

$

$

Not available

82

Electrolux/AYP 74640806

SCREW
(Superseded to 874640806)

$4.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 10100800

"WASHER,LOCK"
(Superseded to 810100800)

$3.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 19060718

WASHER
(Superseded to 819060718)

$2.99

$

Usually ships in 3-10 days

0
