CT 1844 B - Electrolux/AYP Lawn Tractor (1992) PEERLESS TRANSAXLE Parts Diagram

Lawn Tractor

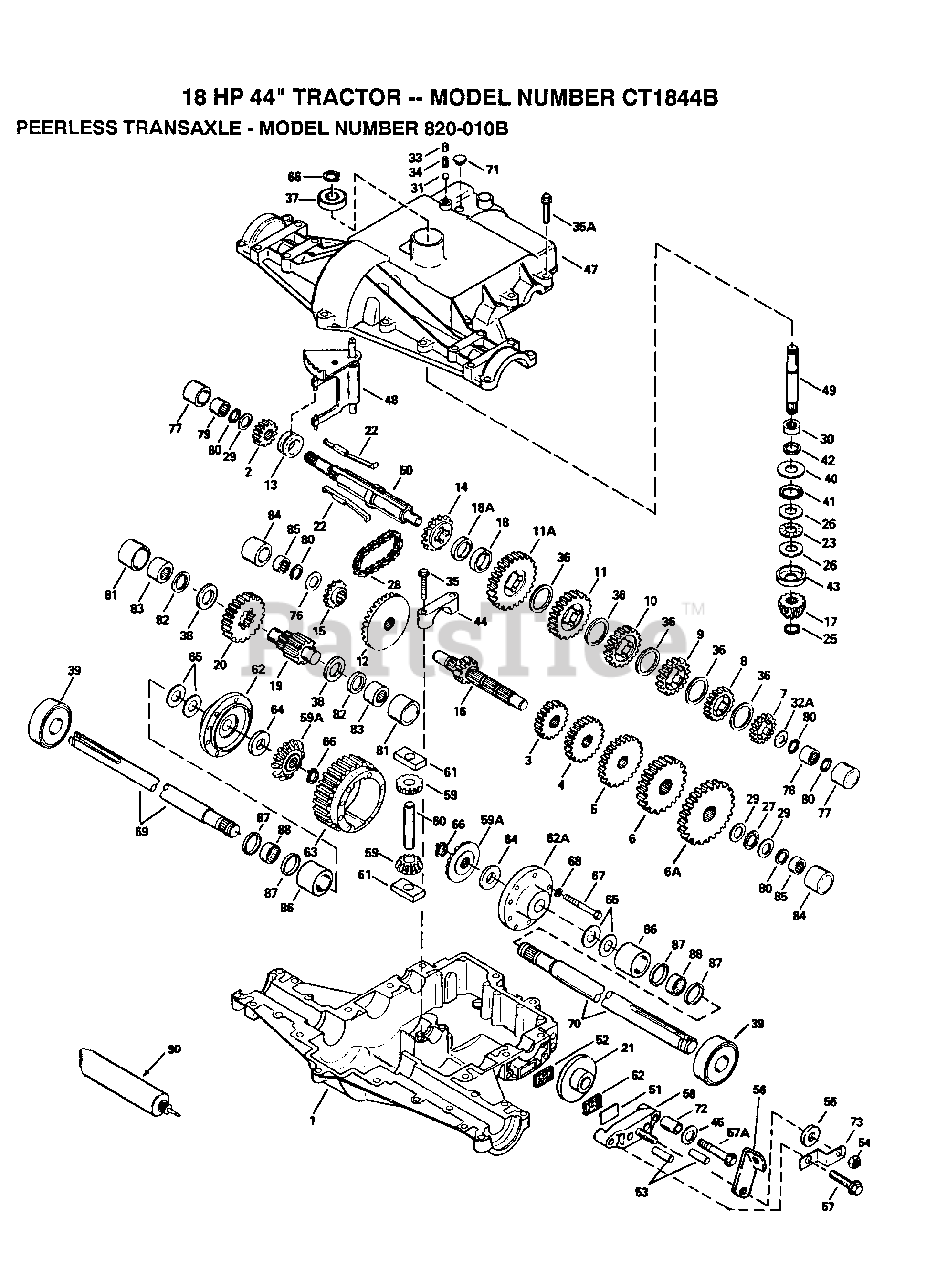

PEERLESS TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 770088

CASE TRANSAXLE

$

$

Not available

2

Electrolux/AYP 778253

GEAR, SPUR, 15T

$

$

Not available

3

Electrolux/AYP 778211

GEAR, SPUR, 12 TEETH

$

$

Not available

4

Electrolux/AYP 778199

GEAR, SPUR, 15T

$

$

Not available

5

Electrolux/AYP 778200

GEAR, SPUR, 20T

$

$

Not available

6

Electrolux/AYP 778202

GEAR, SPUR, 28T

$

$

Not available

6A

Electrolux/AYP 778208

GEAR, SPUR, 31T

$

$

Not available

7

Electrolux/AYP 778209

GEAR, SPUR, 19 TEETH

$

$

Not available

8

Electrolux/AYP 778203A

GEAR, SPUR, 22T

$

$

Not available

9

Electrolux/AYP 778205A

GEAR, SPUR, 30T

$

$

Not available

10

Electrolux/AYP 778206A

GEAR, SPUR, 35T

$

$

Not available

11

Electrolux/AYP 778207A

GEAR, SPUR, 37 TEETH

$

$

Not available

11A

Electrolux/AYP 778216A

GEAR, SPUR, 41T

$

$

Not available

12

Electrolux/AYP 778246

GEAR BEVEL, 33T

$

$

Not available

13

Electrolux/AYP 784216

COLLAR SHIFT

$

$

Not available

14

Electrolux/AYP 786123

SPROCKET 18T (REV)

$

$

Not available

15

Electrolux/AYP 786082

SPROCKET 9T

$

$

Not available

16

Electrolux/AYP 776291

SHAFT COUNTER

$

$

Not available

17

Electrolux/AYP 778245

BEVEL PINION, 13T

$

$

Not available

18

Electrolux/AYP 786121

SPACER, .350/.340 THICK

$

$

Not available

18A

Electrolux/AYP 786122

SPACER, .276/.268 THICK

$

$

Not available

19

Electrolux/AYP 776275

SHAFT, OUTPUT, 9T

$

$

Not available

20

Electrolux/AYP 778247

GEAR, OUTPUT, 35T

$

$

Not available

21

$

$

Not available

$

$

Not available

23

Electrolux/AYP 780084

BEARING THRUST

$

$

Not available

25

Electrolux/AYP 788040

RETAINING RING

$

$

Not available

26

Electrolux/AYP 780051

WASHER THRUST

$

$

Not available

27

Electrolux/AYP 780071

THRUST BEARING

$

$

Not available

28

Electrolux/AYP 786081

CHAIN, ROLLER

$

$

Not available

29

Electrolux/AYP 780072

WASHER THRUST

$

$

Not available

30

Electrolux/AYP 780155

BEARING NEEDLE

$

$

Not available

31

Electrolux/AYP 792077

BALL STEEL, 5/16" DIA.

$

$

Not available

32

Electrolux/AYP A780109

WASHER THRUST

$

$

Not available

33

Electrolux/AYP 792078

SCREW, 3/8-16 X 3/8"

$

$

Not available

$

$

Not available

35

Electrolux/AYP 792073

SCREW, 1/4-20 X 1-1/4

$

$

Not available

35A

Electrolux/AYP 792129

SCREW HEX HD 5/16-18 X 1-1/4

$

$

Not available

36

Electrolux/AYP 780108

WASHER THRUST

$

$

Not available

37

Electrolux/AYP 780119

BEARING BALL

$

$

Not available

38

Electrolux/AYP 780128

WASHER THRUST

$

$

Not available

39

Electrolux/AYP 780050

BEARING BALL

$

$

Not available

$

$

Not available

41

$

$

Not available

42

Electrolux/AYP 788042

OIL SEAL 3/4

$

$

Not available

43

Electrolux/AYP 780166

WASHER CUPPED

$

$

Not available

44

Electrolux/AYP 786131

BEARING CAP

$

$

Not available

45

Electrolux/AYP 792128

WASHER FLAT

$

$

Not available

47

Electrolux/AYP 772098A

COVER TRANSAXLE

$

$

Not available

48

Electrolux/AYP 784342

ROD AND FORK ASSY SHIFT

$

$

Not available

49

Electrolux/AYP 776274

SHAFT INPUT

$

$

Not available

50

Electrolux/AYP 776313

SHAFT BRAKE

$

$

Not available

51

Electrolux/AYP 790007

PLATE BRAKE PAD

$

$

Not available

52

$

$

Not available

53

$

$

Not available

54

Electrolux/AYP 792075

LOCKNUT 5/16-24

$

$

Not available

55

Electrolux/AYP 792076

WASHER, FLAT

$

$

Not available

56

Electrolux/AYP 790047

LEVER BRAKE

$

$

Not available

57

Electrolux/AYP 792073

SCREW, 1/4-20 X 1-1/4

$

$

Not available

57A

Electrolux/AYP 792085

SCREW FLNG HEX 1/4-20 X 2-1/4

$

$

Not available

58

Electrolux/AYP 790025

HOLDER BRAKE PAD

$

$

Not available

59

Electrolux/AYP 778197

PINION, 10T

$

$

Not available

59A

$

$

Not available

60

$

$

Not available

61

Electrolux/AYP 786027

BLOCK DRIVE

$

$

Not available

62

Electrolux/AYP 774833

CARRIER DIFF THREADED HOLES

$

$

Not available

63

Electrolux/AYP 778248

GEAR, RING, 31T

$

$

Not available

$

$

Not available

65

Electrolux/AYP 780042

WASHER THRUST

$

$

Not available

66

$

$

Not available

67

Electrolux/AYP 792020

SCREW, 1/4-20 X 2-1/4

$

$

Not available

68

Electrolux/AYP 792006

WASHER LOCK 1/4

$

$

Not available

69

Electrolux/AYP 774832

AXLE, 12-5/16" LONG

$

$

Not available

70

Electrolux/AYP 774831

AXLE, 16-3/16" LONG

$

$

Not available

71

Electrolux/AYP 792074

PLUG, THRDED, 9/16-18

$

$

Not available

$

$

Not available

73

Electrolux/AYP 786086

BRKT BRAKE LEVER

$

$

Not available

$

$

Not available

$

$

Not available

78

Electrolux/AYP 780150

BEARING NEEDLE

$

$

Not available

79

Electrolux/AYP 780152

BEARING NEEDLE

$

$

Not available

80

$

$

Not available

81

Electrolux/AYP 786142

SLEEVE STEPPED

$

$

Not available

82

Electrolux/AYP 788071

RING SQ CUT

$

$

Not available

83

Electrolux/AYP 780168

BEARING NEEDLE CAPPED

$

$

Not available

84

Electrolux/AYP 786143

SLEEVE STEPPED

$

$

Not available

85

Electrolux/AYP 780151

BEARING NEEDLE CAPPED

$

$

Not available

86

Electrolux/AYP 786145

SLEEVE STEPPED

$

$

Not available

87

Electrolux/AYP 788070

RING SQ CUT

$

$

Not available

88

Electrolux/AYP 780031

BEARING NEEDLE

$

$

Not available

90

Electrolux/AYP 788067B

GREASE BENTONITE, 32 OZ.

$

$

Not available
