CT 1844 A - Electrolux/AYP Lawn Tractor (1991) MOWER Parts Diagram

Lawn Tractor

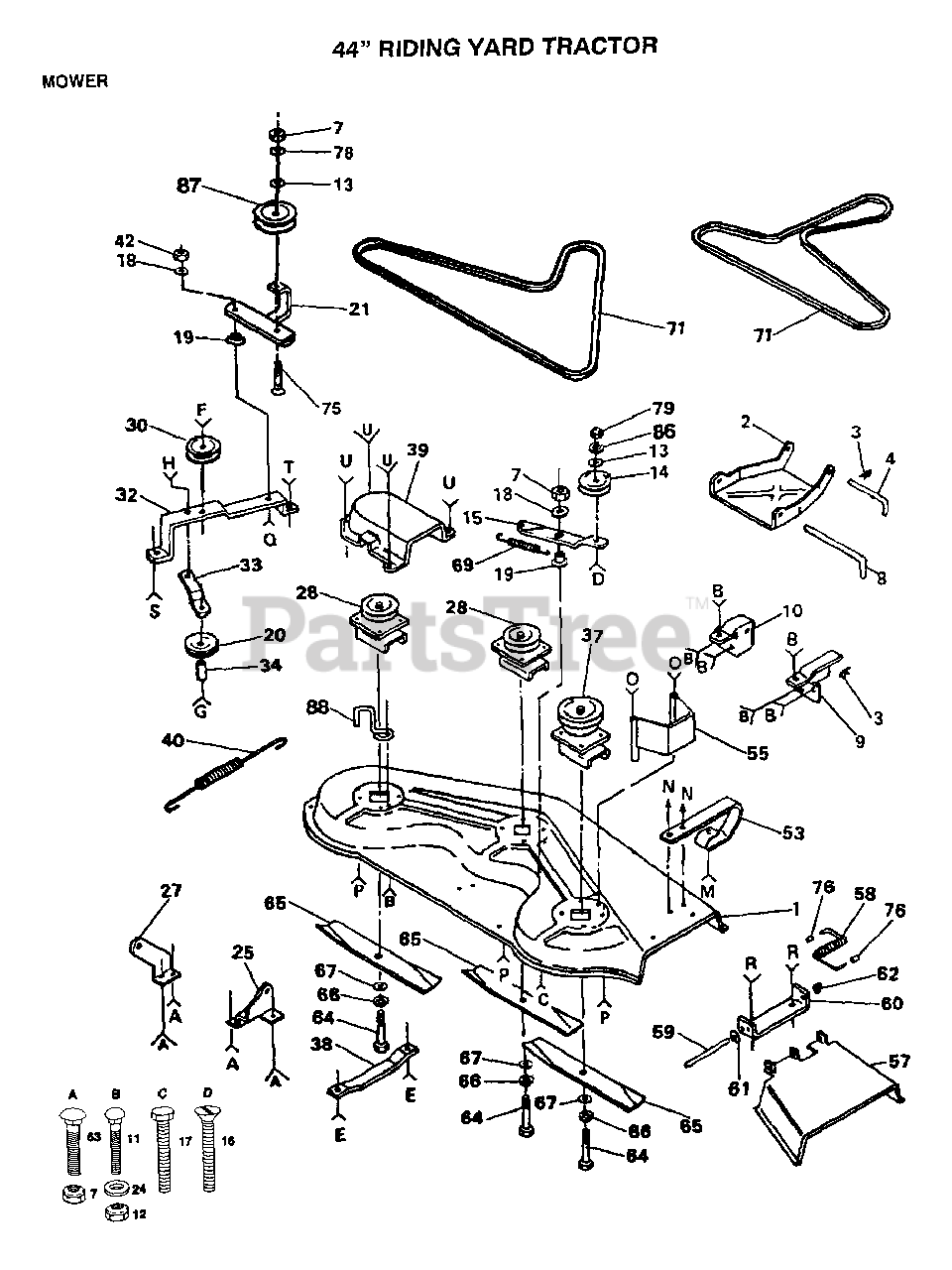

MOWER Parts Diagram

  • Title
1

$

$

Not available

2

Electrolux/AYP 105662X

LINK.PARALLEL
(Superseded to 532105662)

$

$

Not available

3

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 105744X

"ROD, FRT. PARAL T"
(Superseded to 532105744)

$

$

Not available

7

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 109835X

HINGE PIN T
(Superseded to 532109835)

$

$

Not available

9

Electrolux/AYP 106512X

BRACKET RH YT

$

$

Not available

10

Electrolux/AYP 106511X

BRACKET LH YT

$

$

Not available

11

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

12

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

13

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 102932X

IDLER.FLAT.GTV
(Superseded to 532102932)

$30.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 106526X

ARM-IDLER YT
(Superseded to 532106526)

$18.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 74110632

SCREW YT
(Superseded to 874110632)

$

$

Not available

17

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 106513X

"WASHER, WEAR LT"
(Superseded to 532106513)

$6.99

$

In Stock, only 4 left!

0

19

Electrolux/AYP 106902X

SPACER RETAINER
(Superseded to 532106902)

$2.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 102403X

IDLER-FLAT T
(Superseded to 532102403)

$39.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 121425X

ARM IDLER
(Superseded to 532121425)

$

$

Not available

24

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 123807X

BRKT SUSP REAR RH
(Superseded to 532123807)

$

$

Not available

27

Electrolux/AYP 123808X

BRKT SUSP REAR LH

$

$

Not available

28

$

$

Not available

30

Electrolux/AYP 677A451

IDLER-INSIDE T
(Superseded to 532124858)

$

$

Not available

32

Electrolux/AYP 106523X

"SUPPORT YT, BAR"
(Superseded to 532106523)

$

$

Not available

33

Electrolux/AYP 106522X

BRACE-IDLER YT
(Superseded to 532106522)

$2.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

37

Electrolux/AYP 121704X

SUB= 121705X

$

$

Not available

38

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 106214X

GUARD YT
(Superseded to 532106214)

$

$

Not available

40

Electrolux/AYP 102727X

"SPRING.EXT.8.5"""
(Superseded to 532102727)

$

$

Not available

42

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 8418J

SUB= 136321
(Superseded to 532136321)

$

$

Not available

55

Electrolux/AYP 108119X

GUARD BELT HYT
(Superseded to 532108119)

$

$

Not available

57

Electrolux/AYP 109785X

DEFLECTOR SHIELD
(Superseded to 532109785)

$30.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 106734X

SUB= 123713X

$

$

Not available

59

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

60

Electrolux/AYP 109743X

SUB= 137607
(Superseded to 532109743)

$

$

Not available

61

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

62

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

64

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0

65

Electrolux/AYP 106635X

SUB= 25034
(Superseded to 532025034)

$

$

Not available

66

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

67

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

69

$

$

Not available

71

Electrolux/AYP 106085X

BELT-V.79.1.MWR
(Superseded to 532106085)

$43.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 72140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 13

0

76

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

78

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

79

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

86

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 121316X

PULLEY IDLER
(Superseded to 532121316)

$51.99

$

In Stock, only 4 left!

0

88

Electrolux/AYP 121352X

BELT RETIANER
(Superseded to 532121352)

$

$

Not available

Electrolux/AYP 121826X

SUB= 532131508

$

$

Not available

$

$

Not available

Electrolux/AYP 121343X

DECAL WARING

$

$

Not available
