CT 1844 A - Electrolux/AYP Lawn Tractor (1991) DRIVE Parts Diagram

Lawn Tractor

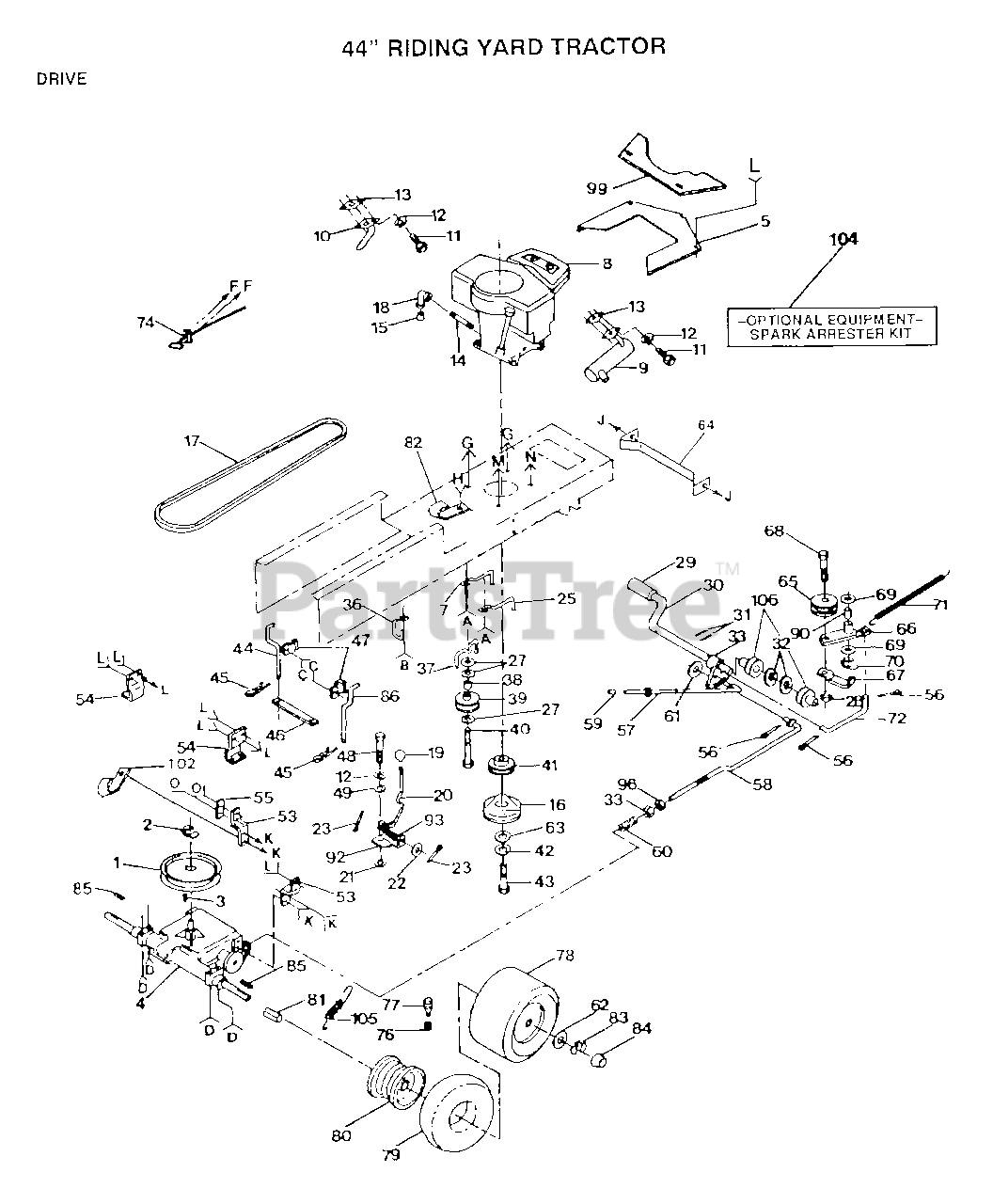

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 121327X

PULLEY TRANSAXLE
(Superseded to 532121327)

$

$

Not available

2

Electrolux/AYP 12000004

RING
(Superseded to 812000004)

$3.99

$

Usually ships in 3-10 days

0

3

Murray 2228M

SUB= 2228M1

$

$

Not available

4

Electrolux/AYP 121326X

TRANSAXLE PEERLESS

$

$

Not available

5

Electrolux/AYP 123190X

SHIELD HEAT FRT

$

$

Not available

7

Electrolux/AYP 121218X

KEEPER BELT ENGLH
(Superseded to 532121218)

$

$

Not available

8

Electrolux/AYP 125860X

ENGINE

$

$

Not available

9

Electrolux/AYP 108373X

MUFFLER HYT

$

$

Not available

10

Electrolux/AYP 100229L

EXHAUST TUBE T

$

$

Not available

11

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

12

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 8545J

SUB= 272250

$

$

Not available

14

Electrolux/AYP 13280328

PIPE NIPPLE
(Superseded to 813280328)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 13300300

COUPLING LT

$

$

Not available

16

Electrolux/AYP 126112X

SUB= 142600

$

$

Not available

17

Electrolux/AYP 123554X

V BELT
(Superseded to 583667901)

$31.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 13240300

STREET ELBOW LT
(Superseded to 813240300)

$7.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 124378X

ROD SHIFTER T
(Superseded to 583669501)

$11.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

23

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 105730X

"KEEPER,BLT ENG LT"
(Superseded to 532105730)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 122424X

SUB= 149001
(Superseded to 532122424)

$

$

Not available

31

Murray 1572H

SUB= 2882J

$

$

Not available

32

Electrolux/AYP 19211616

WASHER LT
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 104777X

SUB= 140312

$

$

Not available

37

Electrolux/AYP 109070X

BELT KEEPER LT
(Superseded to 532109070)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 102932X

IDLER.FLAT.GTV
(Superseded to 532102932)

$30.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 123795X

SUB= 136906

$

$

Not available

42

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 71130768

"BOLT,HEX"

$

$

Not available

44

Electrolux/AYP 122067X

KEEPER BELT

$

$

Not available

45

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

46

Electrolux/AYP 122066X

STRAP LOCATOR

$

$

Not available

47

Electrolux/AYP 106190X

CLAMP LT
(Superseded to 532106190)

$

$

Not available

48

Electrolux/AYP 71040412

SUB= 74550412

$

$

Not available

49

Electrolux/AYP 19091210

WASHER LT
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 122109X

STRAP TORQUE

$

$

Not available

54

Electrolux/AYP 109167X

BRACKET LT
(Superseded to 532109167)

$

$

Not available

55

Electrolux/AYP 106157X

PLATE-STRAP LT

$

$

Not available

56

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

57

Electrolux/AYP 125637X

ROD BRAKE PARK

$3.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 121862X

ROD BRAKE
(Superseded to 583666301)

$28.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 106888X

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

61

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

63

Electrolux/AYP 126197X

WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

64

Electrolux/AYP 109169X

SUB= 109172X

$

$

Not available

62

Electrolux/AYP 123800X

WASHER
(Superseded to 532123800)

$7.49

$

In Stock, only 1 left!

0

65

Electrolux/AYP 123766X

SUB= 139245

$

$

Not available

66

Electrolux/AYP 123789X

ARM IDLER
(Superseded to 532123789)

$

$

Not available

67

Electrolux/AYP 123205X

RETAIN BELT
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 110812X

WASHER LT
(Superseded to 532110812)

$

$

Not available

70

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

71

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 121732X

SUB= 133439

$

$

Not available

76

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

77

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

78

Electrolux/AYP 128702

TIRE REAR T

$120.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 7152J

TUBE.18X9.5-8
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 106108X311

SUB= 106108X427

$

$

Not available

81

Electrolux/AYP 108097X

SPACER HYT
(Superseded to 532108097)

$6.49

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 12000053

E RING HYT
(Superseded to 812000053)

$7.49

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

85

Electrolux/AYP 9396E

SQ KEY STD
(Superseded to 532009396)

$3.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 122068X

KEEPER BELT

$

$

Not available

90

Electrolux/AYP 105706X

"LY, BEARING"
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 106919X

PLATE SHIFT LT
(Superseded to 532106919)

$

$

Not available

93

Electrolux/AYP 105700X

SPRING LT
(Superseded to 532105700)

$

$

Not available

96

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

99

Electrolux/AYP 109740X

REAR BAFFLE T

$

$

Not available

102

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

104

Electrolux/AYP 100091M

SUB= 132922

$

$

Not available

105

Electrolux/AYP 110422X

SUB= 146682

$

$

Not available

106

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

Electrolux/AYP 128213

DECAL.ENG.27208

$8.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 121120X

DECAL

$

$

Not available
