CT 160 (954170020-D) - Husqvarna Lawn Tractor (2001-01) STEERING Parts Diagram

Lawn Tractor

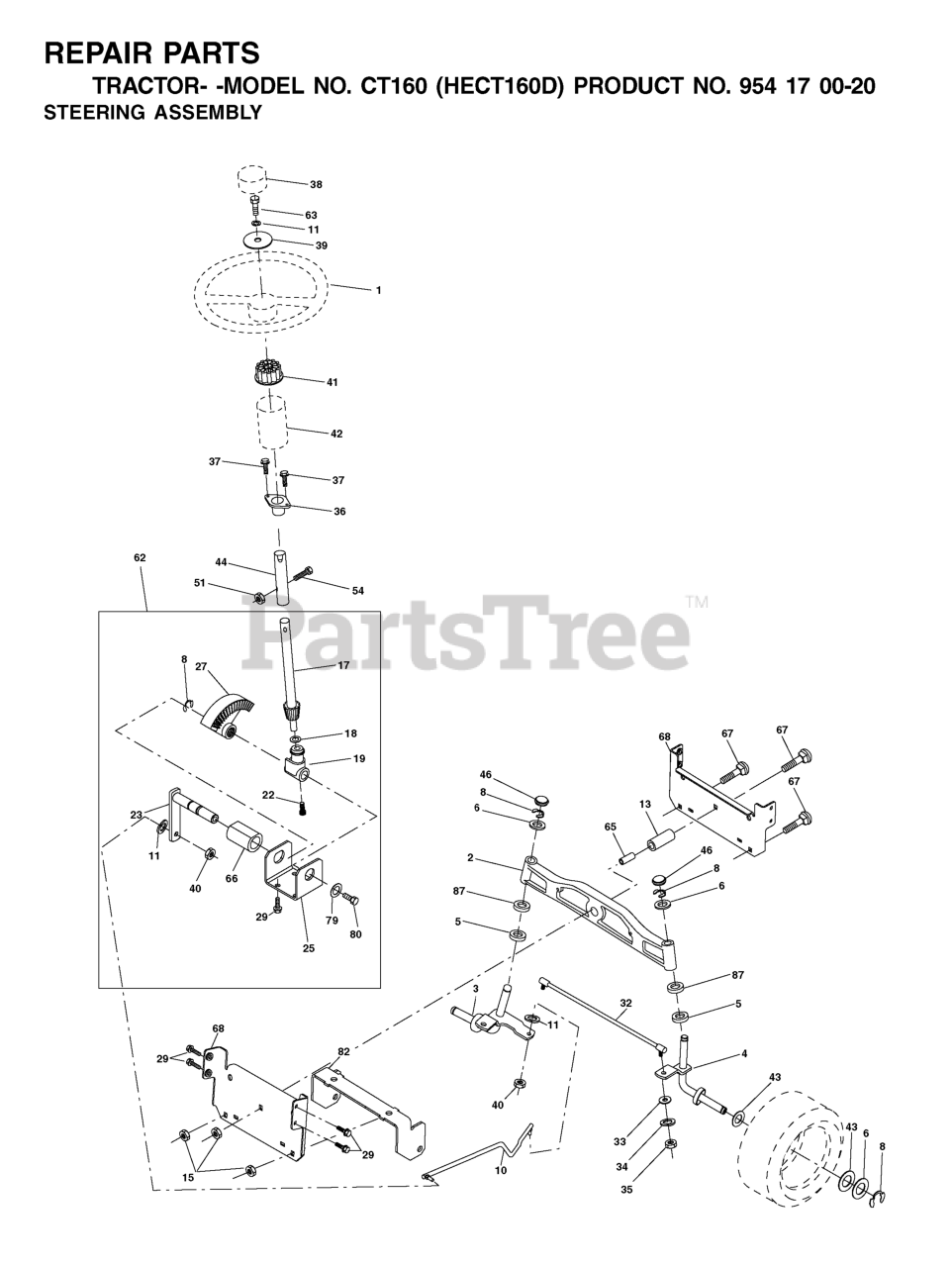

STEERING Parts Diagram

  • Title
37

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

82

Husqvarna 532169835

BRACKET
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532160367

SPACER BRACE AXLE
(Superseded to 532414736)

$6.99

$

In Stock, Qty 5

0

3

Husqvarna 532169840

SPINDLE.ASM.LH.15"TIRES
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

79

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

19

Husqvarna 532160395

STEERING SHAFT SUPPORT

$10.99

$

In Stock, Qty 8

0

67

Husqvarna 872140618

BOLT
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

44

Husqvarna 532153720

EXT SHAFT STEERING
(Superseded to 532153721)

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532169839

SPINDLE.ASM.RH.15"TIRES
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

38

Husqvarna 532166626

CAP.WHEEL.STEERING.GREY
(Superseded to 532172092)

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532165851

SHAFT ASSY PITTMAN

$22.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532169634

BOOT STEERING
(Superseded to 532145054)

$

$

Not available

8

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 819132411

Washer 13/32 x 1-1/20 x 11 Gauge

$

$

Not available

33

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

17

Husqvarna 532156546

SHAFT ASM STEERING
(Superseded to 531166901)

$49.99

$

In Stock, only 4 left!

0

36

Husqvarna 532155099

BUSHING, STEERING
(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

25

Husqvarna 532154406

BRACKET STEERING

$8.99

$

In Stock, only 1 left!

0

$3.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532169827

BRACE.AXLE.15"TIRES

$21.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532173966

WASHER, FLAT .781 X 1 1/2"

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 873540500

NUT, CROWNLOCK

$7.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532159945

STEERING WHEEL ADAPTOR

$

$

Not available

29

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

54

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

2

Husqvarna 532172393

AXLE ASM
(Superseded to 532193542)

$169.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532170162

ROD.ASM.TIE.BALL.JOINT.NOVAN

$93.99

$

In Stock, only 4 left!

0

13

Husqvarna 532136518

TUBE, PIVOT AXLE

$9.99

$

In Stock, only 1 left!

0

10

Husqvarna 532169832

DRAGLINK.15".TIRES

$80.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532124701

GRIPCO NUT
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532167902

STEERING KIT
(Superseded to 584371701)

$136.99

$

In Stock, only 1 left!

0

22

Husqvarna 532165857

SCREW.HX.WSH.HD

$6.49

$

In Stock, only 4 left!

0

27

Husqvarna 532136874

GEAR.SECTOR

$80.99

$

In Stock, only 1 left!

0

66

Husqvarna 532154404

BEARING ARM

$6.49

$

In Stock, only 3 left!

0

18

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

80

Husqvarna 874950612

BOLT.HX.NYLON3/8-16X

$6.49

$

In Stock, only 3 left!

0

1

Husqvarna 532166627

STEERING WHEEL
(Superseded to 532159944)

$

$

Not available
