CT 160 (954170020-A) - Husqvarna Lawn Tractor (2000-02) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

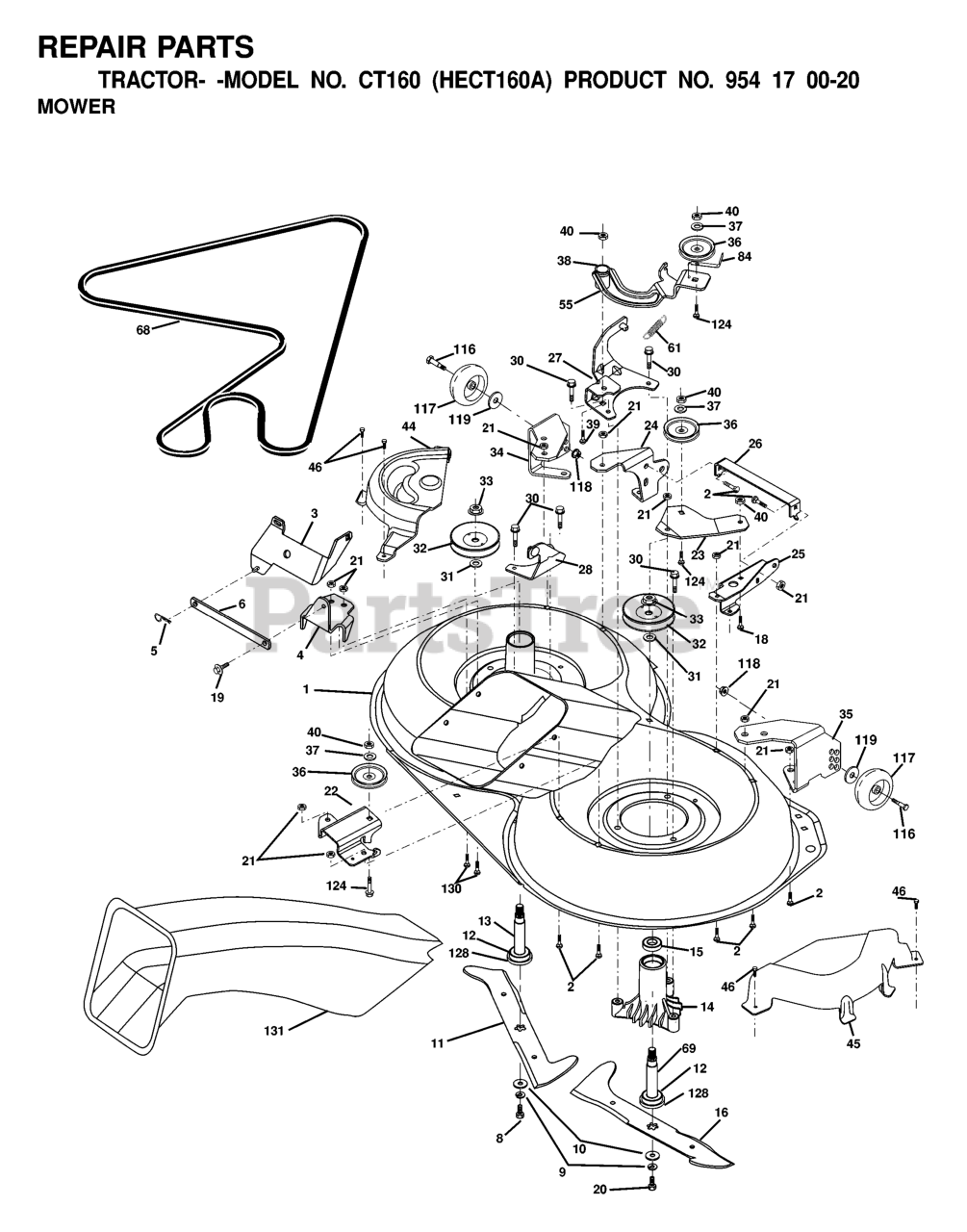

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532168720

BLADE - LH (CTH150)
(Superseded to 532180583)

$36.99

$

In Stock, only 1 left!

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

35

$

$

Not available

45

Husqvarna 532169179

MANDREL COVER RH
(Superseded to 532175539)

$21.99

$

Usually ships in 3-10 days

0

--

Husqvarna 532165579

MANDREL ASM.CRD RH 6PT STAR

$91.99

$

Usually ships in 3-10 days

0

$

$

Not available

$4.99

$

In Stock, Qty 10

0

130

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

61

Husqvarna 532165945

SPRING.TENSION.BELT

$14.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 10

0

24

$

$

Not available

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

128

Husqvarna 532153390

WASHER FELT

$6.49

$

In Stock, only 3 left!

0

1

Husqvarna 532169160

Housing Asm. Mower 107 CRD

$

$

Not available

40

$3.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

15

$13.99

$

In Stock, Qty 11

0

26

Husqvarna 532165237

BRACE.SUPT.SUSP.FRT.CRD
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532165557

BAR.SWAY.92.CRD

$

$

Not available

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532169171

BRACKET.SUSPENSION.RF.107.CRD

$30.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-10 days

0

124

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532169165

BRACKET.IDLER.RR.107.CRD

$

$

Not available

$

$

Not available

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

34

Husqvarna 532169174

BRACKET
(Superseded to 583258801)

$26.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532146763

PULLEY.IDLER.4.25

$

$

Not available

--

Husqvarna 532170273

DECK SVC. COMP.

$

$

Not available

158

Husqvarna 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

55

Husqvarna 532169849

ARM.IDLER.107.CRD

$34.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$68.99

$

Usually ships in 3-10 days

0

23

$26.99

$

Usually ships in 3-10 days

0

27

$28.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

116

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

$

$

Not available

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$11.99

$

In Stock, Qty 20+

0

18

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

In Stock, only 1 left!

0

44

Husqvarna 532169180

Cover Mandrel Lh 107 CRD

$

$

Not available

--

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$56.99

$

In Stock, only 2 left!

0

28

Husqvarna 532169168

BRACKET
(Superseded to 583029401)

$27.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

131

Husqvarna 532165661

CHUTE BAGGER

$93.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

68

Husqvarna 532169178

HEX-BELT 107 MOWER
(Superseded to 584897001)

$74.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532168721

BLADE - RH (CTH150)
(Superseded to 532180584)

$72.99

$

In Stock, only 1 left!

0

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0
