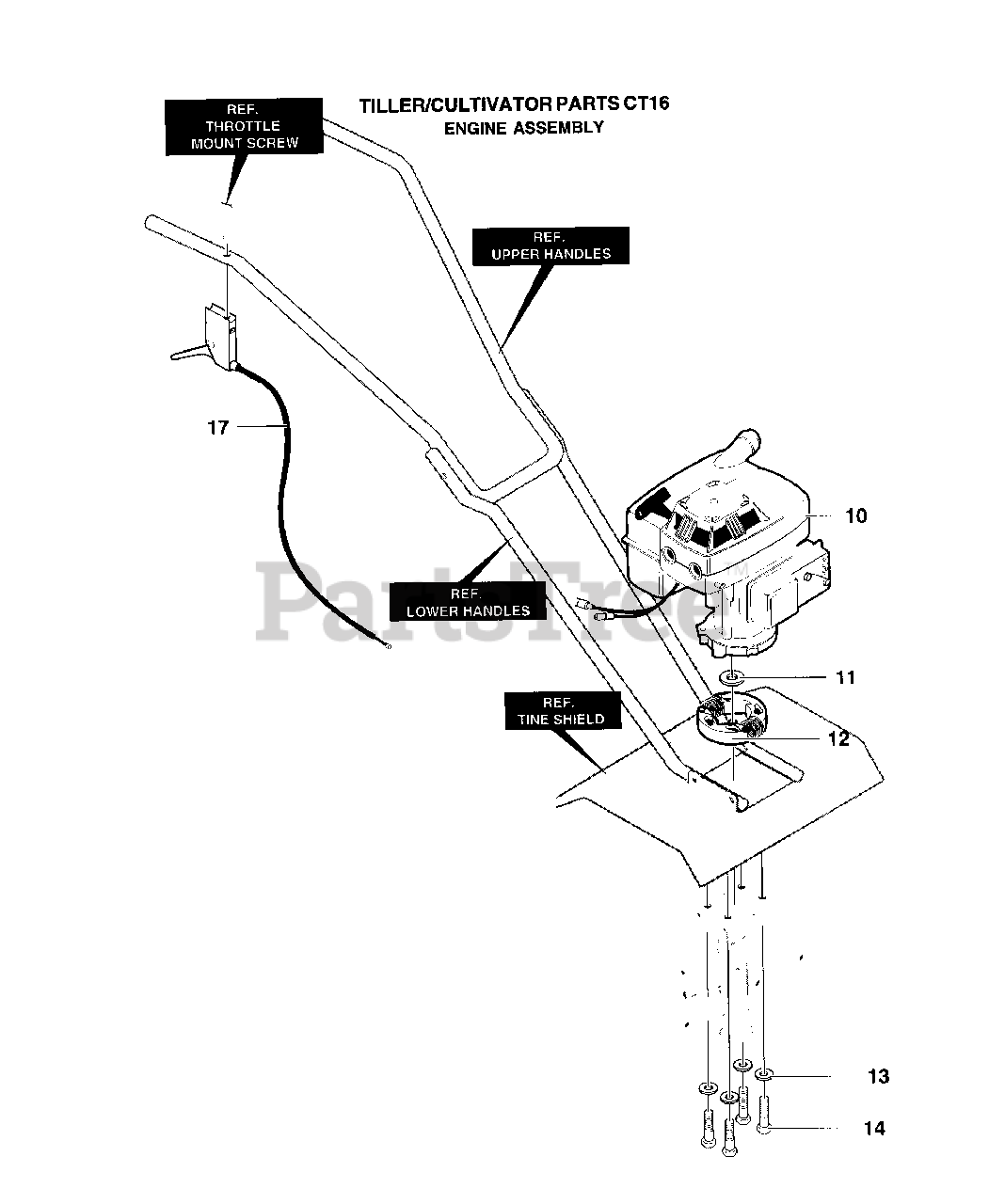

CT 16 - Husqvarna Cultivator (1997-11) Engine Assembly Parts Diagram

Cultivator

Engine Assembly Parts Diagram

  • Title
10

ENGINE,1.6TEC

Note: (See Engine Manual)

$

$

Not available

11

Husqvarna 601000617

WASHER, FLAT .378X1.25X.06

$

$

Not available

12

Husqvarna 601001950

ROTOR (SMALLER DIA.)

$

$

Not available

13

Husqvarna 601000014

WASHER, REGSPTLK.263X.49X.07

$

$

Not available

14

Husqvarna 601001283

SCREW, 1/4-20X1.75 HHC

$

$

Not available

17

Husqvarna 601001284

CABLE, THROTTLE, CULTIVATOR

$

$

Not available

Husqvarna 601002255

MANUAL,OWNERS

$

$

Not available
