CT 151 (960610180-06) - Husqvarna Lawn Tractor (2008-09) ENGINE Parts Diagram

Lawn Tractor

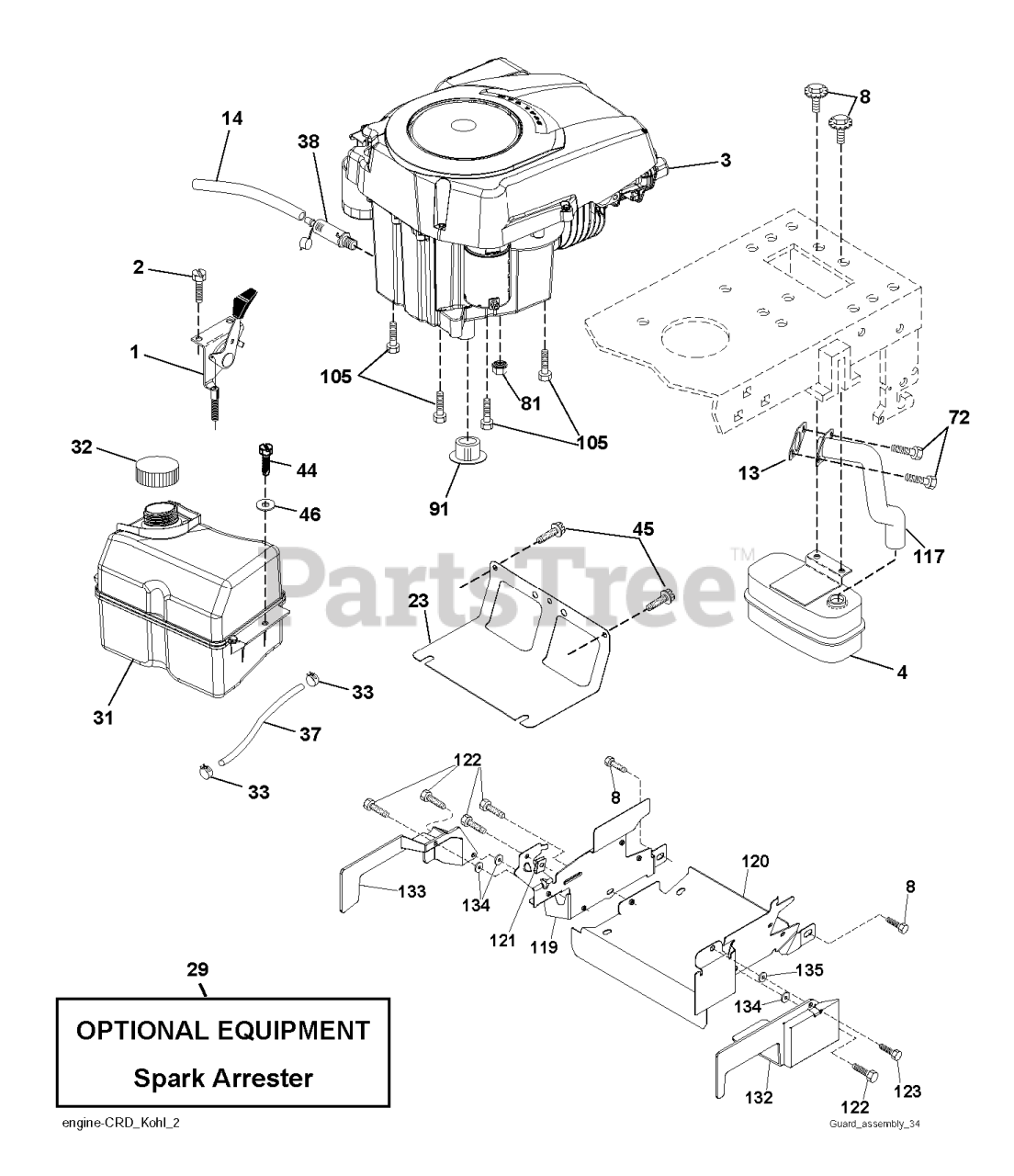

ENGINE Parts Diagram

  • Title
37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

$4.99

$

In Stock, only 3 left!

0

31

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, only 1 left!

0

2

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

133

Husqvarna 532420756

SHIELD LEFT
(Superseded to 583383201)

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

123

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

132

Husqvarna 532420757

SHIELD RIGHT
(Superseded to 583383301)

$9.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 17

0

122

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

134

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

120

Husqvarna 532199767

GUARD 532199767
(Superseded to 583254201)

$36.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$45.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

135

Husqvarna 532423063

WASHER 5/16"
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532180857

DISCHARGE BAFFLE
(Superseded to 532176041)

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

38

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

13

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$34.99

$

In Stock, only 1 left!

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 6

0

119

Husqvarna 532199768

LENKRAD
(Superseded to 583254301)

$21.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

3

NEEDS DESCRIPTION

Note: Engine Kohler SV470

$

$

Not available
