CT 151 (954170207-A) - Husqvarna Lawn Tractor (2004-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

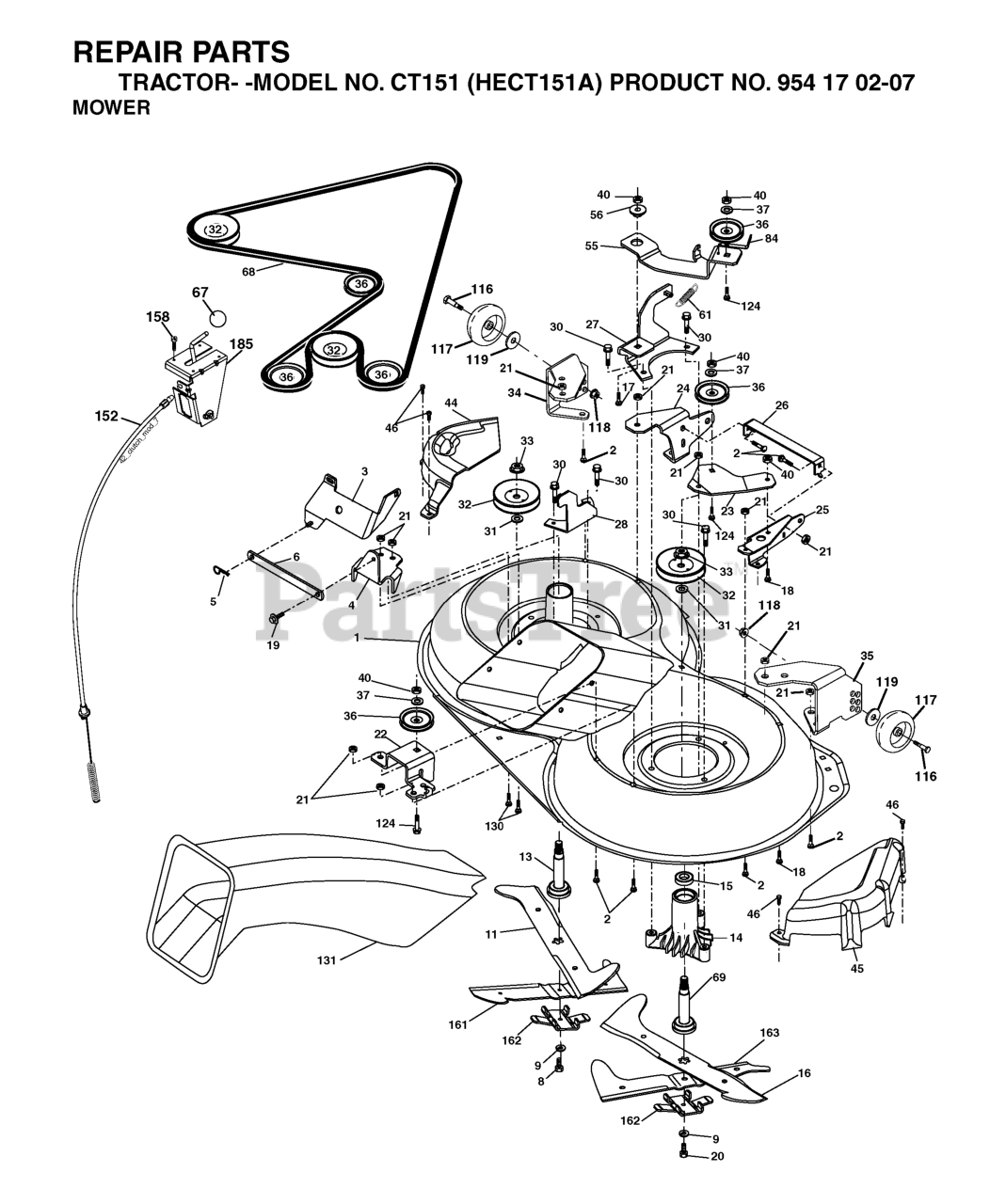

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

15

$13.99

$

In Stock, Qty 14

0

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

40

$3.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

116

Husqvarna 532184219

SHOULDER BOLT
(Superseded to 532193406)

$5.99

$

In Stock, Qty 20+

0

--

Husqvarna 532181857

BEARING HOUSING
(Superseded to 583118201)

$91.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

27

$27.99

$

Usually ships in 3-10 days

0

24

$

$

Not available

$

$

Not available

--

Husqvarna 532188523

NEEDS DESCRIPTION

$

$

Not available

34

$

$

Not available

61

Husqvarna 532165945

SPRING.TENSION.BELT

$14.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532165237

BRACE.SUPT.SUSP.FRT.CRD
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

$

$

Not available

68

Husqvarna 532180217

HEX-BELT
(Superseded to 532402008)

$91.99

$

Usually ships in 3-10 days

0

124

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532186385

NEEDS DESCRIPTION

$

$

Not available

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

23

$

$

Not available

84

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

$

$

Not available

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

--

Husqvarna 532181858

BEARING HOUSING
(Superseded to 583118301)

$96.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532146763

PULLEY.IDLER.4.25

$

$

Not available

161

Husqvarna 532186387

NEEDS DESCRIPTION

$

$

Not available

158

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

55

$

$

Not available

25

$

$

Not available

44

Husqvarna 532175538

NEEDS DESCRIPTION

$

$

Not available

6

Husqvarna 532165557

BAR.SWAY.92.CRD

$

$

Not available

8

Husqvarna 532181712

BOLT.3/8-24X1.25 GR8
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532186386

NEEDS DESCRIPTION

$

$

Not available

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 2 left!

0

28

$

$

Not available

130

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

185

Husqvarna 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

In Stock, only 1 left!

0

69

Husqvarna 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$68.99

$

Usually ships in 3-10 days

0

35

$

$

Not available

17

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

20

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

$

$

Not available

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532175539

COVER.MANDREL.RH.CRD

$21.99

$

Usually ships in 3-10 days

0

22

$

$

Not available

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

67

Husqvarna 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

1

Husqvarna 532165552

MOWER HOUSING, DECK
(Superseded to 532176029)

$262.99

$

Usually ships in 3-10 days

0

131

Husqvarna 532165661

CHUTE BAGGER

$93.99

$

Usually ships in 3-10 days

0

163

Husqvarna 532186388

NEEDS DESCRIPTION

$

$

Not available

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0
