CT 150 (954170019-B) - Husqvarna 42" Lawn Tractor (2000-01) Seat Assembly Parts Diagram

42" Lawn Tractor

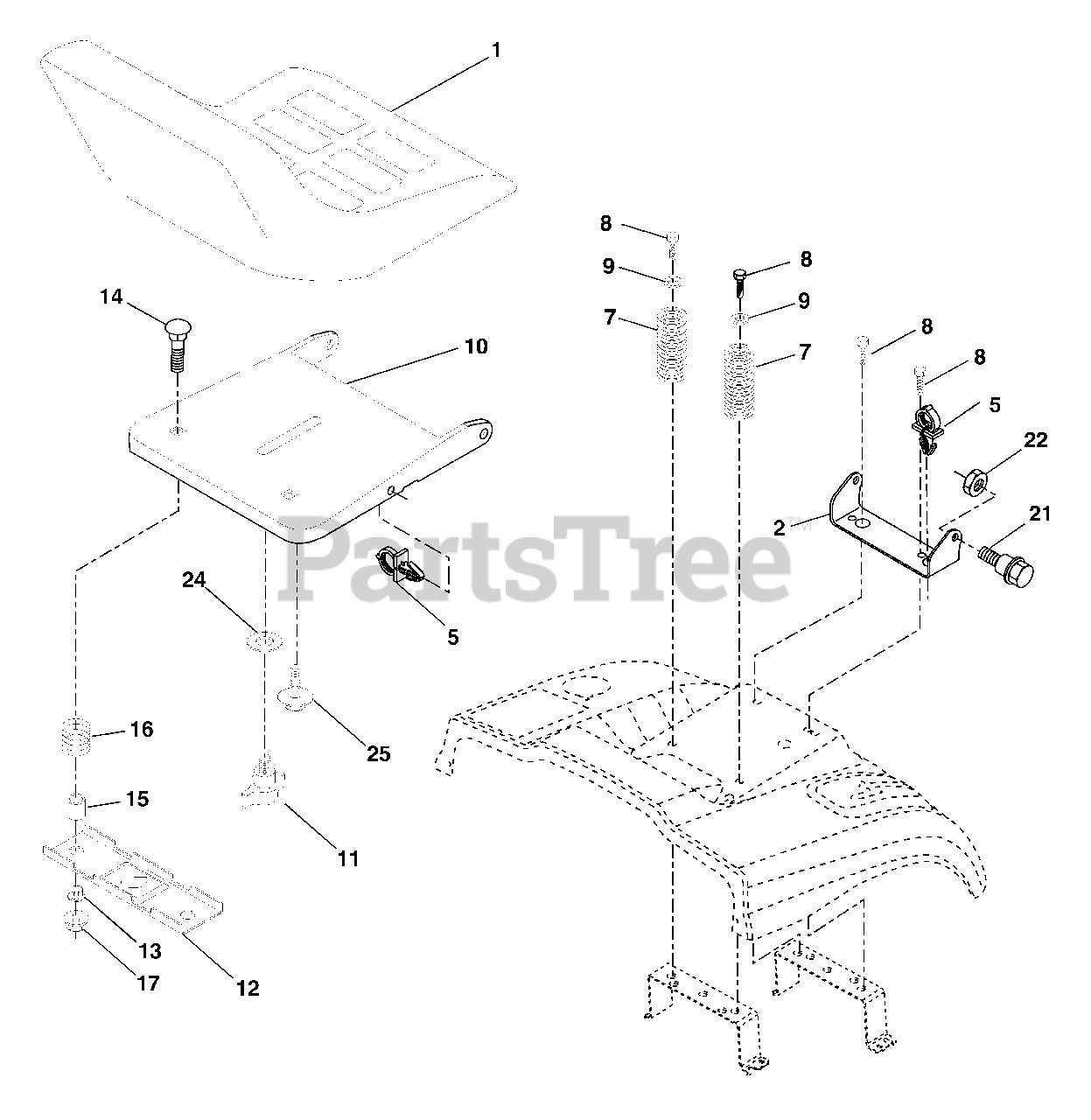

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 532140839

Seat
(Superseded to 532439699)

$206.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532140551

Bracket Pnt Pivot Seat (blk)

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

Clip Push In Hinged

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 817060616

Screw 3/8-16 X 1-1/2
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 819131614

Washer 13/32 X 1 X 14 Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532155925

Pan Pnt Seat (blk)
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532166369

Knob Seat Adj. Wingnut

$10.99

$

In Stock, only 1 left!

0

12

Husqvarna 532121246

Bracket Pnt Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

Bushing Snap Blk Nyl 50 Id

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050412

Bolt Rdhd Sht Nk 1/4-20x1-1/2

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532134300

Spacer Split

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532121250

Spring Cprsn Plate SW 1.310 Ga

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Nut Lock 1/4 Lge Flg Gr 5 Zinc
(Superseded to 873900400)

$4.99

$

In Stock, Qty 18

0

21

Husqvarna 532153236

Bolt Shoulder 5/16-18 Unc-2A
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

22

Husqvarna 873800500

Nut Hex Lock w/Ins 5/16-18

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171612

Washer 17/32 X 1 X 12 Ga.
(Superseded to 734117801)

$

$

Not available

25

Husqvarna 532127018

Bolt Shoulder 5/16-18 X 62

$7.49

$

Usually ships in 3-10 days

0
