CT 14542 F - Electrolux/AYP Lawn Tractor (1998) DANA TRANSAXLE Parts Diagram

Lawn Tractor

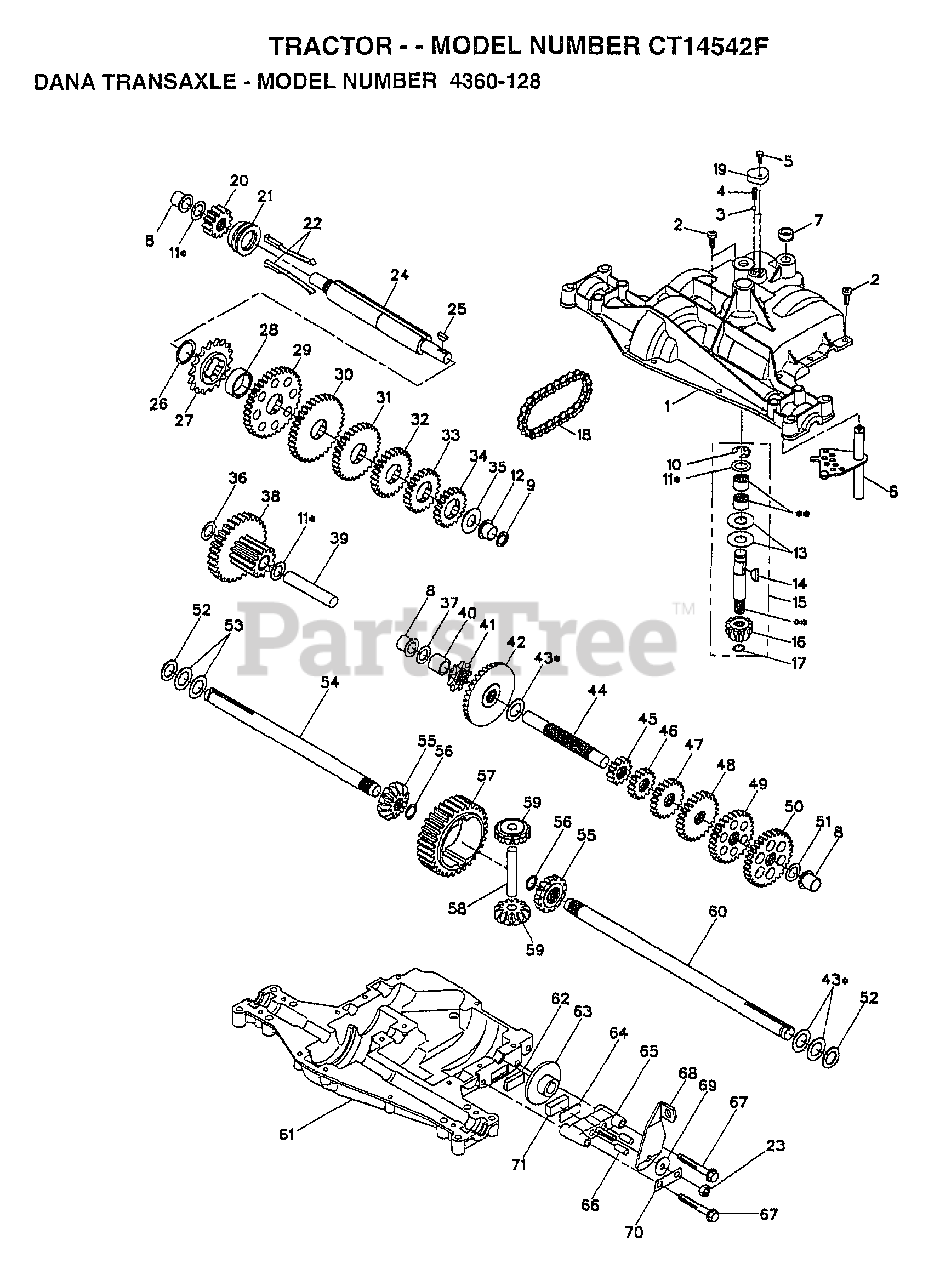

DANA TRANSAXLE Parts Diagram

  • Title

1

Electrolux/AYP 160955

HOUSING.UPPER(5305-P)
(Superseded to 583048401)

$

$

Not available

2

Electrolux/AYP 2274J

SUB= 74760412

$

$

Not available

3

Electrolux/AYP 134400

SUB= 68003

$

$

Not available

4

Electrolux/AYP 105904X

"SPRING, DETENT LT"
(Superseded to 583647001)

$

$

Not available

5

Electrolux/AYP 160940

SCREW.TAPPING.1/4-20X.734

$

$

Not available

6

Electrolux/AYP 138235

KIT SHIFTER ASM
(Superseded to 532134788)

$

$

Not available

7

Electrolux/AYP 108727X

SUB= 108776X
(Superseded to 583655601)

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 148266

SUB= 105911X
(Superseded to 105911X)

$

$

Not available

9

Electrolux/AYP 148269

SEAL.OIL.DAN.5508
(Superseded to 582972401)

$

$

Not available

10

Electrolux/AYP 2225J

RETAINING RING LT
(Superseded to 812000002)

$7.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 134793

ASM KIT SHIM 4689
(Superseded to 532134793)

$

$

Not available

12

Electrolux/AYP 148268

BEARING.FLNG.5511
(Superseded to 532148268)

$

$

Not available

13

Electrolux/AYP 120415X

WASHER T
(Superseded to 532120415)

$2.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 142674

KEY WOODRUFF-DANA
(Superseded to 532142674)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 161563

INPUT SHAFT KIT 6250
(Superseded to 167148)

$

$

Not available

16

Electrolux/AYP 161564

PINION.BEVEL.12T(5620)
(Superseded to 583002901)

$

$

Not available

17

Electrolux/AYP 105909X

"RING,RETAINING LT"
(Superseded to 583647301)

$5.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 105910X

"CHAIN,24 PTCH LT"
(Superseded to 532105910)

$

$

Not available

19

Electrolux/AYP 160942

COVER.DETENT.(5584)
(Superseded to 582996501)

$13.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 160943

GEAR.SPUR.12T.(5627)
(Superseded to 582996601)

$

$

Not available

21

Electrolux/AYP 148267

CLUTCH.COL.5467
(Superseded to 582954101)

$36.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 138236

ASM KIT CLTCH KEY
(Superseded to 532138236)

$

$

Not available

23

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 142676

SHAFT INTERM DANA
(Superseded to 532143673)

$207.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 2244J

WOODRUFF KEY

$

$

Not available

26

Electrolux/AYP 105916X

"RING,RETAINING LT"
(Superseded to 532105916)

$2.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 120470X

SPROCKET 18T T
(Superseded to 532120470)

$

$

Not available

28

Electrolux/AYP 110070X

SPACER YT
(Superseded to 583658801)

$7.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 142677

GEAR SPUR 37 TTH
(Superseded to 582959701)

$35.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 142681

GEAR SPUR 35 TTH
(Superseded to 582959901)

$42.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 124644X

GEAR SPUR 30T
(Superseded to 583670301)

$66.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 108980X

GEAR 25T LT
(Superseded to 583656801)

$46.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 120406X

GEAR SPUR 22 TT
(Superseded to 583662001)

$26.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 134796

SPUR GEAR 19T
(Superseded to 584444901)

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 105925X

"WASHER, PLAIN LT"
(Superseded to 583647501)

$

$

Not available

36

Electrolux/AYP 2228J

WASHER 045
(Superseded to 583729101)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 2231J

WASHER 031
(Superseded to 583729401)

$3.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 160944

ASSY.GEAR.6153 12T&30T

$88.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 124639X

SHAFT IDLER
(Superseded to 532124639)

$36.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 120472X

SPACER T
(Superseded to 583663001)

$6.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 105928X

SPROCKET 9T LT
(Superseded to 532105928)

$

$

Not available

42

Electrolux/AYP 161565

GEAR.BEVEL.36T(5621)
(Superseded to 583197101)

$

$

Not available

43

Electrolux/AYP 134394

ASM KIT SHIM
(Superseded to 532134394)

$

$

Not available

44

Electrolux/AYP 120473X

SHAFT T
(Superseded to 583663101)

$

$

Not available

45

Electrolux/AYP 142678

GEAR SPUR 12 TTH
(Superseded to 582959801)

$10.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 143697

SUB= 148305

$

$

Not available

47

Electrolux/AYP 124641X

GEAR SPUR 20T
(Superseded to 583670201)

$21.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 106589X

"GEAR, SPUR 25T LT"
(Superseded to 583651701)

$33.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 120408X

GEAR 28T T
(Superseded to 583662101)

$47.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 105937X

"GEAR, SPUR 31T LT"

$38.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 2226J

WASHER 060
(Superseded to 583728901)

$

$

Not available

52

Electrolux/AYP 134401

NEOPRENE WASHER
(Superseded to 532134401)

$

$

Not available

53

Electrolux/AYP 2264J

WASHER 031
(Superseded to 583729701)

$4.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 160946

AXLE.LH(5528-1)
(Superseded to 582996801)

$103.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 160947

MITER 5270 12T.SPLINED
(Superseded to 582996901)

$26.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 160948

RING.RETAINING.(5270)
(Superseded to 582997001)

$7.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 110071X

SUB= 120478X

$

$

Not available

58

Electrolux/AYP 120952X

SHAFT T
(Superseded to 583663901)

$17.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 160949

MITER 5623.12T.IDLER
(Superseded to 582997101)

$

$

Not available

60

Electrolux/AYP 160950

AXLE.RH.(5528-2) DANA
(Superseded to 582997201)

$122.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 160951

HOUSING.KIT (6088)
(Superseded to 582997301)

$236.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 120961X

PUCK T
(Superseded to 532120961)

$

$

Not available

63

Electrolux/AYP 7294J

BRAKE DISC. T
(Superseded to 532007294)

$

$

Not available

64

Electrolux/AYP 108989X

SPACER LT
(Superseded to 532108989)

$

$

Not available

65

Electrolux/AYP 160952

JAW, BRAKE

$

$

Not available

66

Electrolux/AYP 120954X

PIN T
(Superseded to 532120954)

$

$

Not available

67

Electrolux/AYP 160953

SCREW.(5562) .5/16-18X2.35
(Superseded to 532160953)

$8.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 138244

SUB= 108992X
(Superseded to 532108992)

$

$

Not available

69

Electrolux/AYP 108996X

WASHER LT
(Superseded to 583657101)

$6.99

$

In Stock, Qty 9

0

70

Electrolux/AYP 160954

BRACKET, ANTI-ROTATION

$

$

Not available

71

Electrolux/AYP 120951X

PUCK T
(Superseded to 532120951)

$

$

Not available

72

Electrolux/AYP 120416X

SUB= 126976X

$

$

Not available
