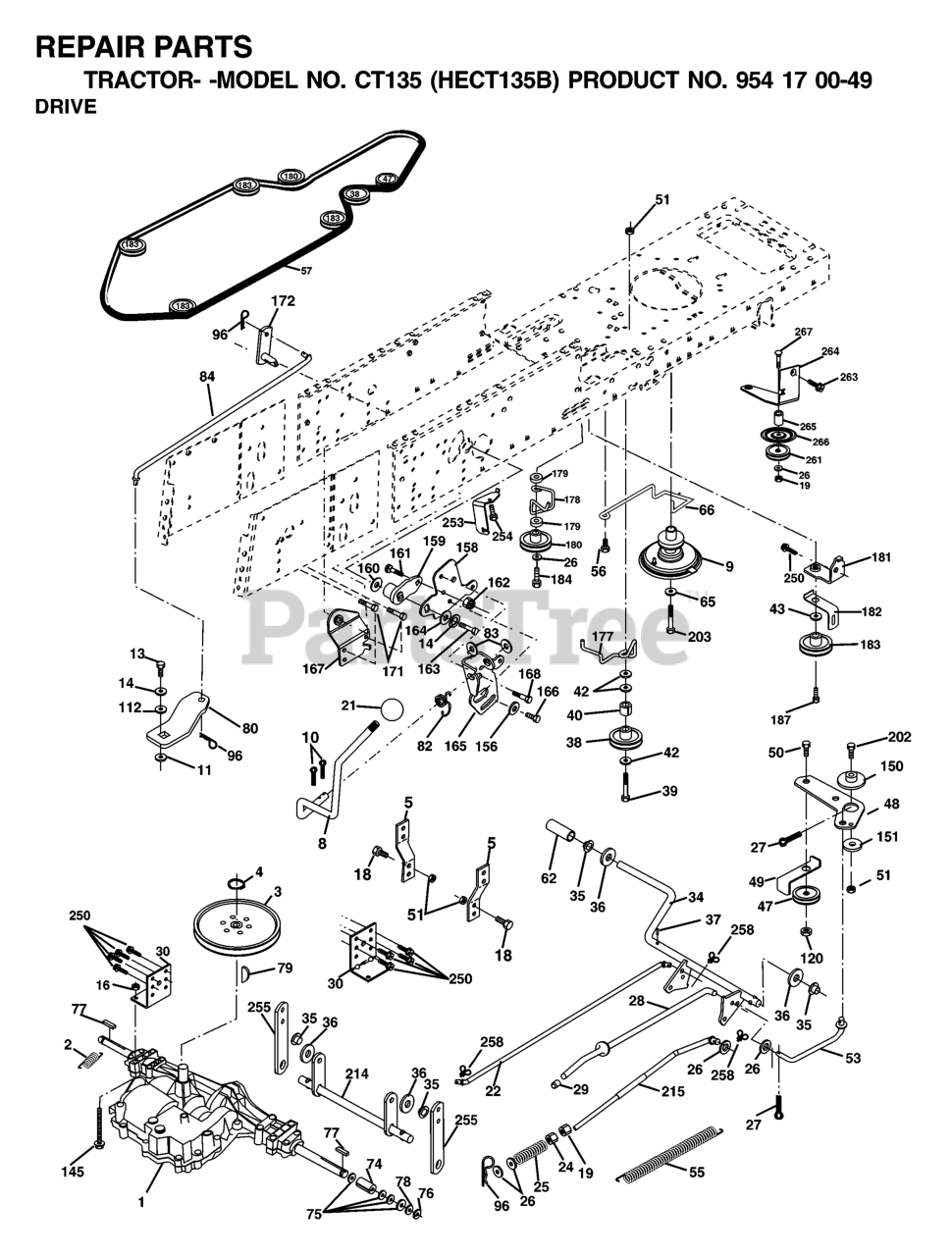

CT 135 (954170049-B) - Husqvarna Lawn Tractor (2002-03) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

250

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 2 left!

0

76

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

177

$7.99

$

Usually ships in 3-10 days

0

43

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532165631

V-BELT.KEV.111"

$84.99

$

In Stock, only 2 left!

0

11

Husqvarna 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532121520

STRAP TORQUE

$7.99

$

In Stock, only 3 left!

0

215

Husqvarna 532175651

NEEDS DESCRIPTION

$

$

Not available

265

Husqvarna 532182013

SPACER IDLER

$18.99

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532165634

KEEPER BELT
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

34

Husqvarna 532175578

SHAFT, FOOT PEDAL

$31.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

203

Husqvarna 871170780

BOLT.HEX.7/16-20 X 5
(Superseded to 583789701)

$9.49

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

184

Husqvarna 817490644

SCREW.HXWSH.3/8

$

$

Not available

181

Husqvarna 532180211

BRACKET
(Superseded to 583099101)

$5.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532165936

PULLEY.FLAT

$31.99

$

In Stock, only 1 left!

0

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

79

Husqvarna 532125096

KEY STD (1373) DANA

$9.49

$

In Stock, only 1 left!

0

55

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 2 left!

0

22

Husqvarna 532175607

ROD
(Superseded to 583070201)

$27.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

51

$3.99

$

Usually ships in 3-10 days

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

$4.99

$

In Stock, Qty 20+

0

180

Husqvarna 532165630

PULLEY.FLAT.IDLER

$34.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532175609

LEVER
(Superseded to 583070401)

$11.99

$

Usually ships in 3-10 days

0

80

$7.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

187

Husqvarna 817580520

BOLT.5/16-18X1.25

$4.99

$

In Stock, only 3 left!

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

$33.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532165619

ROD.SHIFT.FENDER.ADJ.LT.CRD

$

$

Not available

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

74

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

171

$6.49

$

Usually ships in 3-10 days

0

40

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

178

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

202

Husqvarna 872110619

NEEDS DESCRIPTION

$

$

Currently unavailable

160

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga.

$7.99

$

Usually ships in 3-10 days

0

156

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

159

Husqvarna 532165494

HUB
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532165588

BRACKET.SUPT.SHIFT.CRD

$20.99

$

Usually ships in 3-10 days

0

267

Husqvarna 872140626

NEEDS DESCRIPTION

$

$

Not available

$

$

Not available

3

Husqvarna 532165999

PULLEY
(Superseded to 584450701)

$60.99

$

Usually ships in 3-10 days

0

254

Husqvarna 817060616

SCREW THDROL 3/8-16 X 1-1/2
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

164

Husqvarna 819091010

Washer 5/8 x .281 x 10 Ga.

$

$

Not available

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532165711

SHIFT SPRING

$7.49

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

261

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

255

Husqvarna 532175608

SHAFT
(Superseded to 583070301)

$2.99

$

Usually ships in 3-10 days

0

264

Husqvarna 532181995

NEEDS DESCRIPTION

$

$

Not available

36

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 8

0

112

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

258

Husqvarna 532178062

CLIP RETAINER

$4.99

$

In Stock, only 1 left!

0

150

Husqvarna 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 532180354

RP CLUTCH.NORAM.2002
(Superseded to 582219701)

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

266

Husqvarna 532182061

PROTECTOR
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

120

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

$6.49

$

Usually ships in 3-10 days

0

172

Husqvarna 532165635

SHAFT
(Superseded to 584324101)

$14.99

$

Usually ships in 3-10 days

0

263

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

179

$

$

Not available

267

Husqvarna 872110626

BOLT.SS.CARR.3/8-16X3.25.GR5

$

$

Not available

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532179050

NEEDS DESCRIPTION

$

$

Not available

28

Husqvarna 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

165

Husqvarna 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532174973

BRKT, MOUNT TRNSAXLE
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0
