CT 131 (960610303-00) - Husqvarna Lawn Tractor (2010-02) ENGINE Parts Diagram

Lawn Tractor

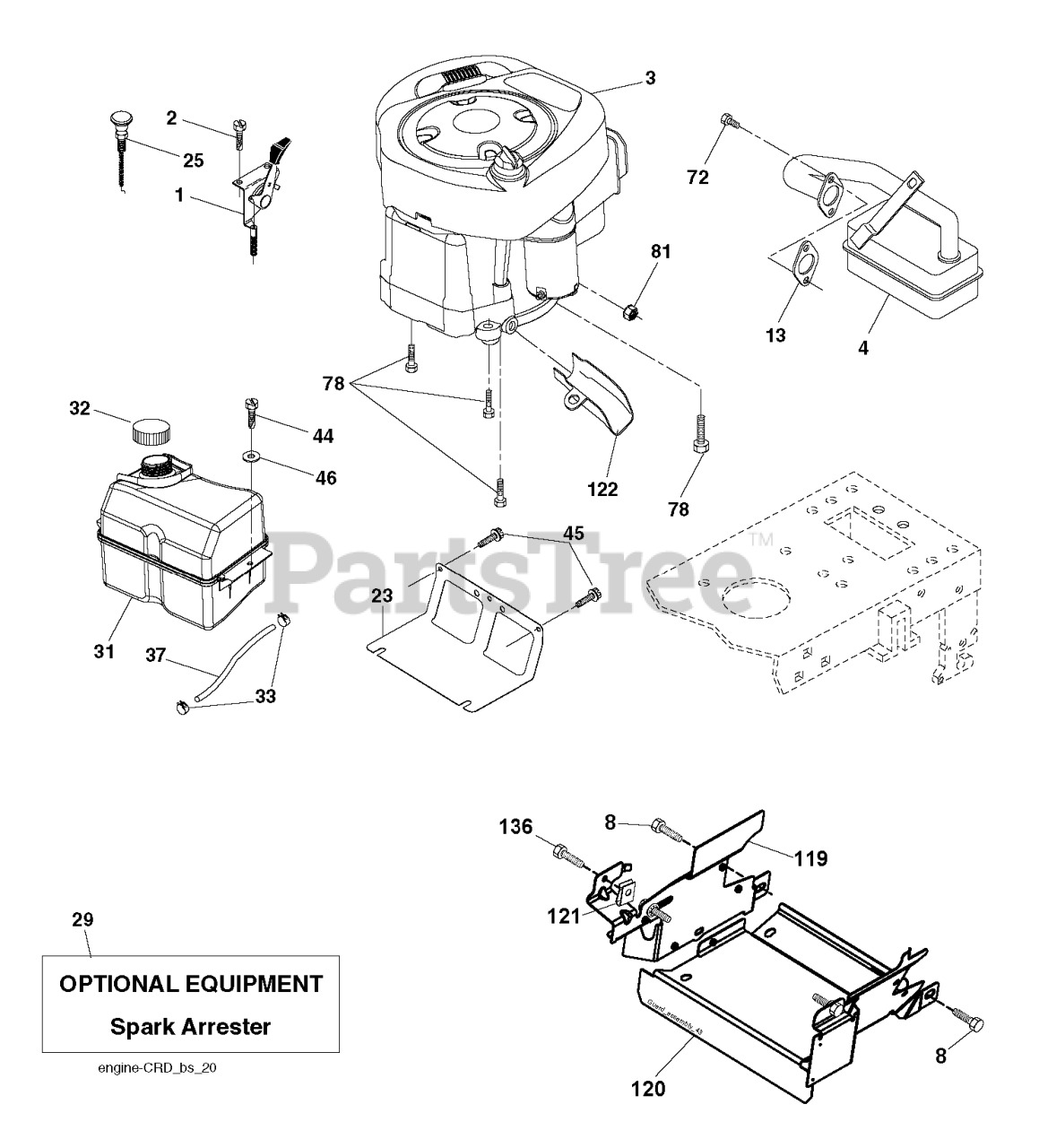

ENGINE Parts Diagram

  • Title

120

Husqvarna 532199767

GUARD 532199767
(Superseded to 583254201)

$36.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 14

0

136

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532190695

KNOB.ERGO.EXTENDED.RED (1 2)

$2.99

$

Usually ships in 3-10 days

0

78

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532179758

MUFFLER.B&S.MODEL.21.11HP.OHV

$51.99

$

In Stock, Qty 20+

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$22.99

$

Usually ships in 3-10 days

0

121

Husqvarna 532196688

CLIPS

$4.99

$

In Stock, only 3 left!

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 18

0

46

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532430825

TANK.ASM.FRNT.DAPCO.E10
(Superseded to 581289901)

$87.99

$

In Stock, Qty 12

0

1

Husqvarna 532170551

CONTROL.THROTTLE/CHOKE.BLACK

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

3

000000000

Note: B&S Model 219807-0380-B1

$

$

Not available

72

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

119

Husqvarna 532199768

LENKRAD
(Superseded to 583254301)

$21.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 11

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 20+

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0
