CT 131 (960610223-01) - Husqvarna Lawn Tractor (2008-11) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

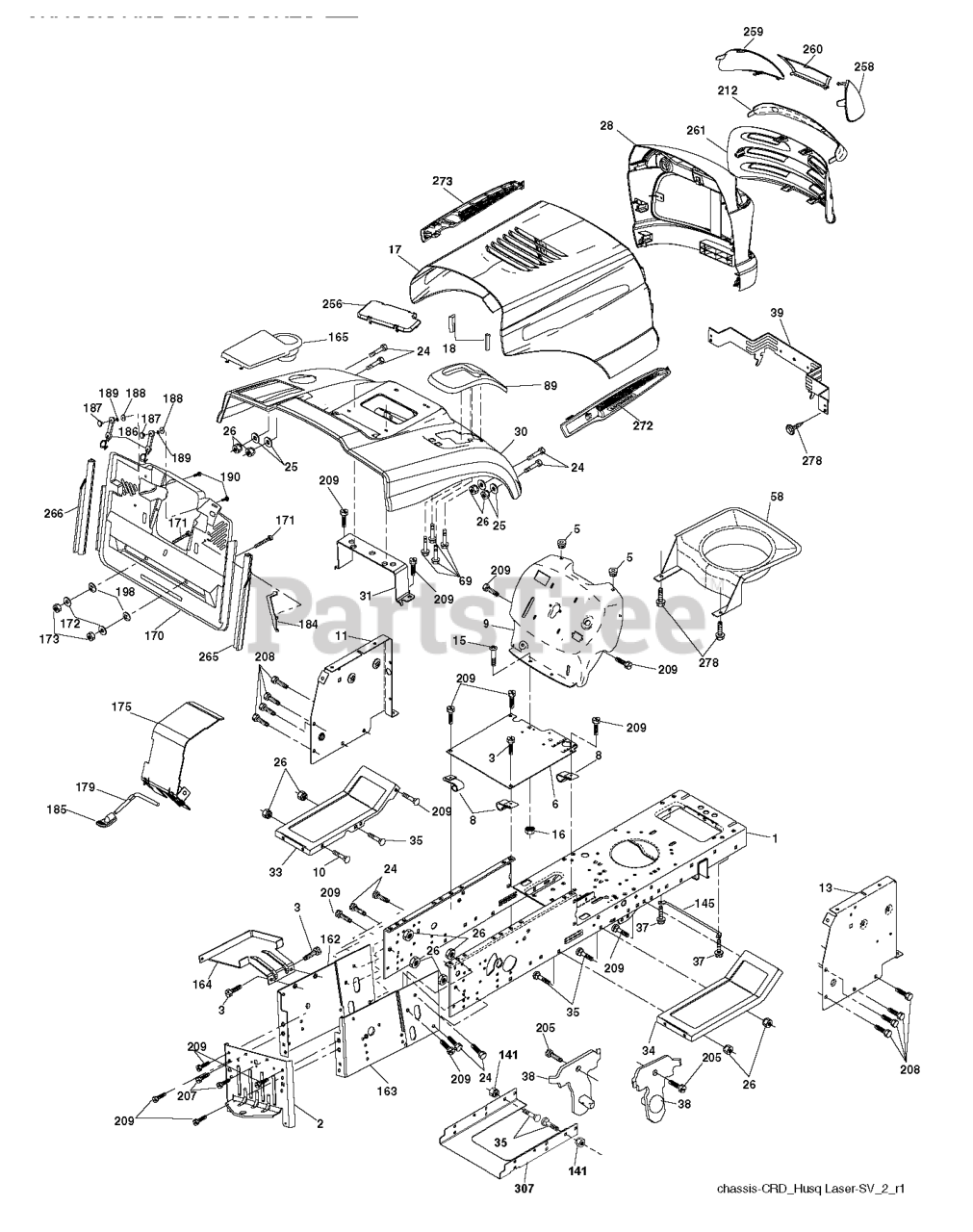

CHASSIS & ENCLOSURES Parts Diagram

  • Title

273

Husqvarna 532188895

VENT.HOOD.LASER.

$11.99

$

Usually ships in 3-10 days

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532199488

$

$

Not available

256

Husqvarna 532181361

COVER FENDER CRD
(Superseded to 532197364)

$133.99

$

Usually ships in 3-10 days

0

272

Husqvarna 532188896

VENT.HOOD.LASER.

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532172106

PANEL ASM, DASH RH

$18.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532180382

BRACKET
(Superseded to 583100801)

$47.99

$

Usually ships in 3-10 days

0

307

Husqvarna 532420919

NEEDS DESCRIPTION

$

$

Not available

145

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

278

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

205

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

265

Husqvarna 532185704

SEALING
(Superseded to 583146701)

$21.99

$

Usually ships in 3-10 days

0

172

Husqvarna 819132016

WASHER
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532165156

BRACKET SUPPORT FENDER

$

$

Not available

186

532160793

LATCH ASSY

$

$

Not available

34

Husqvarna 532179717

FOOTREST, RH
(Superseded to 532442579)

$

$

Not available

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

187

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 532174620

CHASSIS

$136.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532197339

CONSOLE.CRD.6SP.BLACK

$14.99

$

Usually ships in 3-10 days

0

190

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

141

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

179

Husqvarna 532188202

ROD PIVOT FBI
(Superseded to 583170601)

$27.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

164

Husqvarna 532165605

SUPPORT

$

$

Not available

212

Husqvarna 532183548

INSERT.LENS.REFLECTIVE

$

$

Not available

173

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532179716

FOOTREST.PNT.LH.BLACK
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

259

Husqvarna 532185213

LENS LH
(Superseded to 532183378)

$10.99

$

In Stock, only 1 left!

0

198

Husqvarna 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180384

DRAWBAR
(Superseded to 583101001)

$

$

Not available

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

171

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

163

Husqvarna 532180383

BRACKET EXTEN CHASSIS RH CRD
(Superseded to 583100901)

$42.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874180512

Screw, Machine, Truss Head 5/16-18 UNC x 3/4

$

$

Not available

18

Husqvarna 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532188893

VENT.HOOD.LASER.III
(Superseded to 588251301)

$47.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532184419

PLATE
(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

260

Husqvarna 532185216

COVER.LENS.HUSQ.LASER
(Superseded to 532442202)

$13.99

$

In Stock, only 1 left!

0

11

Husqvarna 532174996

PANEL.DASH.LH.LTX

$

$

Not available

258

Husqvarna 532185214

LENS LH
(Superseded to 532183379)

$10.99

$

In Stock, only 2 left!

0

35

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532184270

$

$

Not available

9

Husqvarna 532194688

DASH.SLK.LT.PL.CC.NA.NHM.CE
(Superseded to 532194672)

$28.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532183538

Note: Grille/Lens Asm (Includes Key Nos. 212, 258 - 261)

$

$

Currently unavailable

165

Husqvarna 532181356

COVER.BATTERY.CRD.BLACK

$11.99

$

Usually ships in 3-10 days

0

188

Husqvarna 819061216

WASHER

$4.99

$

Usually ships in 3-10 days

0

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

38

Husqvarna 532181748

BRACKET ASM PIVOT MOWER REAR
(Superseded to 583117401)

$11.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

185

Husqvarna 532181101

$

$

Not available

30

Husqvarna 532197376

CONSOLE.CRD.AUTO.GRY

$8.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532188203

DOOR TRAP
(Superseded to 583707801)

$24.99

$

Usually ships in 3-10 days

0

189

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 11

0

261

Husqvarna 532185212

$

$

Not available

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

266

Husqvarna 532185703

SEALING
(Superseded to 583146601)

$21.99

$

Usually ships in 3-10 days

0
