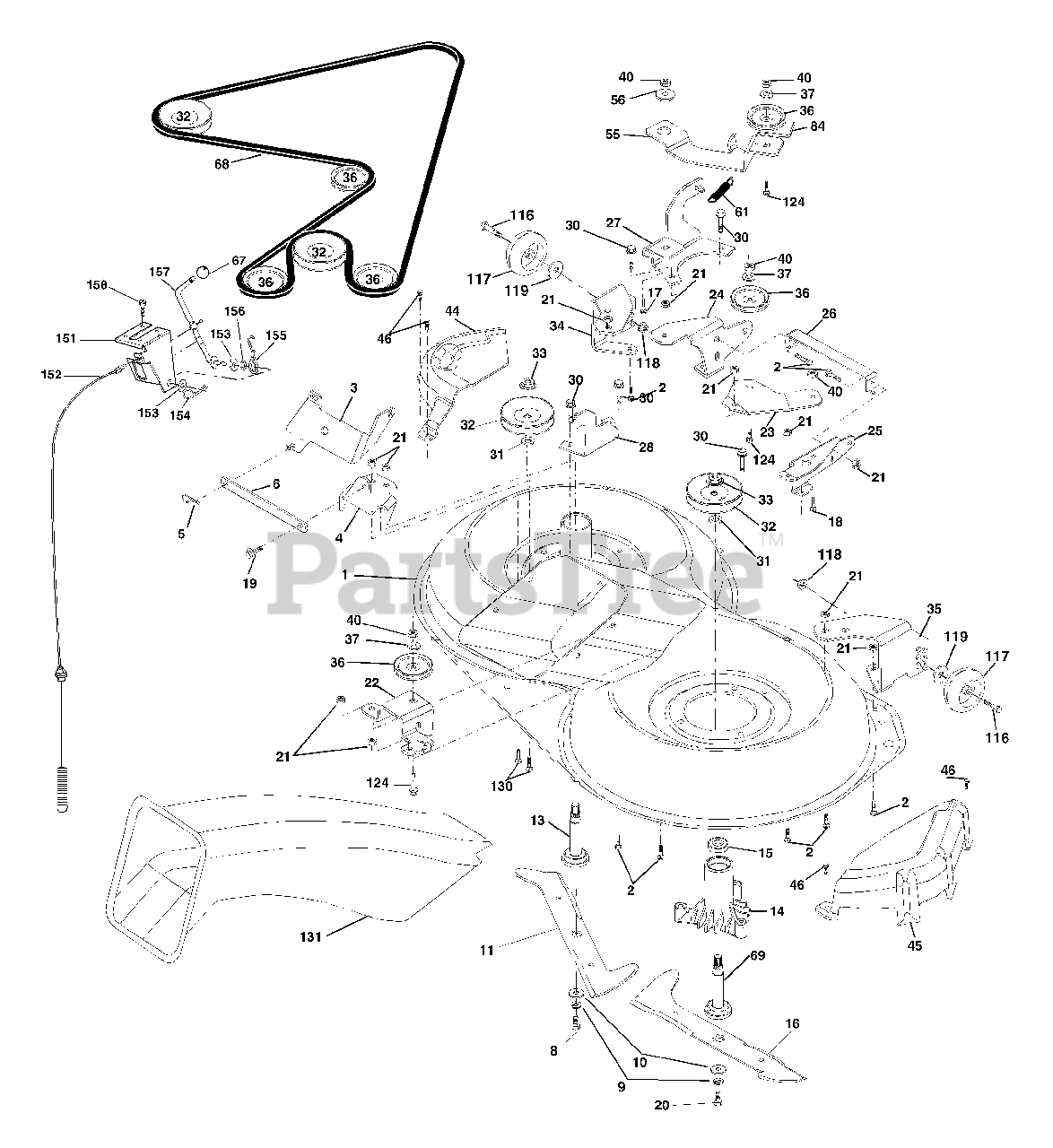

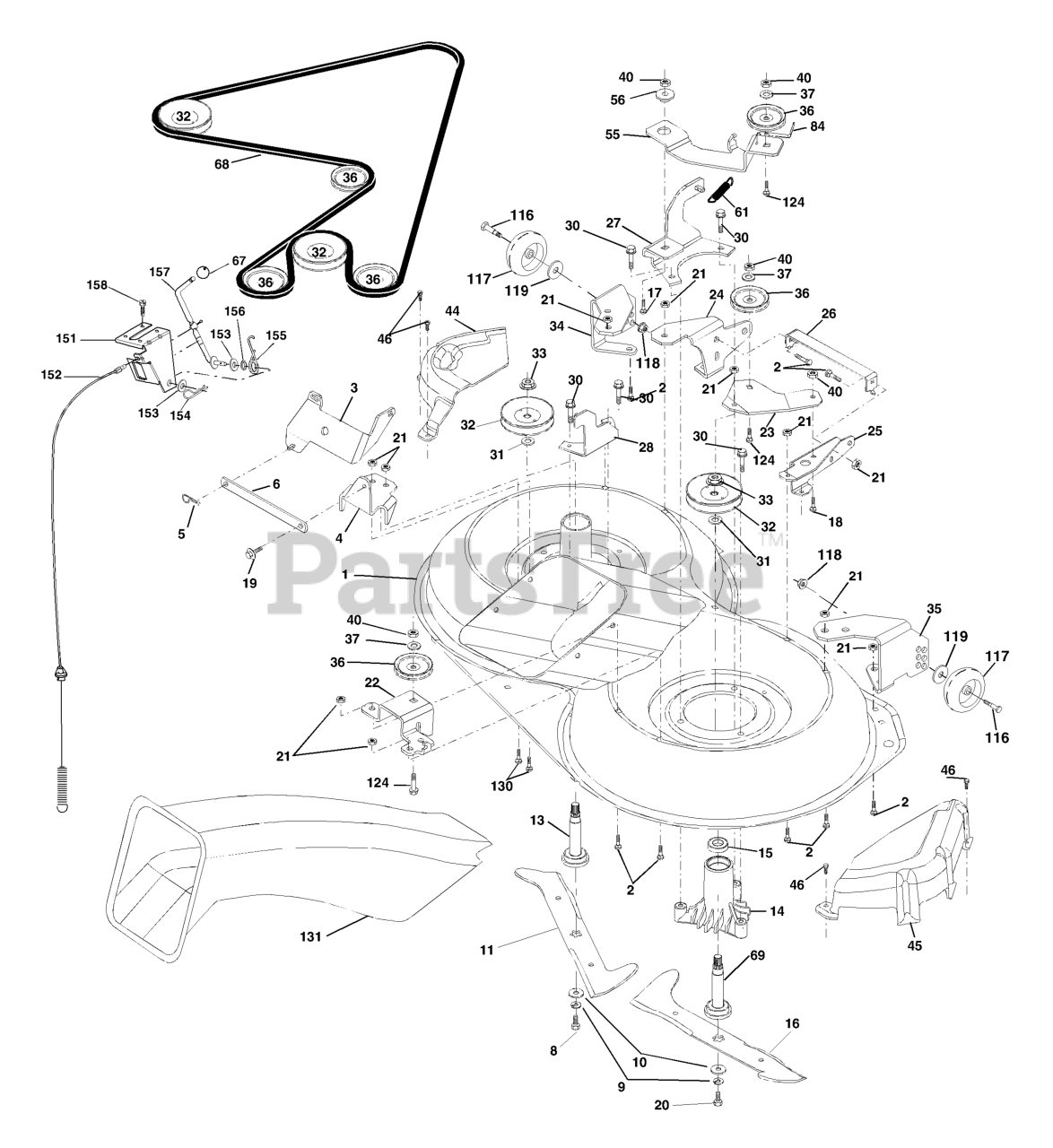

CT 130 (954170017-D) - Husqvarna 36" Lawn Tractor (2001-08) Mower Parts Diagram

36" Lawn Tractor

Mower Parts Diagram

  • Title

1

Husqvarna 532165552

Housing Asm. Mower 92 CRD
(Superseded to 532176029)

$262.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

Bolt Rdhd Sqnk 5/16-18 Unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532165569

Bracket Asm. S-Bar Chass 92 CRD

$

$

Not available

4

Husqvarna 532165558

Bracket Bar Sway Deck 92 CRD

$

$

Not available

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532165557

Bar Sway 92 CRD

$

$

Not available

8

Husqvarna 532850857

Bolt 3/8-24 x 1.25 Gr8 Patched

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 810030600

Washer Lock Hvy 3/8 Unplated
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

10

Husqvarna 532140296

Washer Hard Blade Mower vented

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 532170037

Blade 3-1 Lh 92 CRD
(Superseded to 532426323)

$78.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532129895

Bearing Ball #6204 (Mandrel)

$11.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

Shaft Asm. W/Lower Bearing
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Husqvarna 532128774

Housing Mandrel Vented (Machd)

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

Bearing Ball Mandrel

$13.99

$

In Stock, Qty 11

0

16

Husqvarna 532170038

Blade 3-1 Rh 92 CRD
(Superseded to 532426322)

$84.99

$

Usually ships in 3-10 days

0

17

Husqvarna 872140610

Bolt Carriage 3/8-16 x 1-1/4
(Superseded to 583611601)

$

$

Not available

18

Husqvarna 872110608

Bolt Rdhd Sqnk 3/8-16 x 1 Gr5
(Superseded to 596728201)

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 532132827

Bolt Shoulder 5/16-18 Thd Form

$

$

Not available

20

Husqvarna 532165484

Bolt 3/8-24 x 1.25 Gr8 Ptch Lhthd

$

$

Not available

21

Husqvarna 873680500

Nut Crown Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532165243

Bracket Idler Sprt RR 92 CRD

$

$

Not available

23

Husqvarna 532165446

Bracket Idler Sprt RF 92 CRD

$

$

Not available

24

Husqvarna 532165242

Bracket Suspension LF 92 CRD

$

$

Not available

25

Husqvarna 532165244

Bracket Suspension RF 92 CRD

$

$

Not available

26

Husqvarna 532165237

Brace Support Susp Frt CRD
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532165568

Bracket Asm. Susp RR 92 CRD

$27.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532165567

Bracket Asm. Susp LR 92 CRD

$

$

Not available

30

Husqvarna 532157722

Screw Thd Rolling Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 532129963

Washer Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153531

Mandrel Pulleys 36 & 46
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532137266

Nut Flg Top Lock Cntr B 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Husqvarna 532165239

Bracket Gauge Wheel Lf 92 CRD

$

$

Not available

35

Husqvarna 532165238

Bracket Gauge Wheel Rf 92 CRD

$

$

Not available

36

Husqvarna 532146763

Pulley Idler V-Groove Dim 4.25

$

$

Not available

37

Husqvarna 819131316

Washer 11/32 x 13/16 x 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532165724

Cover Mandrel Lh 92 CRD

$51.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532165556

Cover Mandrel Rh 92 CRD
(Superseded to 532175539)

$21.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

Screw Thd Roll 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532165445

Arm Idler 92 CRD

$

$

Not available

56

Husqvarna 532165723

Spacer Retainer Mower

$6.99

$

In Stock, only 1 left!

0

61

Husqvarna 532165945

Spring Tension Belt

$14.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532106932

Knob Rd 3/8-16 Plstc Thds Blk

$7.99

$

In Stock, Qty 5

0

68

Husqvarna 532165555

Hex-Belt 92 Mower 105AA
(Superseded to 532402008)

$91.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165482

Shaft Asm W/Lwr Brg Rh Thd CRD

$68.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532156085

Keeper Belt Idler
(Superseded to 532173968)

$

$

Not available

116

Husqvarna 532137644

Bolt Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532133957

Wheel Gage Donut Wide

$13.99

$

In Stock, Qty 10

0

118

Husqvarna 873930600

Nut Centerlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

124

Husqvarna 872110612

Bolt Carr Sh 3/8-16 x 1-1/2 Gr5

$6.49

$

Usually ships in 3-10 days

0

128

Husqvarna 532153390

Washer Felt

$6.49

$

In Stock, only 3 left!

0

130

Husqvarna 872110506

Bolt Rdhdsqnk 5/16-18 Unc x 3/4

$7.49

$

In Stock, Qty 20+

0

131

Husqvarna 532165661

Chute Bagger CRD 92cm

$93.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532169670

Bracket Clutch Cable

$

$

Not available

152

Husqvarna 532170300

Cable Clutch CRD

$

$

Not available

153

Husqvarna 532169674

Washer Flat 3/8" Type B
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

154

Husqvarna 532169675

Spring Retainer

$7.49

$

In Stock, only 1 left!

0

155

Husqvarna 532169671

Spring Retention

$6.49

$

Usually ships in 3-10 days

0

156

Husqvarna 532169672

Spacer Clutch Cable

$6.49

$

Usually ships in 3-10 days

0

157

Husqvarna 532169669

Rod Clutch Cable 3/8"

$

$

Not available

158

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20 x 5/8
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

Husqvarna 532130794

Mandrel Asm Service

$56.99

$

In Stock, only 2 left!

0

Husqvarna 532165579

Mandrel Asm CRD Lh Threads SVC

$91.99

$

Usually ships in 3-10 days

0

Husqvarna 532173549

Deck Mower Complete

$

$

Not available
