CT 130 (954170017-D) - Husqvarna 36" Lawn Tractor (2001-08) Chassis And Enclosures Parts Diagram

36" Lawn Tractor

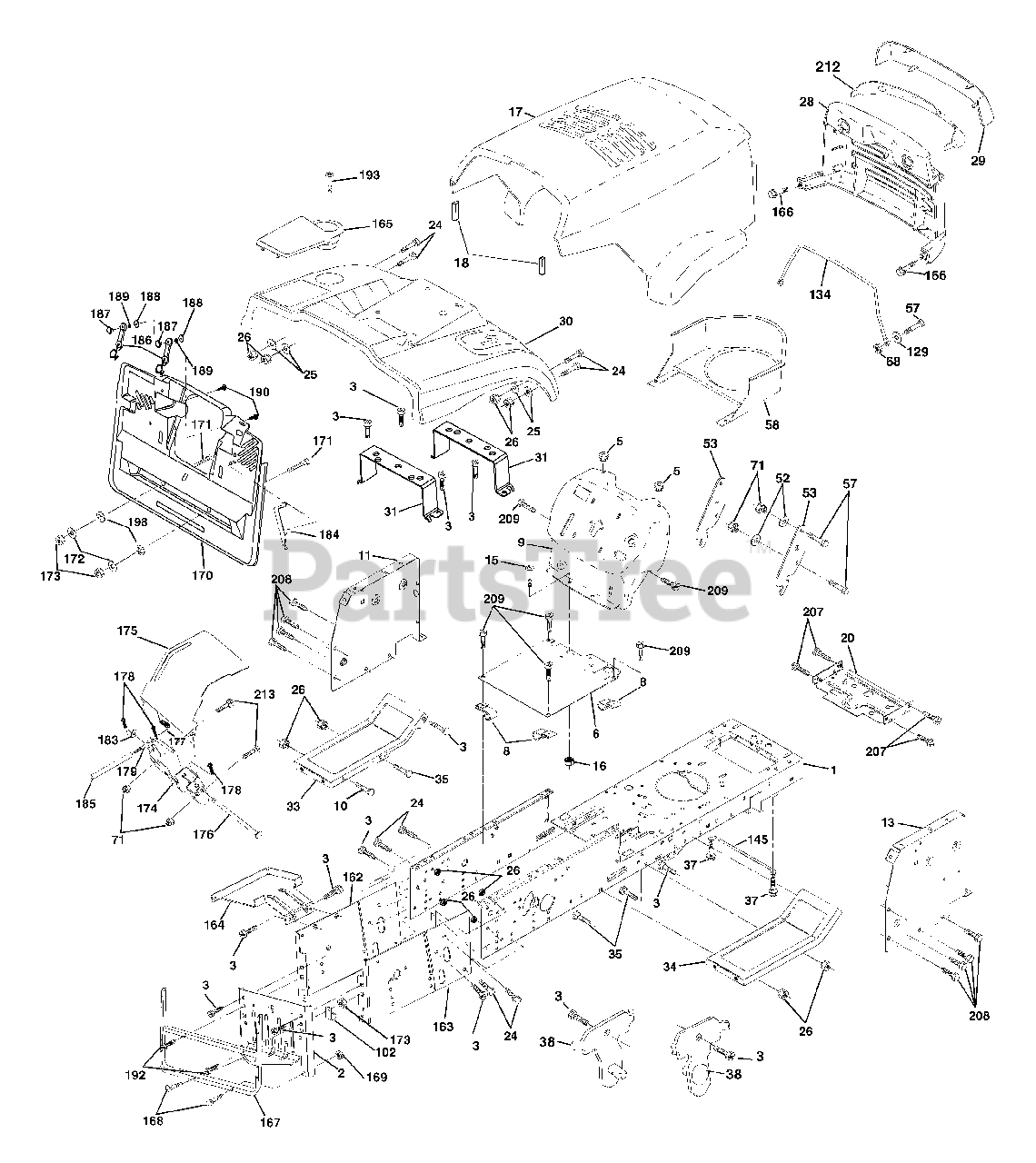

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532169831

Chassis Stamping

$

$

Not available

2

Husqvarna 532165606

Drawbar

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 532155272

Bumper Hood/Dash

$7.49

$

In Stock, only 3 left!

0

6

Husqvarna 532155923

Saddle

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532126471

Clip Insulator 13/32 Mtg. Hole

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532171796

Dash

$

$

Not available

10

Husqvarna 872140608

Bolt, Carriage 3/8-16 x 3/4
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 532155927

Panel, Dash, L.H.
(Superseded to 532174996)

$

$

Not available

13

Husqvarna 532172108

Panel, Asm. Dash R.H.

$

$

Not available

15

Husqvarna 874180512

Screw, Machine, Truss Head 5/6-18 UNC x 3/4

$

$

Not available

16

Husqvarna 873510500

Nut
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532165378

Hood Assembly
(Superseded to 532156051)

$519.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532126938

Bumper Hood

$

$

Not available

20

Husqvarna 532156437

Plate Mtg. Battery/Fuel Tank
(Superseded to 532180679)

$11.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780616

Bolt

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532165379

Grille PL
(Superseded to 532156880)

$

$

Not available

29

Husqvarna 532165380

Lens, Grille
(Superseded to 532149777)

$

$

Not available

30

Husqvarna 532168428

Fender

$728.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532165156

Bracket, Fender Support

$

$

Not available

33

Husqvarna 532147203

Footrest, L.H.

$

$

Not available

34

Husqvarna 532147202

Footrest, R.H.
(Superseded to 532145243)

$

$

Not available

35

Husqvarna 872110606

Bolt

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2 TYT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532169834

Bracket Asm Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532150067

Bracket Pick off LT/Pl Husq

$

$

Not available

57

Husqvarna 874780412

Bolt, Fin Hex 1/4-20 UNC x .75
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

Duct Air Engine Pl/Lt

$

$

Not available

68

Husqvarna 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

71

Husqvarna 873680400

Nut Crownlock 1/4-20 Unc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

102

Husqvarna 532124996

Clip Line Fuel 13-13/32 Mtg. Hole
(Superseded to 532002751)

$

$

Not available

129

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Ga.

$4.99

$

Usually ships in 3-10 days

0

134

Husqvarna 532160219

Rod Support Hood Husq P/L

$7.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

162

Husqvarna 532170256

Bracket Exten Chassis Lh CRD

$

$

Not available

163

Husqvarna 532165673

Bracket Exten Chassis Rh CRD

$

$

Not available

164

Husqvarna 532165605

Support Battery CRD

$

$

Not available

165

Husqvarna 532167979

Cover Battery CRD Lt
(Superseded to 583687501)

$

$

Not available

166

Husqvarna 532164863

Screw Hwhd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532165779

Support Asm. Backplate WLDMNT

$66.99

$

Usually ships in 3-10 days

0

168

Husqvarna 872050412

Bolt, RDHD SHT NK 1/4-20 x 1-1/2

$6.49

$

Usually ships in 3-10 days

0

169

Husqvarna 532123976

Nut, Lock 1/4 LGE FLG Gr. 5 Zinc
(Superseded to 873900400)

$4.99

$

In Stock, Qty 15

0

170

Husqvarna 532175264

Backplate Asm CRD

$

$

Not available

171

Husqvarna 874520640

Bolt Hex 3/8-16 x 2-1/2 Gr. 5

$

$

Not available

172

Husqvarna 819132016

Washer 13/32 x 1-1/4 x 16 Ga.
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

173

Husqvarna 873510600

Nut, Keps Hex 3/8-16 UNC

$6.49

$

Usually ships in 3-10 days

0

174

Husqvarna 532165939

Bracket Switch FBI CRD

$

$

Not available

175

Husqvarna 532166212

Guard Door Rear CRD

$

$

Not available

176

Husqvarna 532128600

Pin Hinge Pivot
(Superseded to 532192786)

$17.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532132796

Spring Bagger Top LH Black

$6.99

$

In Stock, only 1 left!

0

178

Husqvarna 876020312

Pin Cotter 3/32 x 3/4 Cad Zinc
(Superseded to 876020308)

$

$

Not available

179

Husqvarna 532165942

Rod Pivot FBI CRD

$7.99

$

Usually ships in 3-10 days

0

180

Husqvarna 874760516

Bolt Hex HD 5/16-18 UNC x 1
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

181

Husqvarna 873680500

Nut Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532138200

Washer .385 x .625 x 11 Ga.

$4.99

$

Usually ships in 3-10 days

0

183

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

184

Husqvarna 532174662

Bracket Actuator Bagger CRD

$5.99

$

Usually ships in 3-10 days

0

185

Husqvarna 532165940

Tube Lever Switch FBI CRD

$6.49

$

Usually ships in 3-10 days

0

186

532160793

Latch Asm Mulch/Bagger

$

$

Not available

187

Husqvarna 532125004

Nut Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

188

Husqvarna 819061216

Washer #10

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 810071000

Washer Lock #10

$4.99

$

In Stock, Qty 11

0

190

Husqvarna 871081010

Screw Pan Hd Phillip 10-24 x 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

192

Husqvarna 817490624

Screw Thdrol 3/8-16 x 1-1/4
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

193

Husqvarna 817070412

Screw Truss 1/4-20 x 3/4 Tap/R

$

$

Not available

198

Husqvarna 532168937

Nut Push

$4.99

$

Usually ships in 3-10 days

0

207

Husqvarna 817670508

Screw Thdrol 5/16-18 x 1/2

$9.49

$

In Stock, only 2 left!

0

208

Husqvarna 817670608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 817000612

Screw Hexwsh Thdr 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

212

Husqvarna 532156195

Insert Lens Reflective

$

$

Not available

Husqvarna 532005479

Plug, Button

$5.99

$

Usually ships in 3-10 days

0
