CT 130 (954170017-C) - Husqvarna 36" Lawn Tractor (2000-02) Steering Assembly Parts Diagram

36" Lawn Tractor

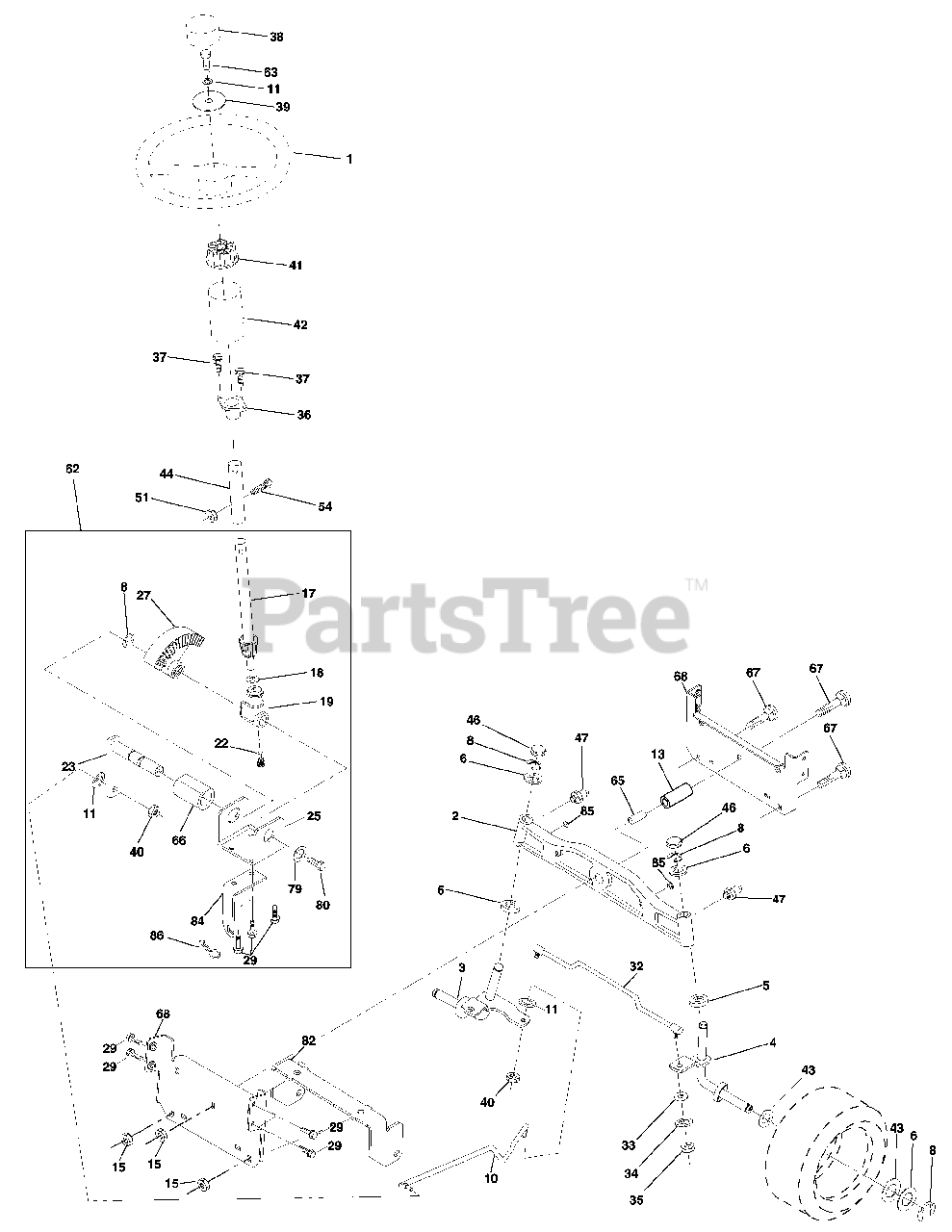

Steering Assembly Parts Diagram

  • Title
1

Husqvarna 532166627

Steering Wheel
(Superseded to 532159944)

$

$

Not available

2

Husqvarna 532165854

Axle Cast Lt Machined
(Superseded to 532193542)

$169.99

$

In Stock, only 1 left!

0

3

Husqvarna 532169840

Spindle Assembly, L.H.
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532169839

Spindle Assembly, R.H.
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124931

Bearing, Race, Thrust, Hardened
(Superseded to 532006266)

$7.49

$

In Stock, Qty 10

0

6

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Gauge

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

Ring, Klip

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532169832

Link, Drag

$80.99

$

In Stock, only 1 left!

0

11

Husqvarna 810040600

Washer, Lock
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

13

Husqvarna 532136518

Spacer Brg Axle Front

$9.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532156546

Shaft Assembly, Steering
(Superseded to 531166901)

$49.99

$

In Stock, only 3 left!

0

18

Husqvarna 532057079

Washer, Thrust .515 x .750 x .033

$6.49

$

In Stock, Qty 10

0

19

Husqvarna 532160395

Support, Shaft

$10.99

$

In Stock, Qty 7

0

22

Husqvarna 532165857

Screw Hex Wshhd Torx

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 532165851

Pittman Shaft Assembly

$22.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532154406

Bracket, Steering

$8.99

$

In Stock, only 1 left!

0

27

Husqvarna 532136874

Gear, Sector

$80.99

$

In Stock, only 1 left!

0

29

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

32

$93.99

$

In Stock, only 4 left!

0

33

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

34

Husqvarna 810040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

35

Husqvarna 873810500

Locknut 5/16-24 Unf
(Superseded to 873610500)

$

$

Not available

36

Husqvarna 532155099

Bushing, Steering
(Superseded to 532155106)

$10.99

$

In Stock, Qty 12

0

37

Husqvarna 532152927

Screw TT #10-32 x 5 x 3/8 Flange

$7.49

$

In Stock, only 2 left!

0

38

Husqvarna 532166626

Cap Wheel Steering
(Superseded to 532172092)

$17.99

$

Usually ships in 3-10 days

0

39

Husqvarna 819132411

Washer 13/32 x 1-1/20 x 11 Gauge

$

$

Not available

40

Husqvarna 532124701

Nut Lock Center 3/8-24 Unf
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532159945

Adaptor, Steering Wheel

$

$

Not available

42

Husqvarna 532169634

Boot, Steering Dash P/L Mtl
(Superseded to 532145054)

$

$

Not available

43

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532153720

Extension Steering Non-Adjust
(Superseded to 532153721)

$

$

Not available

46

Husqvarna 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 8

0

47

Husqvarna 532124836

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

51

Husqvarna 873800500

Nut Lock Hx W/Ins 5/16-18 UNC

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 874780520

Bolt Fin Hex 5/16-18 UNC x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532167902

Kit, Steering Assembly, Service
(Superseded to 584371701)

$136.99

$

In Stock, only 1 left!

0

63

Husqvarna 874780616

Bolt Fin Hex 3/8-16 unc. x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532160367

Spacer Brace Axle
(Superseded to 532414736)

$6.99

$

In Stock, only 4 left!

0

66

Husqvarna 532154404

Bearing Arm Pittman

$6.49

$

In Stock, only 3 left!

0

67

Husqvarna 872140618

Bolt Rdhd Sq 3/8-16 x 2-1/4
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

68

Husqvarna 532169827

Brace Axle

$21.99

$

Usually ships in 3-10 days

0

79

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

80

Husqvarna 874950612

Bolt Hex Nylon 3/8-16 x 3/4

$6.49

$

In Stock, only 3 left!

0

82

Husqvarna 532169835

Bracket Susp Chassis Front
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532170016

Bracket Cable Clutch Chassis

$

$

Not available

85

Husqvarna 532133835

Fastner Christmas Tree

$7.49

$

Usually ships in 3-10 days

0

86

Husqvarna 532165898

Retainer Spring

$7.49

$

Usually ships in 3-10 days

0
