CT 130 (954170017-C) - Husqvarna 36" Lawn Tractor (2000-02) Electrical Parts Diagram

36" Lawn Tractor

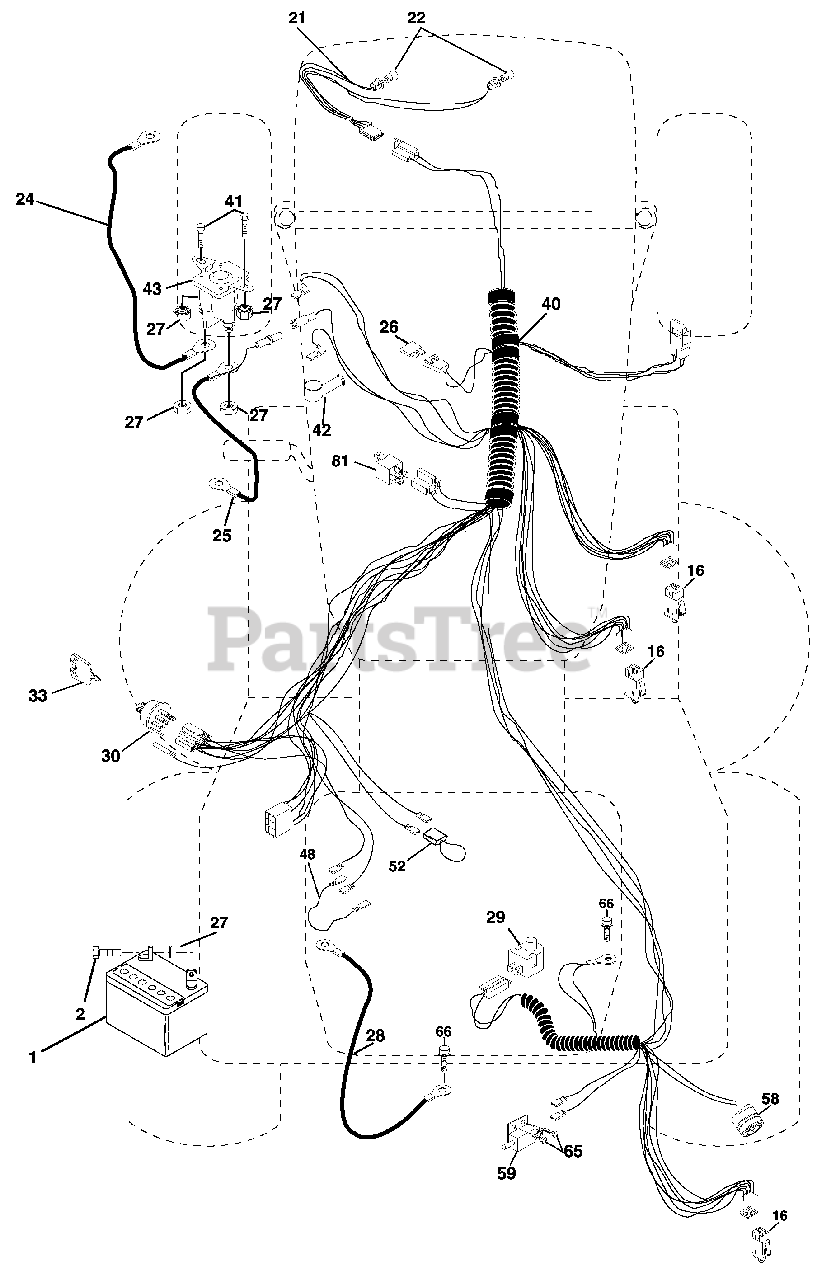

Electrical Parts Diagram

  • Title
1

Husqvarna 532144925

Battery 12 Volt 25 AMP Wet
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20 Unc X 3/4

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532153664

Switch Interlock Push-In
(Superseded to 532176138)

$22.99

$

In Stock, Qty 5

0

21

Husqvarna 532166181

Harness Asm Light W/4152J

$

$

Not available

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124780

Cable Starter 6Ga 11" Red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532165987

Cable Battery Crd 56" Red

$30.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532166180

Fuse 15 Amp
(Superseded to 532175158)

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

28

Husqvarna 532127725

Cable Ground 6Ga 18" Black

$

$

Not available

29

Husqvarna 532160784

Switch Plunger Normal Op Olive

$20.99

$

In Stock, only 1 left!

0

30

Husqvarna 532163968

Switch Ignition
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

33

Husqvarna 532140401

Key Ign Molded

$6.99

$

In Stock, Qty 7

0

40

Husqvarna 532170164

Harness Ign Crd Noram

$

$

Not available

41

Husqvarna 871110408

Bolt Flk Fin Hex 1/4-20 Unc X 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

48

Husqvarna 532140844

Adapter Ammeter Rectangular

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532141940

Protection Wire Loop

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532169419

Buzzer Crd
(Superseded to 532169420)

$74.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532166299

Switch FBI CRD

$

$

Not available

65

Husqvarna 817211008

Screw Slftp #10-16 x 1/2 Ty-Ab

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2 Ty-Tt

$6.49

$

Usually ships in 3-10 days

0

81

$30.99

$

In Stock, only 1 left!

0
