CT 130 (954170017-B) - Husqvarna 36" Lawn Tractor (2000-02) DRIVE Parts Diagram

36" Lawn Tractor

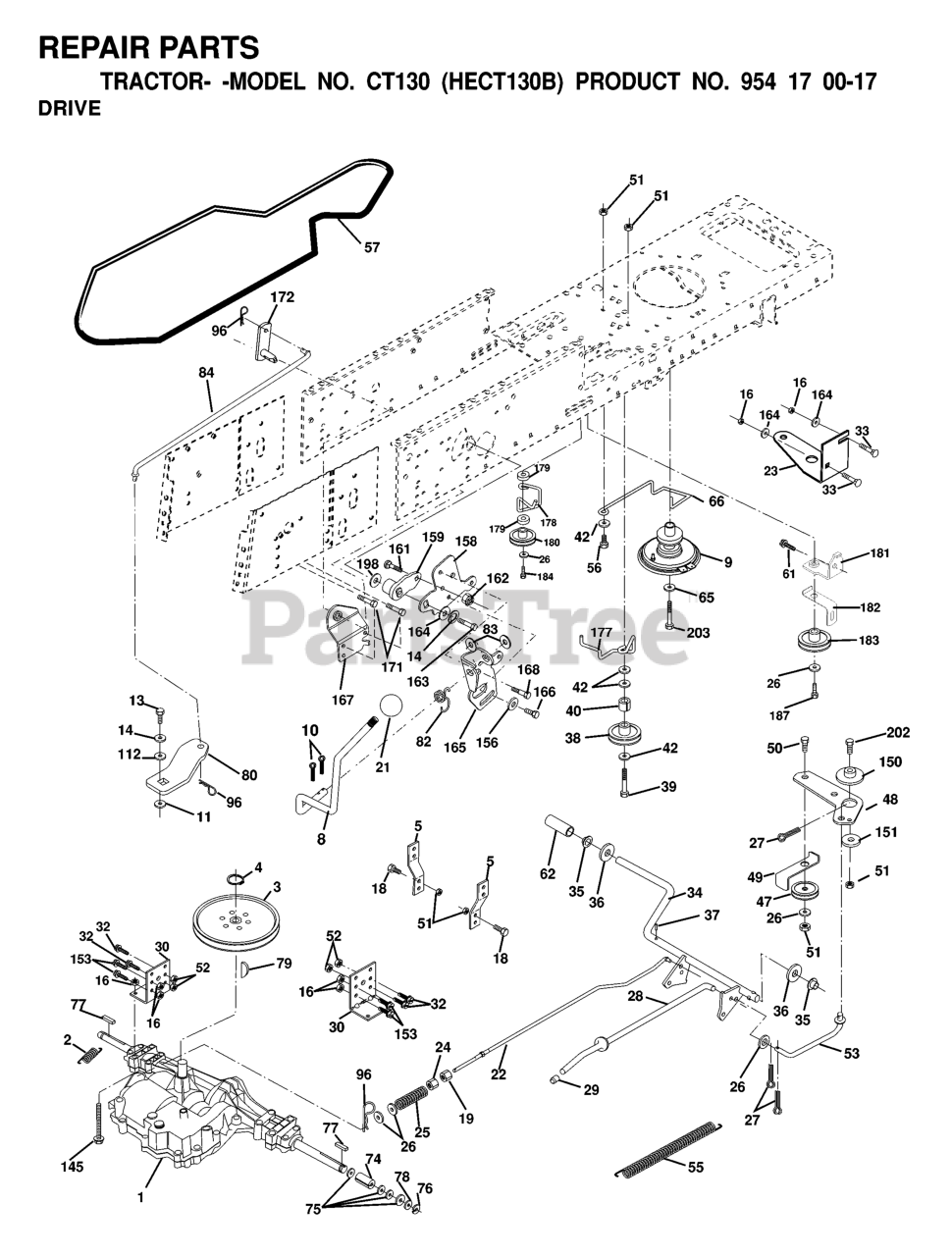

DRIVE Parts Diagram

  • Title
37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

8

Husqvarna 532165619

ROD.SHIFT.FENDER.ADJ.LT.CRD

$

$

Not available

33

Husqvarna 872140516

Bolt Rdhd Sqnk 5/16-18 Unc x 3/4

$

$

Currently unavailable

11

Husqvarna 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532171826

Bracket Pnt Clutch Noram

$

$

Currently unavailable

61

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

184

Husqvarna 817490644

SCREW.HXWSH.3/8

$

$

Not available

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 9

0

153

Husqvarna 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

179

$

$

Not available

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

164

Husqvarna 819091010

Washer 5/8 x .281 x 10 Ga.

$

$

Not available

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

188

Husqvarna 532110436

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

187

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

182

Husqvarna 532165634

KEEPER BELT
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

$31.99

$

Usually ships in 3-10 days

0

202

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

178

$3.99

$

Usually ships in 3-10 days

0

40

$6.49

$

Usually ships in 3-10 days

0

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532165936

PULLEY.FLAT

$31.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

$4.99

$

In Stock, Qty 20+

0

$3.49

$

Usually ships in 3-10 days

0

156

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

80

$7.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

171

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145204

ROD BRAKE PARK LT

$

$

Not available

51

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

36

$6.49

$

Usually ships in 3-10 days

0

150

Husqvarna 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

79

Husqvarna 532125096

KEY STD (1373) DANA

$9.49

$

In Stock, only 1 left!

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

172

Husqvarna 532165635

SHAFT
(Superseded to 584324101)

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532165999

PULLEY
(Superseded to 584450701)

$60.99

$

Usually ships in 3-10 days

0

76

$4.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

$7.49

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532165797

BRKT.IDLER.GRD.DR.CRD

$2.99

$

Usually ships in 3-10 days

0

177

$7.99

$

Usually ships in 3-10 days

0

112

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 8

0

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532145868

PULLEY, CLUTCH ELECT EVX

$100.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

203

Husqvarna 871170780

BOLT.HEX.7/16-20 X 5
(Superseded to 583789701)

$9.49

$

In Stock, only 1 left!

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

198

Husqvarna 532169593

WASHER.NYL.7/8IDX.105"HYD CR

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 2 left!

0

5

Husqvarna 532121520

STRAP TORQUE

$7.99

$

In Stock, only 3 left!

0

165

Husqvarna 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

57

Husqvarna 531007551

NEEDS DESCRIPTION

$

$

Currently unavailable

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532165626

PULLEY.V-IDLER

$34.99

$

In Stock, only 2 left!

0

30

Husqvarna 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532165588

BRACKET.SUPT.SHIFT.CRD

$20.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

$47.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

159

Husqvarna 532165494

HUB
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

9

Husqvarna 532170163

CLUTCH ASSY
(Superseded to 532179887)

$605.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532165630

PULLEY.FLAT.IDLER

$34.99

$

Usually ships in 3-10 days

0
