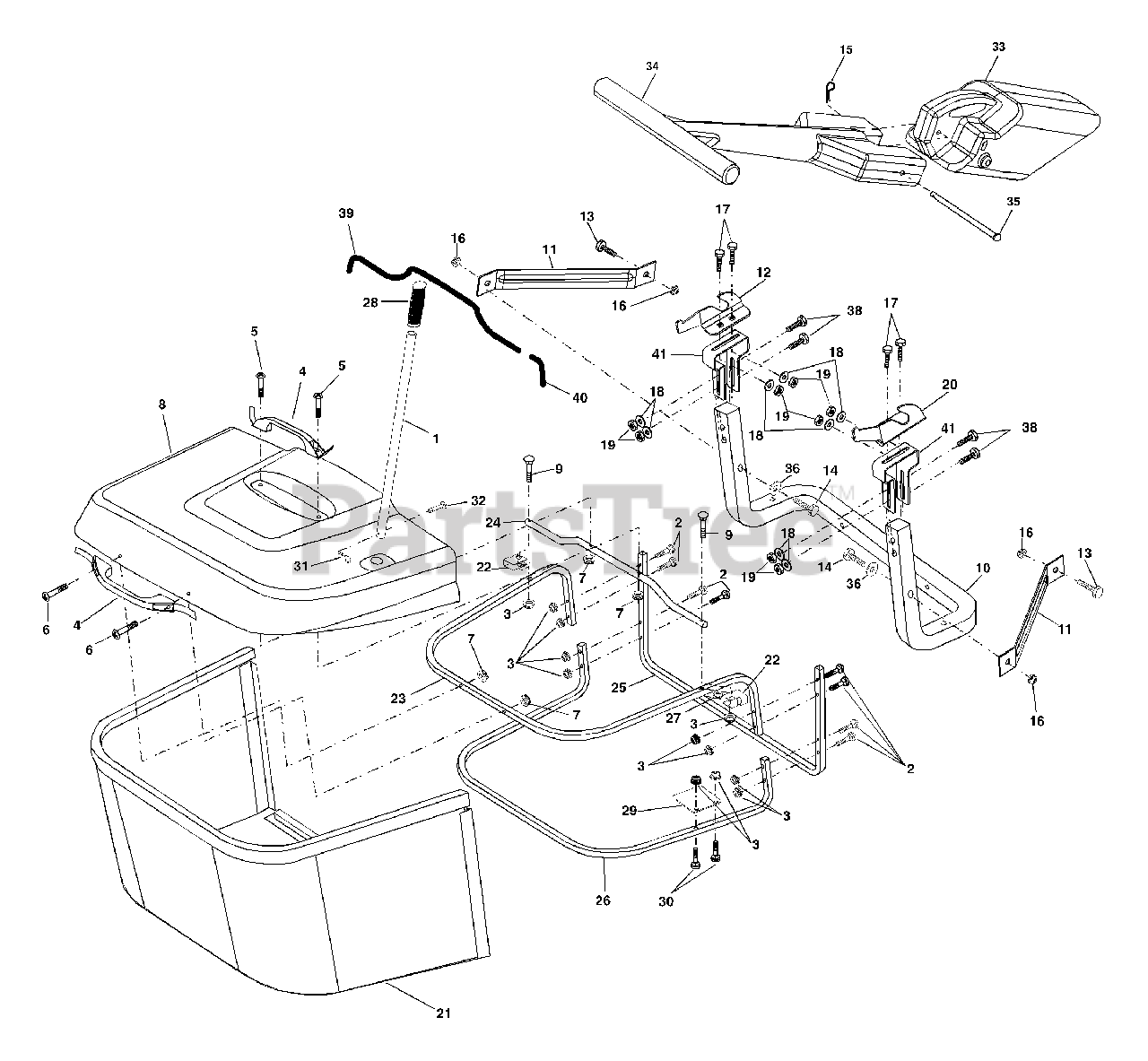

CT 130 (954170017-B) - Husqvarna 36" Lawn Tractor (1999-10) Bagger Parts Diagram

36" Lawn Tractor

Bagger Parts Diagram

  • Title

1

Husqvarna 532165249

Tube Handle Bagger CRD
(Superseded to 532170690)

$

$

Not available

2

Husqvarna 872140416

Bolt Carriage 1/4-20 x 2.0 Gr.5

$

$

Not available

3

Husqvarna 532123976

Nut Lock 1/4 Lge Flg Gr. 5 Zinc
(Superseded to 873900400)

$4.99

$

In Stock, Qty 18

0

4

Husqvarna 532169916

Handle Bagger w/Lvrs Blk CRD

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 874981024

Screw Pan Head #10-24 x 1.50 Blk

$9.99

$

In Stock, Qty 9

0

6

Husqvarna 874981032

Screw Pan Hd
(Superseded to 532750029)

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 873401000

Nut Wiz Lock Hex Serr/Hd 10-24

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532167980

Cover Bagger Plastic CRD MS422
(Superseded to 532165715)

$

$

Not available

9

Husqvarna 872140418

Bolt Carriage 1/4-20 x 2.25d x Gr.5

$

$

Not available

10

Husqvarna 532169688

Tube Support Bagger CRD
(Superseded to 583110201)

$

$

Not available

11

Husqvarna 532165719

Bracket Support Upper Bag CRD

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532169685

Bracket Horiz Adj Bagger Lh CRD

$

$

Not available

13

Husqvarna 872110606

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 874520640

Bolt Hex 3/8-16 x 2-1/2 Gr.5

$

$

Not available

15

Husqvarna 532124670

Retainer Spring

$

$

Not available

16

Husqvarna 873900600

Nut Lock Flg 3/8-16 Unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 872140506

Bolt Rdhd Sht Sqnk 5/16 -18 Unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 17

0

19

Husqvarna 873800500

Nut Lock Hex W/Ins 5/16-18 Unc Pl

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532169684

Bracket Horiz Adj Bagger Rh CRD
(Superseded to 532188847)

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532165780

Bag Asm CRD
(Superseded to 532180880)

$157.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532165781

Bracket Side Bagger CRD
(Superseded to 532428236)

$11.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532165782

Tube Upper Bagger CRD

$

$

Not available

24

Husqvarna 532165783

Tube Pivot Bagger CRD

$26.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532165784

Tube Front Bagger CRD

$

$

Not available

26

Husqvarna 532165785

Tube Lower Bagger CRD

$

$

Not available

27

Husqvarna 532169692

Bushing Snap Bagger CRD

$

$

Not available

28

Husqvarna 532165787

Grip Handle Black

$6.99

$

In Stock, only 2 left!

0

29

Husqvarna 532165839

Plate Stop Bagger handle CRD

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 872140410

Bolt Carriage 1/4-20 x 1 Gr.5

$

$

Not available

31

Husqvarna 532124788

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

32

Husqvarna 532126875

Rivet Rd Hd Drilled 3/8 Dia

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 532165571

Plug Mulcher 92 CRD
(Superseded to 583448501)

$

$

Not available

34

Husqvarna 532165570

Handle Mulcher 92/107 CRD

$60.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532165572

Pin Mulcher 92/107 CRD

$14.99

$

Usually ships in 3-10 days

0

36

Husqvarna 819132016

Washer 13/32 x 1-1/4 x 16 Ga.
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 872010520

Bolt 5/16-18 x 2-1/2

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532169999

Seal 26" (Long)
(Superseded to 532169997)

$36.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532170000

Seal 7" (Short)
(Superseded to 532169997)

$36.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532169683

Bracket Vert Adj Bagger CRD
(Superseded to 532432755)

$9.49

$

Usually ships in 3-10 days

0
