CT 126 (960510007-06) - Husqvarna 30" Lawn Tractor (2013-10) BAGGER Parts Diagram

30" Lawn Tractor

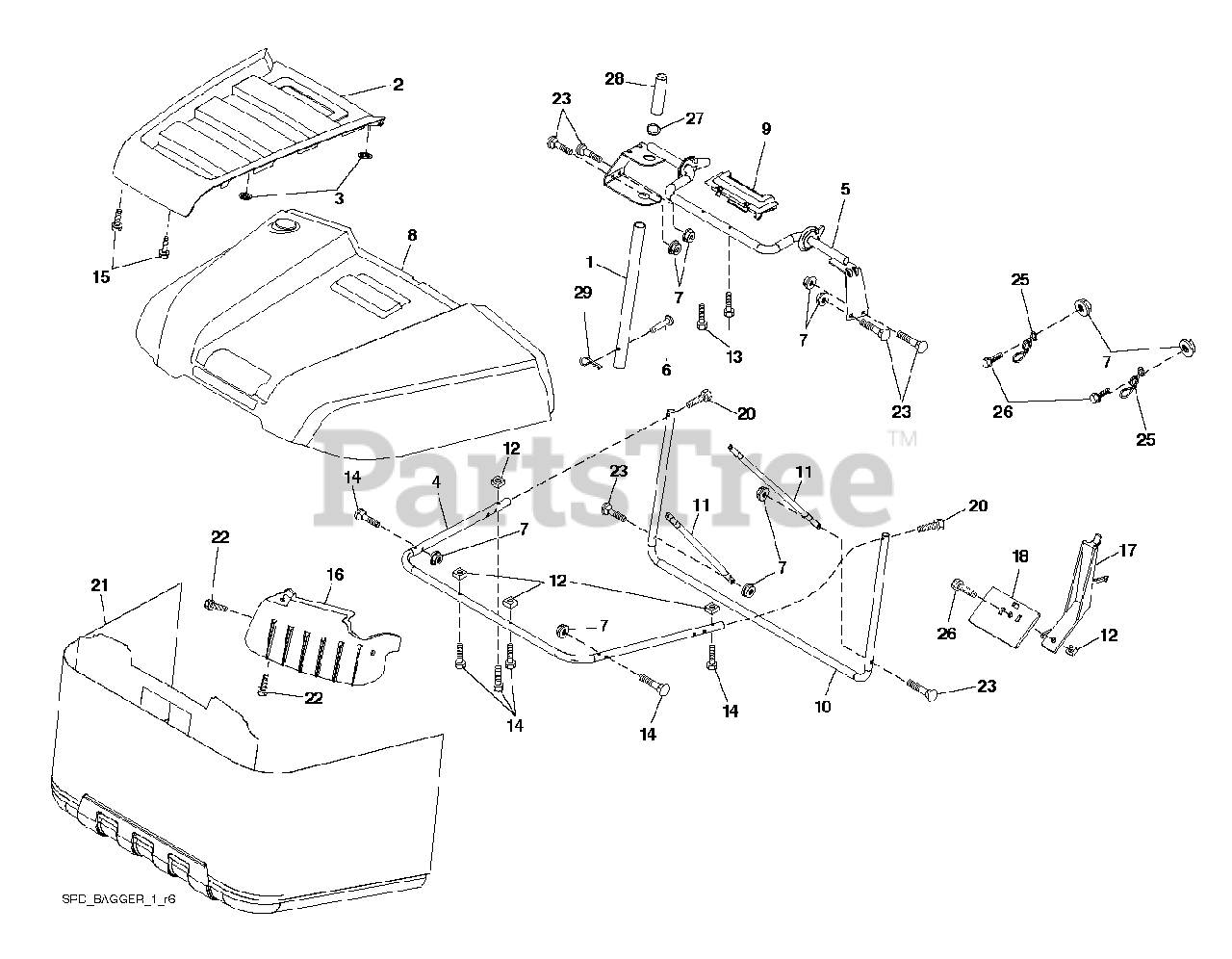

BAGGER Parts Diagram

  • Title
1

Husqvarna 532428610

TUBE.HANDLE.BAGGER.CRD/SRD.BLA

$15.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532441358

APPLIQUE.TOP.BAG.SRD.ORANGE

Note: Applique Top Bagger

$39.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532413808

NUT.PUSH.156
(Superseded to 583343001)

$6.49

$

In Stock, Qty 20+

0

4

Husqvarna 532439612

SUBASM.TOP.TUBE.TEX.CRD
(Superseded to 583544101)

$48.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532417632

FRAME.ASM.TOP.BAGGER.SRD
(Superseded to 583365901)

$145.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

8

Husqvarna 532441261

BAGGER.TOP.SRD.APPLIQUE
(Superseded to 583503801)

$157.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532417629

INSERT.HANDLE.BAGGER.(2 2)
(Superseded to 583365801)

$26.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532417190

FRAME.FRONT.SRD.BAGGER

$66.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532417188

TUBING.BRACE.BAGGER.SRD.BLACK

$24.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532421793

NUT.SQUARE.1/4
(Superseded to 583391701)

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 532421780

SCREW.1/4X1.150.HXWSH
(Superseded to 583391201)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532421800

BOLT.SHOULDER.HX.WSH.1/4X1.150
(Superseded to 583392001)

$7.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532421801

SCREW,#8.FLAT.HEAD.DRILL.TIP
(Superseded to 583392101)

$

$

Not available

16

Husqvarna 532421566

DEFLECTOR.BAGGER.SRD

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532421749

LEVER.BAGGER.FULL.SRD.BLACK

$13.99

$

In Stock, only 2 left!

0

18

Husqvarna 532421750

PADDLE.BAGGER.FULL.SRD.BLACK
(Superseded to 583391001)

$12.99

$

In Stock, only 3 left!

0

20

Husqvarna 585368801

SCREW.HEXCAP.1/4-20X1.375(2 2)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532429981

BAG.ASM.BAGGER.SRD.HUSQVA.GREY
(Superseded to 583825601)

$148.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532421614

SPRING.LATCH.BAGGER.SRD
(Superseded to 583389801)

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 532421262

RB GROMMET.RUBBER.SRD
(Superseded to 583387201)

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532165787

GRIP.HANDLE.BLACK

$6.99

$

In Stock, only 2 left!

0

29

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0
