CT 126 (960410077-01) - Husqvarna 30" Lawn Tractor (2010-01) Mower Lift Parts Diagram

30" Lawn Tractor

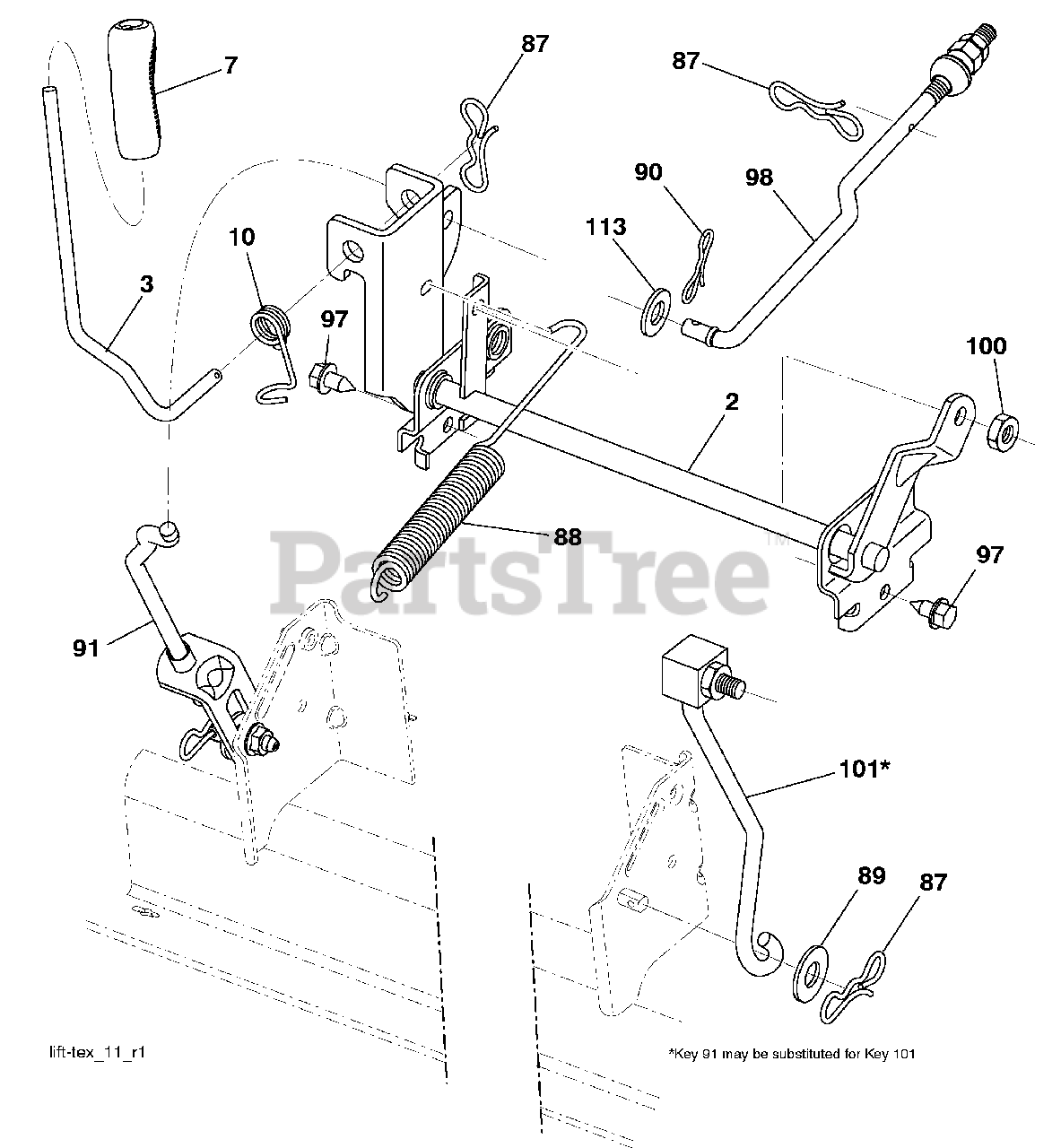

Mower Lift Parts Diagram

  • Title

2

Husqvarna 532422027

Shaft Asm., Lift

$80.99

$

In Stock, only 1 left!

0

3

Husqvarna 532195231

Lever Asm., Lift RH

$

$

Not available

7

Husqvarna 532411555

Grip, Lever

$9.49

$

In Stock, only 1 left!

0

10

Husqvarna 532196314

Spring Torsion

$6.49

$

In Stock, only 2 left!

0

87

Husqvarna 532194209

Pin Cotter 7/16 Bow Tie Lock

$3.99

$

In Stock, only 1 left!

0

88

Husqvarna 532410710

Spring Lift Assist

$11.99

$

In Stock, Qty 6

0

89

Husqvarna 819191912

Washer Clear

$6.49

$

In Stock, Qty 20+

0

90

Husqvarna 532194208

Pin Cotter 5/16 Bow Tie Lock

$3.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532195181

Link Lift Susp Mower Rear

$

$

Not available

97

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

98

Husqvarna 532195264

Link Lift Susp. Front Mower
(Superseded to 581506902)

$11.99

$

In Stock, Qty 15

0

100

Husqvarna 873930600

Nut Centerlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532407003

Link Asm. Lift FXD

$18.99

$

In Stock, only 1 left!

0

113

Husqvarna 819171912

Washer 17/32 x 1-3/16 x 12 Ga.

$7.49

$

In Stock, only 1 left!

0
