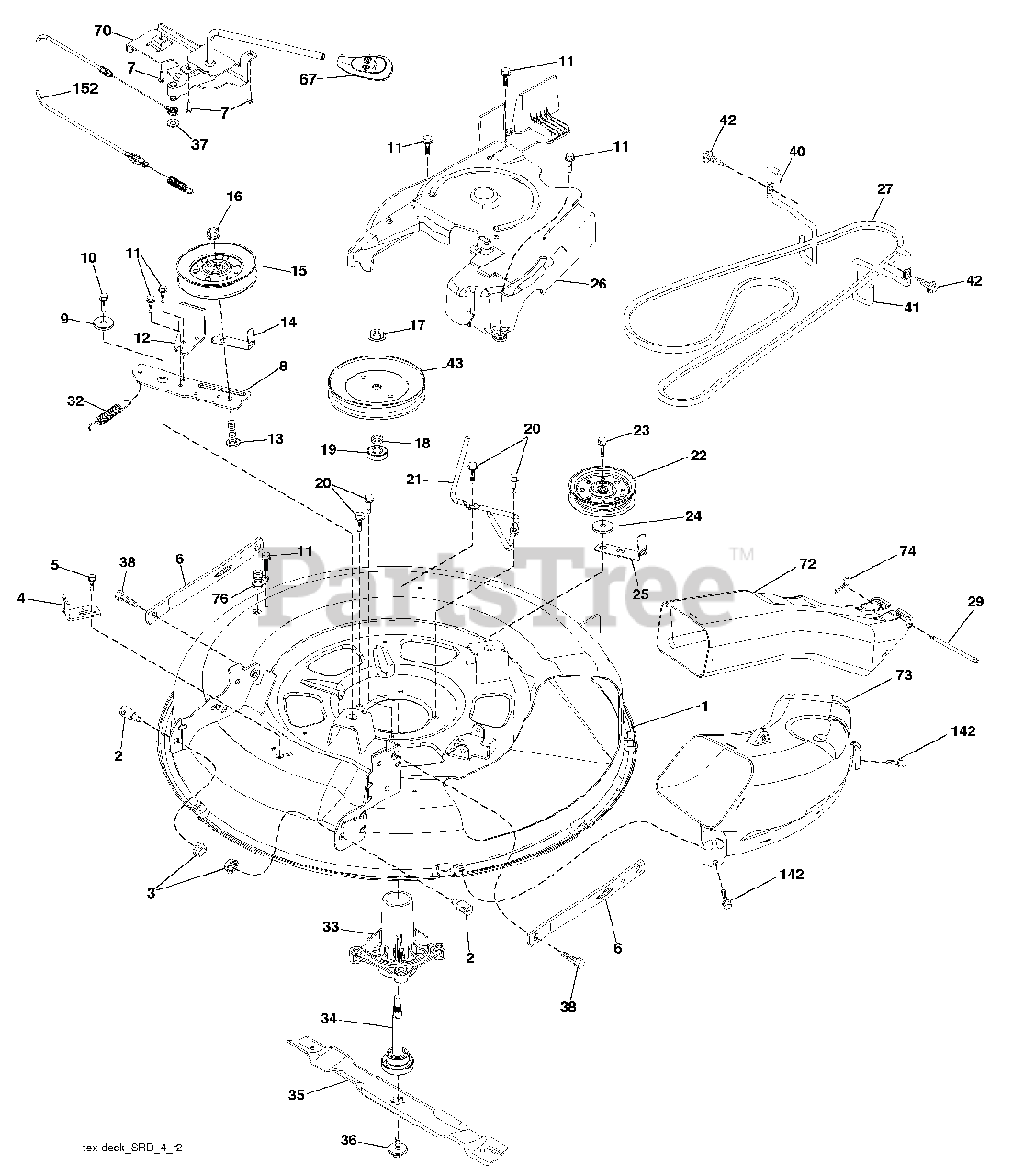

CT 126 (960410077-01) - Husqvarna 30" Lawn Tractor (2010-01) Mower Deck Parts Diagram

30" Lawn Tractor

Mower Deck Parts Diagram

  • Title
1

Husqvarna 532419272

Deck Weldment 30"Srd
(Superseded to 583749801)

$399.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532195161

Stud Fastner W/'D'anti-Rotatio

$

$

Not available

3

Husqvarna 873900500

Nut Lock Hex Flange 5/16 - 18
(Superseded to 583612701)

$

$

Not available

4

Husqvarna 532417645

Bracket Clutch Cable

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 817000510

Bolt 5/16-18

$7.49

$

In Stock, Qty 12

0

6

Husqvarna 532418863

Arm Susp Mower Rear Srd

$20.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532416358

Screw #10 x 0.750 BOS Thread

$

$

Not available

8

Husqvarna 532420252

Arm Idler 30"Srd
(Superseded to 583379801)

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532199092

Spacer Retainer

$6.99

$

In Stock, Qty 11

0

10

Husqvarna 817000616

Screw 3/8 - 16 X 1 Smgml Tap/R Blk

$7.49

$

In Stock, only 3 left!

0

11

Husqvarna 532137729

Screw Thd Roll 1/4 - 20 X 5/8

$4.99

$

In Stock, Qty 19

0

12

Husqvarna 532199470

Arm Brake Mower 38" RH Tex
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

13

Husqvarna 872110612

Bolt Carr Sh 3/8 - 16 X 1 - 1/2 Gr5

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532156085

Keeper Belt Idler
(Superseded to 532173968)

$

$

Not available

15

Husqvarna 532146763

Pulley Idler V-Groove Dim 4.25

$

$

Not available

16

Husqvarna 873900600

Nut Lock FlG 3/8 - 16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532400234

Nut Flange Lock Top
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

18

Husqvarna 532187690

Washer Spacer Mandrel

$4.99

$

In Stock, Qty 8

0

19

Husqvarna 532110485

Bearing Ball Mandrel

$13.99

$

In Stock, Qty 14

0

20

Husqvarna 532173984

Screw Thd Roll Dod Pt Hex
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532416910

Keeper Belt Mandrel 30"

$15.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532193198

Pulley Idler Flat Unplated

$

$

Not available

23

Husqvarna 817490628

Screw Thdrol 3/8 - 16 X 1-3/4
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 819132012

Washer 13/32 X 1 - 1/4 X 12 Ga
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532420253

Keeper Belt 30"Srd
(Superseded to 529311701)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532420255

Cover Mandrel Mwr 30"Black
(Superseded to 583481101)

$56.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532126520

V-Belt 88.45 GND DR/30" MWR
(Superseded to 532419271)

$60.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532420895

Hinge Pin
(Superseded to 583383801)

$

$

Not available

32

Husqvarna 532401872

Spring Return Deck 38/46"

$5.99

$

In Stock, Qty 7

0

33

Husqvarna 532187281

Housing Mandrel 4pt Service
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

34

Husqvarna 532192872

Shaft Asm Mndrl N/Greaseable38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

35

Husqvarna 532419274

Blade Mower Bagging Srd

$34.99

$

In Stock, only 1 left!

0

36

Husqvarna 532193003

Bolt/Washer Asm 7/16 - 20 unf

$8.99

$

Usually ships in 3-10 days

0

37

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532196539

Bolt Shoulder

$7.49

$

In Stock, Qty 20+

0

40

Husqvarna 532419270

Keeper Belt Engine LH

$17.99

$

In Stock, only 1 left!

0

41

Husqvarna 532419265

Keeper Belt Engine RH

$15.99

$

In Stock, only 4 left!

0

42

Husqvarna 817000612

Screw Hexwsh THDR 3/8-16 x 3/4 BL

$4.99

$

In Stock, only 2 left!

0

43

Husqvarna 532416877

Pulley Mandrel 6 5 Pd 30"
(Superseded to 525568001)

$34.99

$

In Stock, only 1 left!

0

67

Husqvarna 532403012

Handle clutch cable

$12.99

$

In Stock, only 1 left!

0

70

Husqvarna 532401246

Clutch Asm. Manual

$80.99

$

In Stock, only 1 left!

0

72

Husqvarna 532417236

Chute Upper SRD 30R
(Superseded to 583364501)

$72.99

$

In Stock, only 1 left!

0

73

Husqvarna 532425274

Chute Lower SRD 30R

$79.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532124670

Retainer Spring

$

$

Not available

76

Husqvarna 532415598

Washout Port

$8.99

$

In Stock, Qty 12

0

142

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

152

Husqvarna 532408714

Manual Clutch Cable
(Superseded to 532435111)

$34.99

$

In Stock, only 1 left!

0

Husqvarna 532416405

Quick Connect Coupling

$10.99

$

In Stock, Qty 6

0

Husqvarna 532192870

Mandrel Assembly
(Superseded to 587819701)

Note: (Includes Housing, Shaft Assembly, And Bearing Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included)

$56.99

$

In Stock, Qty 20+

0

Husqvarna 532431550

Replacement Mower Complete

$

$

Not available
