CT 126 (960410077-01) - Husqvarna 30" Lawn Tractor (2010-01) Bagger Parts Diagram

30" Lawn Tractor

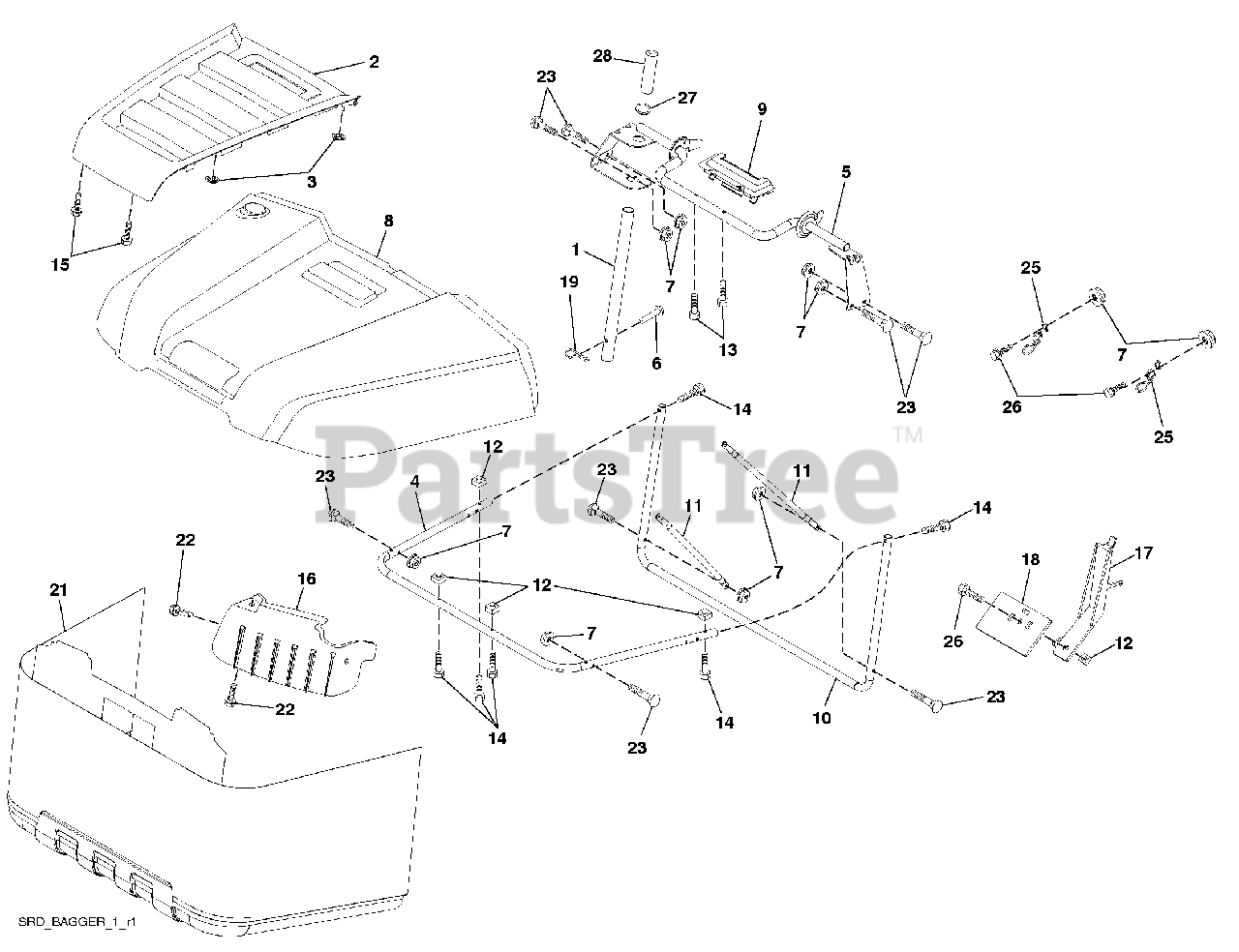

Bagger Parts Diagram

  • Title
1

Husqvarna 532428610

Tube Handle Bagger SRD

$15.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532417187

Applique Top Bagger

$

$

Currently unavailable

3

Husqvarna 532413808

Nut Push
(Superseded to 583343001)

$6.49

$

In Stock, Qty 20+

0

4

Husqvarna 532417185

Frame Asm Bagger Top

$

$

Not available

5

Husqvarna 532417632

Frame Asm Top Bagger SRD
(Superseded to 583365901)

$145.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532126875

Drilled Rivit

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 873900400

Nut Hex Flange 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

8

Husqvarna 532425318

Cover Bagger SRD
(Superseded to 583503801)

$157.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532417629

Insert Handle Bagger
(Superseded to 583365801)

$26.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532417190

Frame Front

$66.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532417188

Tubing Brace Bagger

$24.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532421793

Nut Square 1/4
(Superseded to 583391701)

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 532421780

Screw 1/4 x 1.150 HXWSH
(Superseded to 583391201)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532421800

Bolt Shoulder HX WSH 1/4 x 1.150
(Superseded to 583392001)

$7.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532421801

Screw #8 Flat Head Drill Tip
(Superseded to 583392101)

$

$

Not available

16

Husqvarna 532421566

Deflector Bagger

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532421749

Lever Bagger Full

$13.99

$

In Stock, only 2 left!

0

18

Husqvarna 532421750

Paddle Bagger Full
(Superseded to 583391001)

$12.99

$

In Stock, only 3 left!

0

19

Husqvarna 532124670

Retainer Spring

$

$

Not available

21

Husqvarna 532429981

Bag Asm SRD
(Superseded to 583825601)

$148.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532142432

Screw Hex WSH Hi-Lo 1/4 - 1/2 unc

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 872040410

Bolt Carr 1/4-20 unc x 1-1/4

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532421614

Spring Latch Bagger
(Superseded to 583389801)

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 817490412

Screw Hex Thdrol 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 532421262

Grommet, Rubber SRD
(Superseded to 583387201)

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532165787

Grip Handle Black

$6.99

$

In Stock, only 2 left!

0
