CT 126 (960410077-00) - Husqvarna 30" Lawn Tractor (2009-01) MOWER LIFT / DECK LIFT Parts Diagram

30" Lawn Tractor

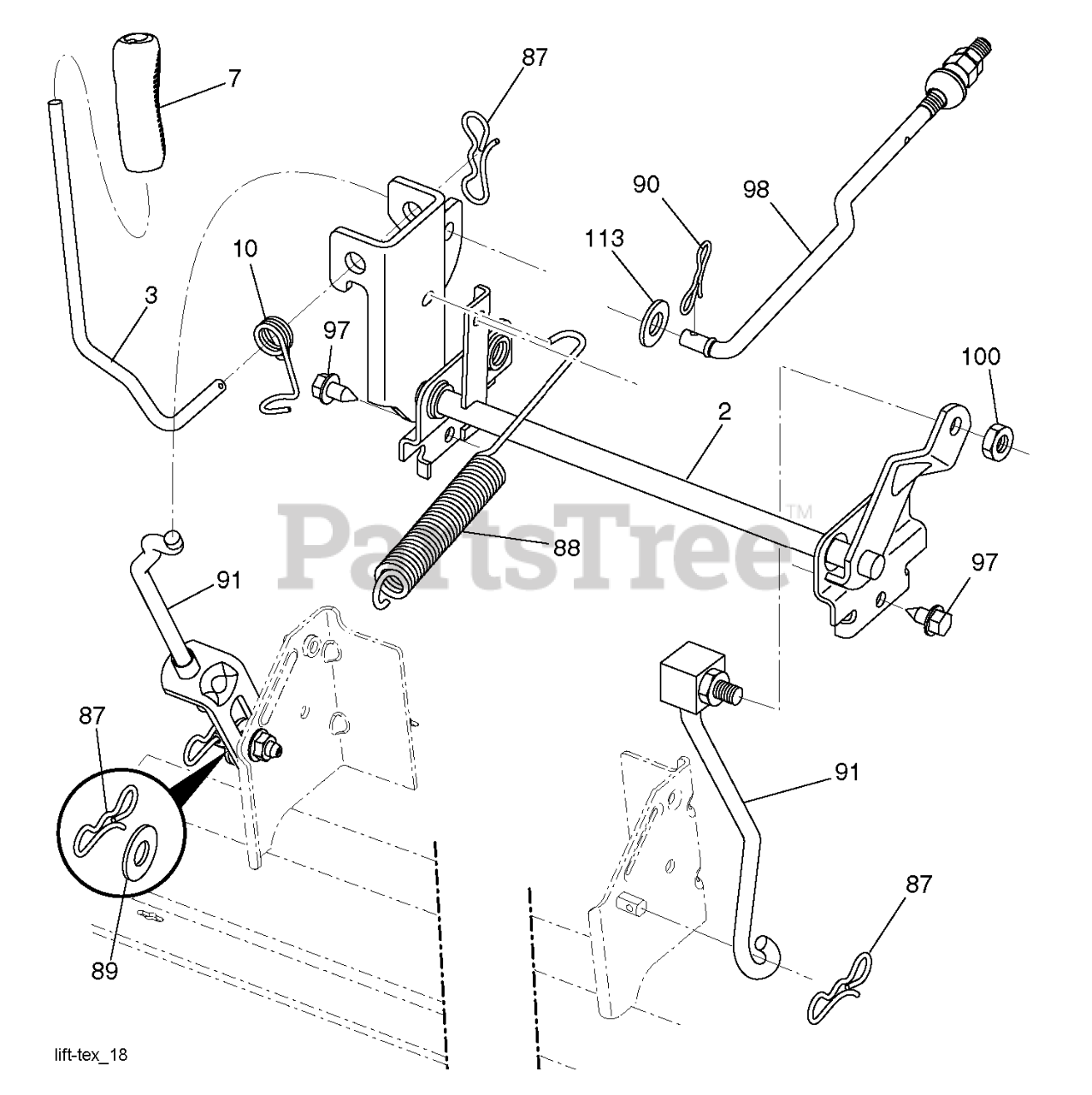

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
100

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532195181

LINK.ASM.LIFT.REAR

$

$

Not available

87

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, only 1 left!

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 532195231

LEVER.LIFT.HANDLE.LT

$

$

Not available

2

Husqvarna 532195223

SHAFT.ASM.LIFT.CROSS.H
(Superseded to 532422027)

$80.99

$

In Stock, only 1 left!

0

98

Husqvarna 532195264

LINK.ASM.SUSP.FRONT.MWR.10.5
(Superseded to 581506902)

$11.99

$

In Stock, Qty 15

0

97

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

113

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532411555

GRIP.HANDLE.LIFT.PVC.BLACK

$9.49

$

In Stock, only 1 left!

0

90

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

88

Husqvarna 532410710

SPRING.LIFT.ASSIST

$11.99

$

In Stock, Qty 6

0

89

Husqvarna 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 20+

0
