CT 126 (960410077-00) - Husqvarna 30" Lawn Tractor (2009-01) ENGINE Parts Diagram

30" Lawn Tractor

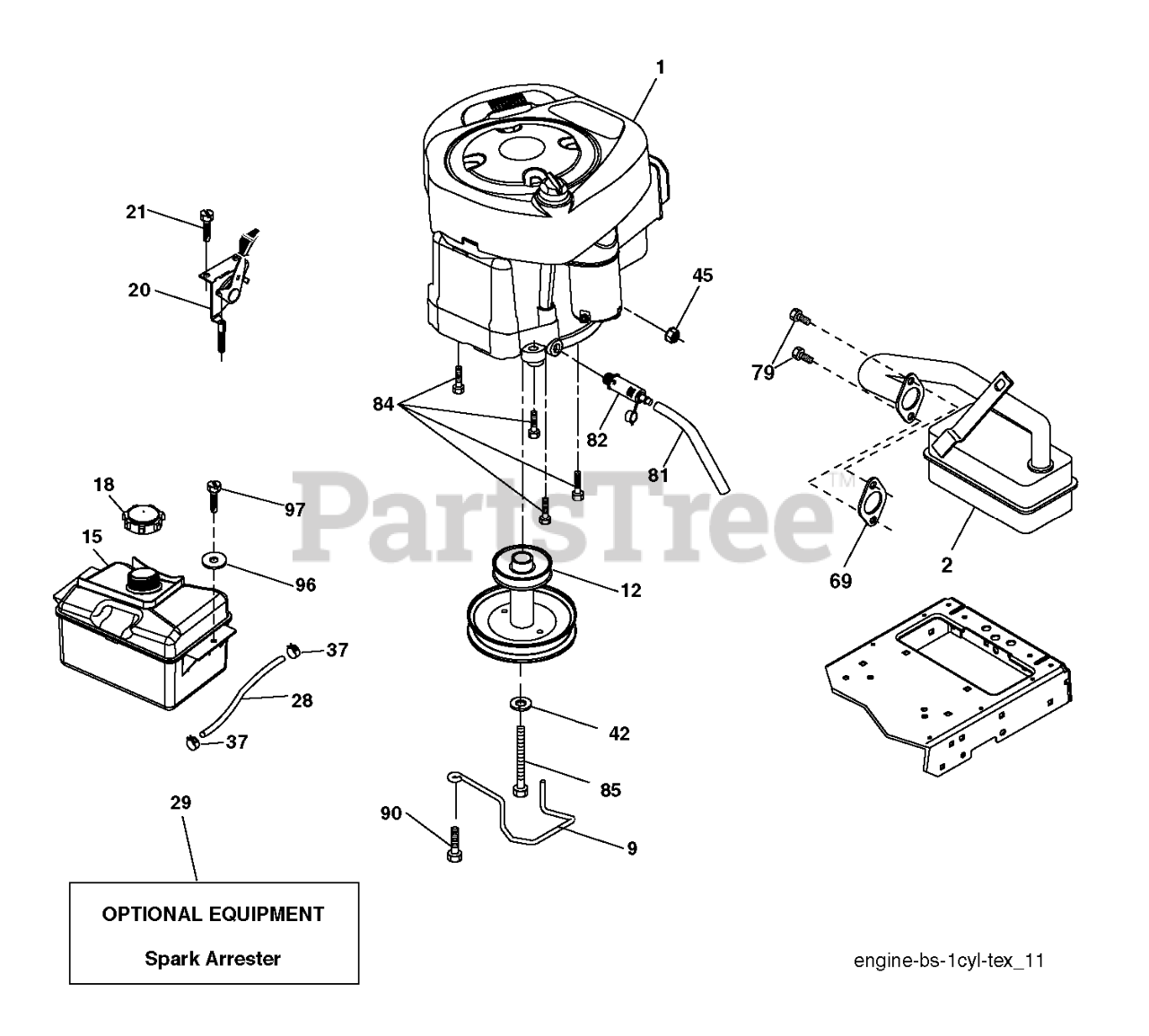

ENGINE Parts Diagram

  • Title

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 20+

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532179758

MUFFLER.B&S.MODEL.21.11HP.OHV

$45.99

$

In Stock, Qty 20+

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 20+

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

1

000000000

Note: Engine BS Model No. 219807-1210-B1

$

$

Not available

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$13.99

$

In Stock, Qty 6

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

In Stock, Qty 11

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 14

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

15

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, Qty 13

0

18

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 20+

0

12

Husqvarna 532140186

PULLEY.ENG.CL.MECH.SLVR.LT/YT

$113.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

96

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, Qty 20+

0
