CT 12542 G - Electrolux/AYP Lawn Tractor (1995) WHEELS/TIRES Parts Diagram

Lawn Tractor

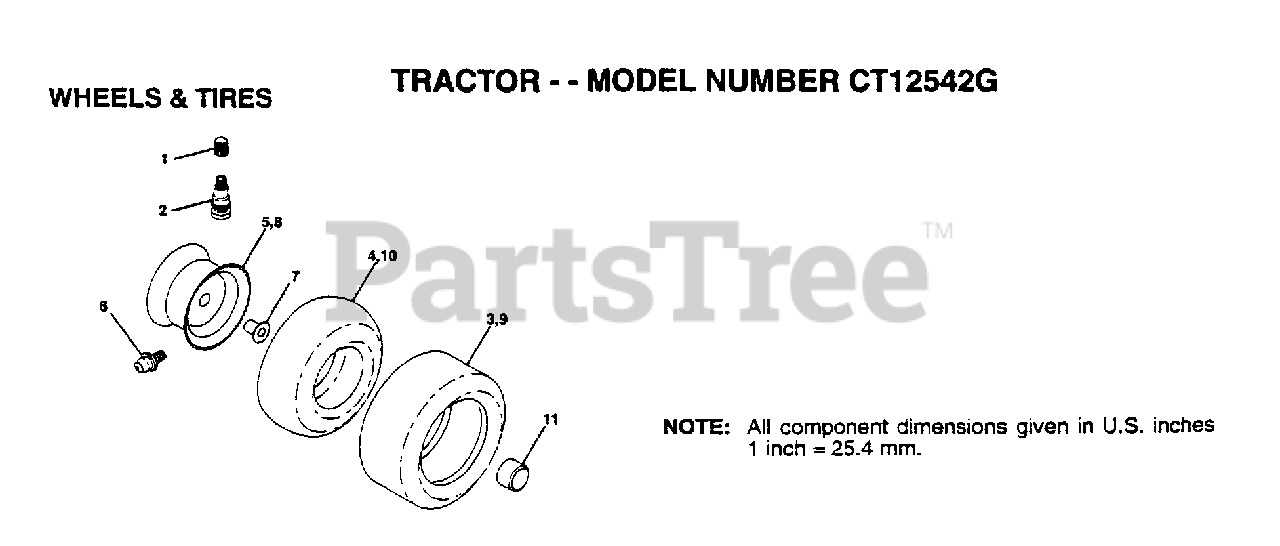

WHEELS/TIRES Parts Diagram

  • Title
1

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

2

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 106222X

SUB= 122073X
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 7

0

5

Electrolux/AYP 106732X473

"RIM.ASM.6""FRONT"

$

$

Not available

6

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 106108X473

"RIM.ASM.8""REAR"

$

$

Not available

9

Electrolux/AYP 106268X

SUB= 122074X
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 7152J

TUBE.18X9.5-8
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

Electrolux/AYP 144334

SEALANT.TIRE 10 OZ. TUBE
(Superseded to 532144334)

$

$

Not available
