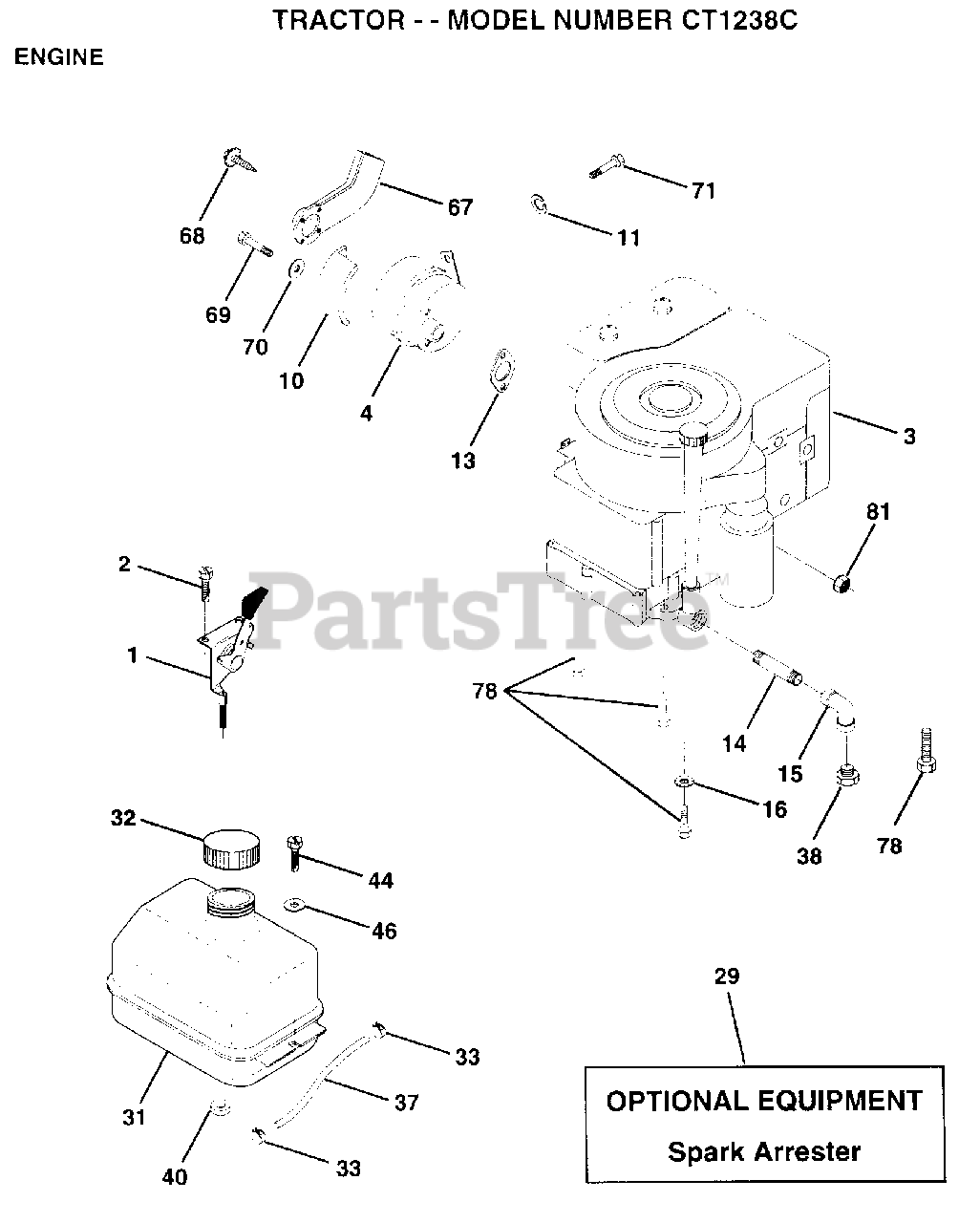

CT 1238 C - Electrolux/AYP Lawn Tractor (1996) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 132771

THROTTLE CONTROL

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

Electrolux/AYP 282707

ENG B&S 10-12.5HP PWRBLT DC

$

$

Not available

4

Electrolux/AYP 101273M

MUFFLER LTV
(Superseded to 583638801)

$72.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 101159L

SHIELD HEAT LTV
(Superseded to 583638401)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 272293

GASKET ENG 1 313 LD TIN PLATED
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 13280324

PIPE NIPPLE
(Superseded to 813280324)

$

$

Not available

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 109202X

TANK.FUEL.LT.
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 137040

LINE FUEL
(Superseded to 532137040)

$6.49

$

Usually ships in 3-10 days

0

38

CHECK WITH SUPPLIER

$

$

Not available

40

Murray 124028X

SUB= 532124028

$

$

Not available

44

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 108767X

DEFLECTOR MUFFLER
(Superseded to 583655701)

$42.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

69

Electrolux/AYP 74780556

"BOLT,HEX"
(Superseded to 583614601)

$3.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 19111012

WASHER T
(Superseded to 819111012)

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 71110408

BOLT HXHD FIN
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

81

Electrolux/AYP 128861

NUT
(Superseded to 539128861)

$31.99

$

Usually ships in 3-10 days

0
