CT 1236 A - Electrolux/AYP Lawn Tractor (1991) BRAKE/REAR MOWER LIFT Parts Diagram

Lawn Tractor

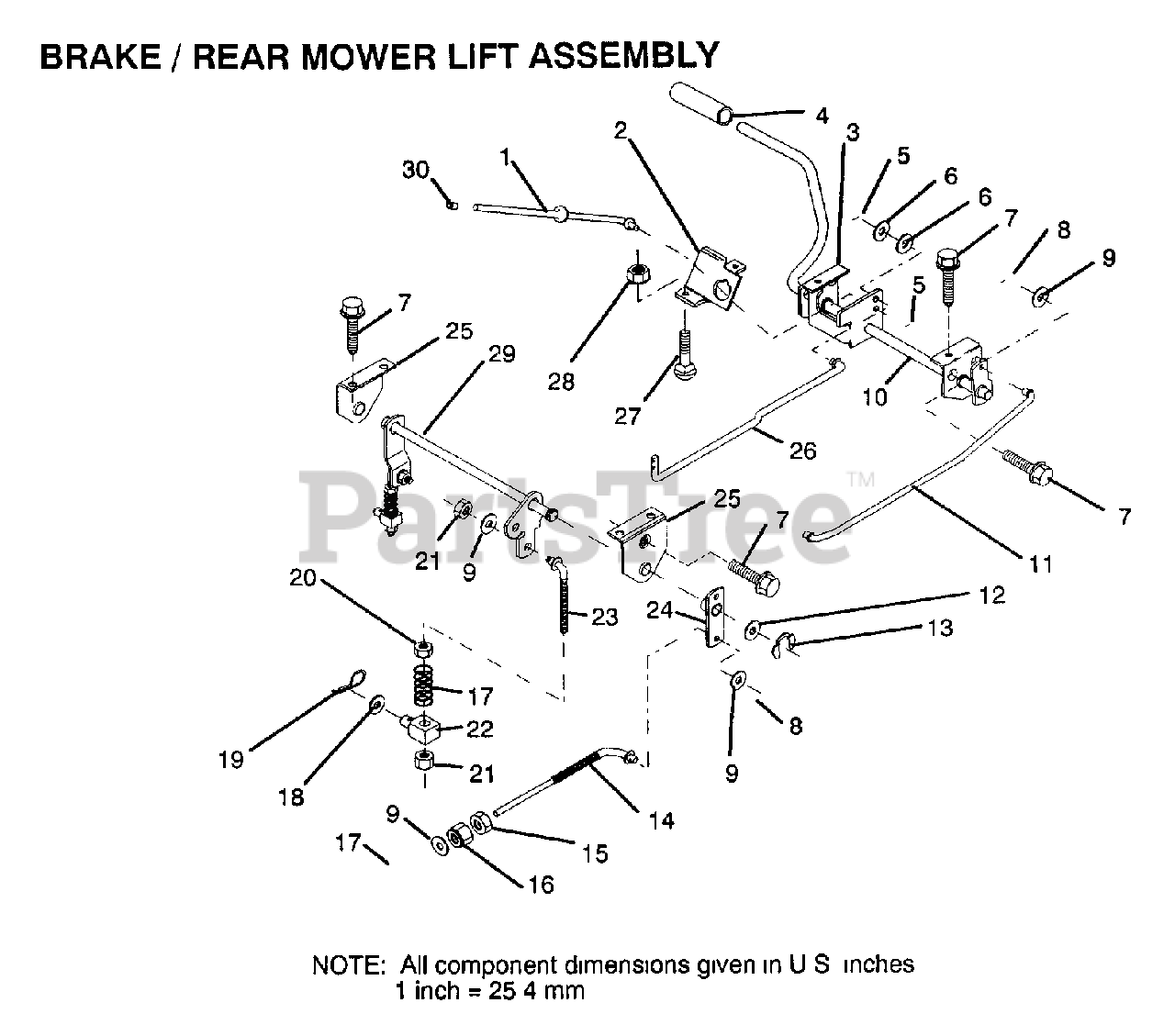

BRAKE/REAR MOWER LIFT Parts Diagram

  • Title
1

Electrolux/AYP 123436X

"ROD,PARK BRAKE"
(Superseded to 532123436)

$

$

Not available

2

Electrolux/AYP 123437X

"BRKT,PARK BRAKE"
(Superseded to 532123437)

$

$

Not available

3

Electrolux/AYP 122504X

"BRKT,CLU PEDAL LH"
(Superseded to 532122504)

$

$

Not available

4

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

7

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

10

$

$

Not available

11

Electrolux/AYP 123543X

"ROD,FRT BRAKE"
(Superseded to 532123543)

$

$

Not available

12

Electrolux/AYP 19251816

WASHER T
(Superseded to 819251816)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 12000034

KLIP RING
(Superseded to 812000034)

$

$

Not available

14

$

$

Not available

15

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 106888X

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 106204X

SUB= 132793
(Superseded to 532106204)

$

$

Not available

23

Electrolux/AYP 123672X

"LINK.LIFT.3.5"""
(Superseded to 532123672)

$

$

Not available

24

Electrolux/AYP 123641X

BRAKE PIVOT ARM
(Superseded to 532123641)

$

$

Not available

25

Electrolux/AYP 121978X

"BRKT,LIFT SHAFT"
(Superseded to 532121978)

$

$

Not available

26

Electrolux/AYP 123394X

"ROD,CLUTCH"
(Superseded to 532123394)

$

$

Not available

27

Electrolux/AYP 72110506

SUB= 72270506
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

$2.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 123547X

REAR MOWER LIFT
(Superseded to 532123547)

$

$

Not available

30

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0
