CT 10L36 C - Electrolux/AYP Lawn Tractor (1994) ENGINE/THROTTLE Parts Diagram

Lawn Tractor

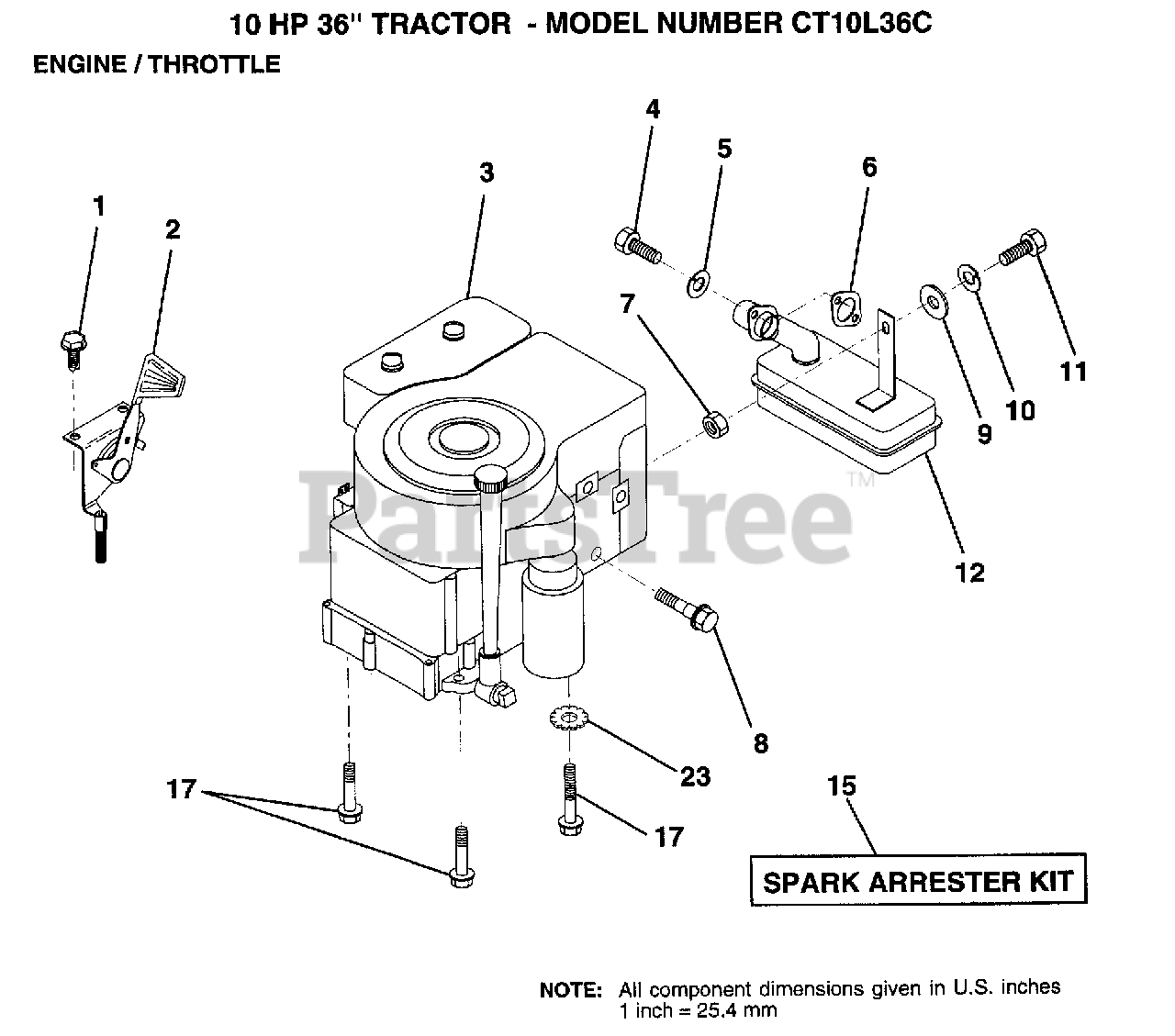

ENGINE/THROTTLE Parts Diagram

  • Title

1

Electrolux/AYP 17060408

SCREW.1/4-20X1/2
(Superseded to 817060408)

$5.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 132752

"CONTROL,THROTTLE"
(Superseded to 532132752)

$

$

Not available

3

Electrolux/AYP 28A707

ENGINE, B&S 10HP

$

$

Not available

4

Electrolux/AYP 71070512

SCREW
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

5

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 125593X

SUB= 272293

$

$

Not available

7

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 121094X

BOLT T
(Superseded to 532121094)

$2.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 19101216

WASHER

$

$

Not available

10

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

11

CHECK WITH SUPPLIER

$

$

Not available

12

Electrolux/AYP 137437

MUFFLER
(Superseded to 532137437)

$242.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

17

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0
