CSV 260 (24A-315C101) - Cub Cadet Chipper/Shredder/Vacuum (1999) Handle Parts Diagram

Chipper/Shredder/Vacuum

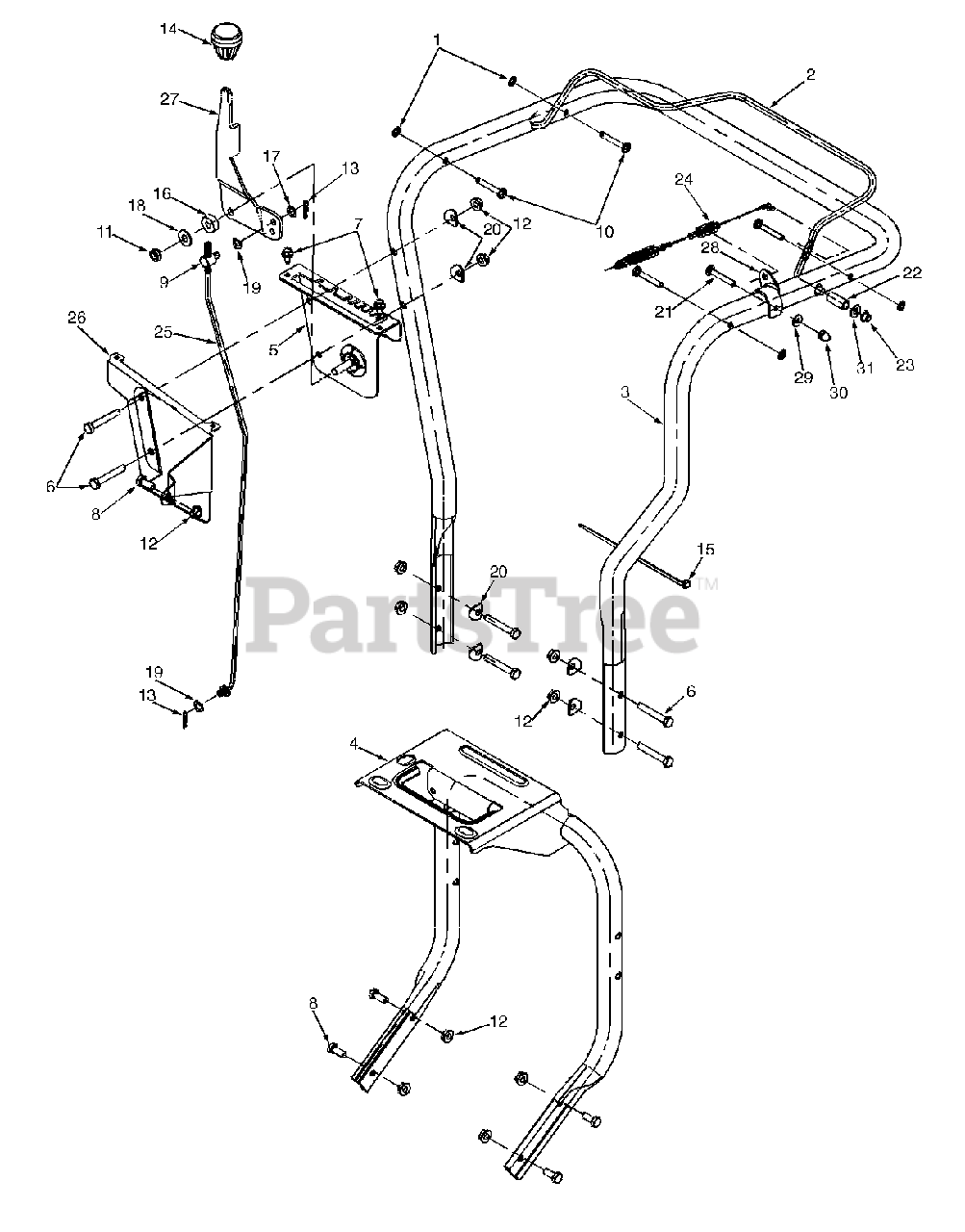

Handle Parts Diagram

  • Title

1

Cub Cadet 1539-019

Nut, Push, .25

$4.49

$

In Stock, Qty 6

0

2

Cub Cadet 747-1133-0498

Control Assembly, Clutch

$

$

Not available

3

Cub Cadet 749-1083-0498

Handle Assembly, Upper

$

$

Not available

4

Cub Cadet 649-0012-0498

Handle Assembly, Lower
(Superseded to 649-0012-0716)

$

$

Not available

5

Cub Cadet 681-0076-0498

Bracket Assembly, Shift
(Superseded to 681-0076-0637)

$

$

Not available

6

Cub Cadet 710-3103

Screw, Hex Cap, 5/16-18 x 2.0

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0896

Screw,Hex Wash Hd, 4-14 x

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

10

Cub Cadet 711-0737

Pin, Stud, .250 x 1.75
(Superseded to 911-0737)

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 712-0116

Nut, Hex Insert Jam Lock 3/8

$4.99

$

In Stock, Qty 6

0

12

Cub Cadet 712-3004A

Nut, Hex Flange Lock 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 720-0232

Knob, Shift
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

15

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

17

Cub Cadet 736-0117

Washer, Flat .385 x .62 x .6
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0413

Washer, Spring, .390 x .62

$6.99

$

In Stock, only 2 left!

0

20

Cub Cadet 736-0451

Washer, Saddle, .320 x .93

$4.49

$

In Stock, Qty 7

0

21

Cub Cadet 710-0495

Carr. Bolt 1/4-20 x 1.75" Lg.

$

$

Not available

22

Cub Cadet 750-1185

Spacer

$

$

Not available

23

Cub Cadet 726-0135

Nut, Cap Speed

$6.99

$

In Stock, only 1 left!

0

24

Cub Cadet 746-1080

Cable, Clutch

$

$

Not available

25

Cub Cadet 747-0626

Rod, Shift

$

$

Not available

26

Cub Cadet 781-0626-0498

Cover, Shift

$

$

Currently unavailable

27

Cub Cadet 784-0297A

Handle, Shift

Variations

Cub Cadet 784-0297A-0483

SHIFT HANDLE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0297A-0498

SHIFT HANDLE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0297A-0662

HANDLE-SHIFT (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0297A-0716

HANDLE-SHIFT (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

28

Cub Cadet 781-0157

Bracket, Cable Mtg.

Variations

Cub Cadet 781-0157-0637

BRACKET CABLE MGT - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 736-3020

Washer, Flat .271 x .63 x .65

$6.99

$

In Stock, Qty 9

0

30

Cub Cadet 712-0442

Nut, Lock, Acorn 1/4-20

$6.99

$

In Stock, only 4 left!

0

31

Cub Cadet 736-0275

Washer, Flat 5/16

$6.99

$

Usually ships in 3-6 days

0
