CSV 260 (24A-315C101) - Cub Cadet Chipper/Shredder/Vacuum (1998) Impeller Parts Diagram

Chipper/Shredder/Vacuum

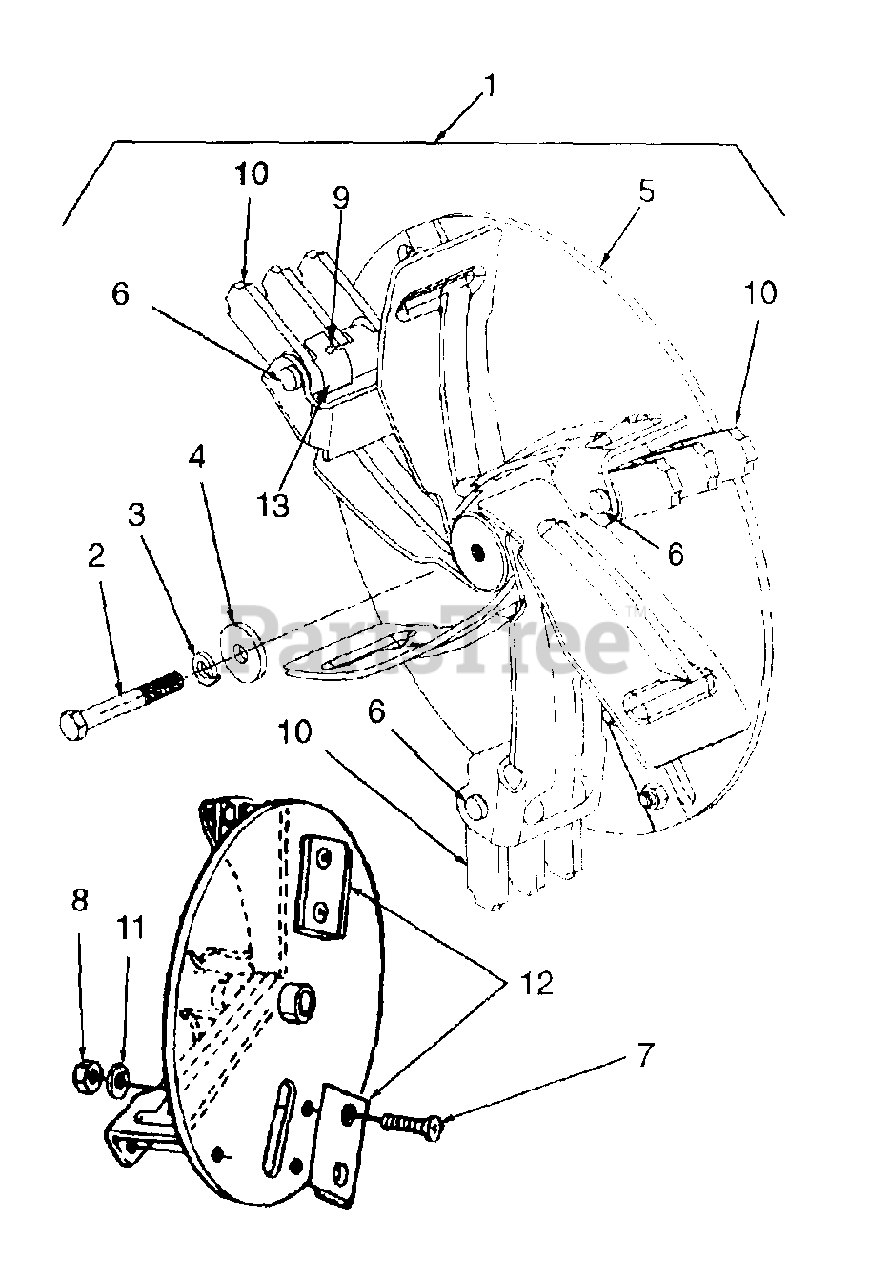

Impeller Parts Diagram

  • Title

1

Cub Cadet 681-0078

Impeller Ass'y, Complete
(Superseded to 981-04091)

Note: Includes Ref. Nos. 5 thru 13

$533.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-1273

Screw, Hex Cap, 3/8-24 x 2.75 GR5

$7.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-0217

Washer, Lock, 3/8 Heavy Duty 1

$4.49

$

In Stock, Qty 6

0

4

Cub Cadet 736-0247

Washer, Flat, .406 x 1-1/4 HD1

$9.49

$

In Stock, Qty 12

0

5

Cub Cadet 681-0052

Impeller Assembly
(Superseded to 981-04091)

$533.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 711-0833B

Pin, Clevis
(Superseded to 911-0833B)

$12.99

$

In Stock, only 4 left!

0

7

Cub Cadet 710-1054

Screw, Flat Hd. Cap, 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0411

Nut, Hex Insert Lock, 5/16-24

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 715-0166

Pin, Spirol, 5/32 x 1.125

$6.99

$

In Stock, Qty 19

0

10

Cub Cadet 719-0329

Blade, Flail

$31.99

$

In Stock, only 4 left!

0

11

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 742-0544

Blade, Chipper
(Superseded to 942-0544B)

$89.99

$

In Stock, Qty 6

0

13

Cub Cadet 781-0735

Pin Retaining Clip

$4.49

$

In Stock, Qty 20+

0
