CSV 260 (24A-315C101) - Cub Cadet Chipper/Shredder/Vacuum (1998) Height Adjustment Parts Diagram

Chipper/Shredder/Vacuum

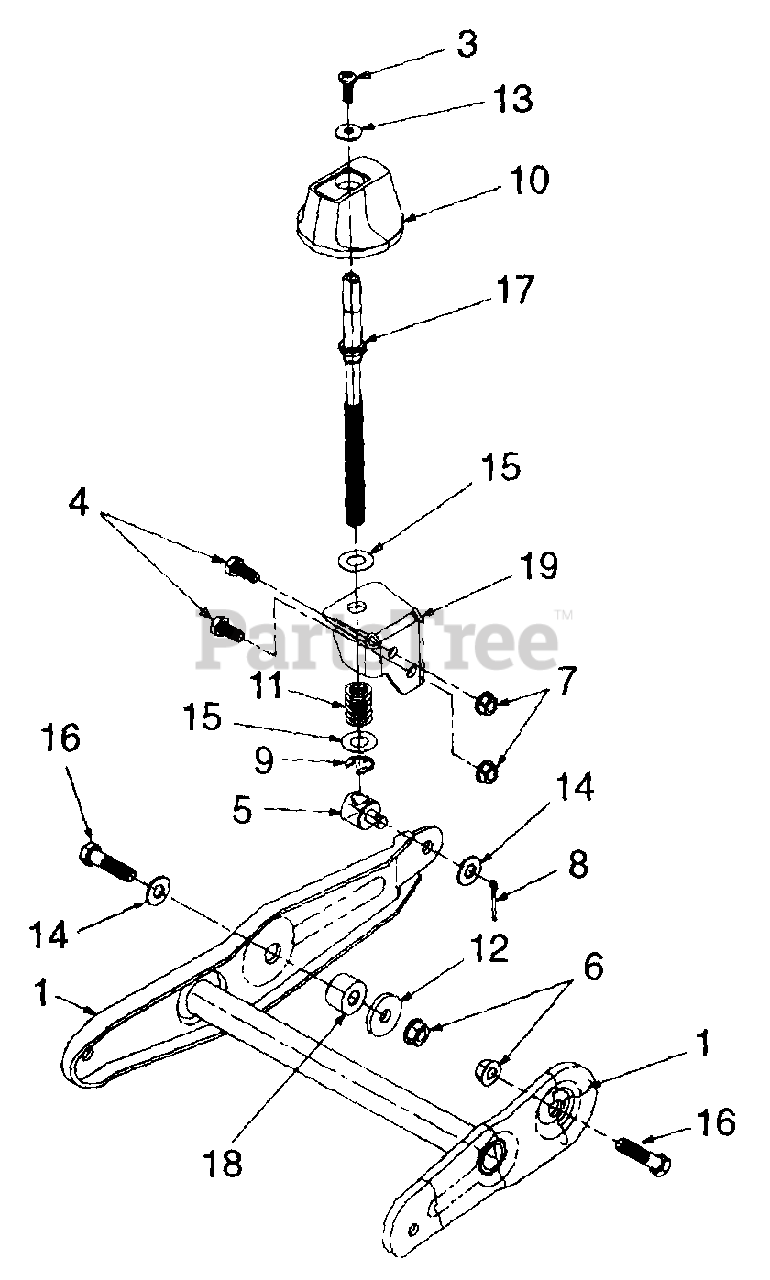

Height Adjustment Parts Diagram

  • Title

1

Cub Cadet 681-0096-0498

Bracket Ass'y, Wheel Pivot

$

$

Not available

3

Cub Cadet 710-0924

Screw, Pan Hd Mach, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 711-1041

Ferrule, Adjustment

$

$

Not available

6

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0115

Pin, Cotter, 1/8 x 1.0

$3.99

$

In Stock, only 2 left!

0

9

Cub Cadet 716-0104

E-Ring, .50 Dia
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 720-0236

Knob
(Superseded to 920-0236)

$18.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-0645

Spring, Compression
(Superseded to 932-0645)

$2.99

$

In Stock, only 4 left!

0

12

Cub Cadet 736-0247

Washer, Flat, .406 x 1-1/4

$9.49

$

In Stock, Qty 14

0

13

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0369

Washer, Flat, .508 x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 738-0955

Shoulder Bolt, .75 x .43: 3/8-16

$

$

Not available

17

Cub Cadet 747-0631

Rod, Height Adjustment

$

$

Not available

18

Cub Cadet 711-0242

Spacer, .380 ID x 1.0 OD x .32 Lg

$4.49

$

In Stock, Qty 9

0

19

Cub Cadet 781-0605-0498

Bracket, Height Adj

$

$

Currently unavailable
