CSV 260 (24A-315C101) - Cub Cadet Chipper/Shredder/Vacuum (1998) Drive, Frame Parts Diagram

Chipper/Shredder/Vacuum

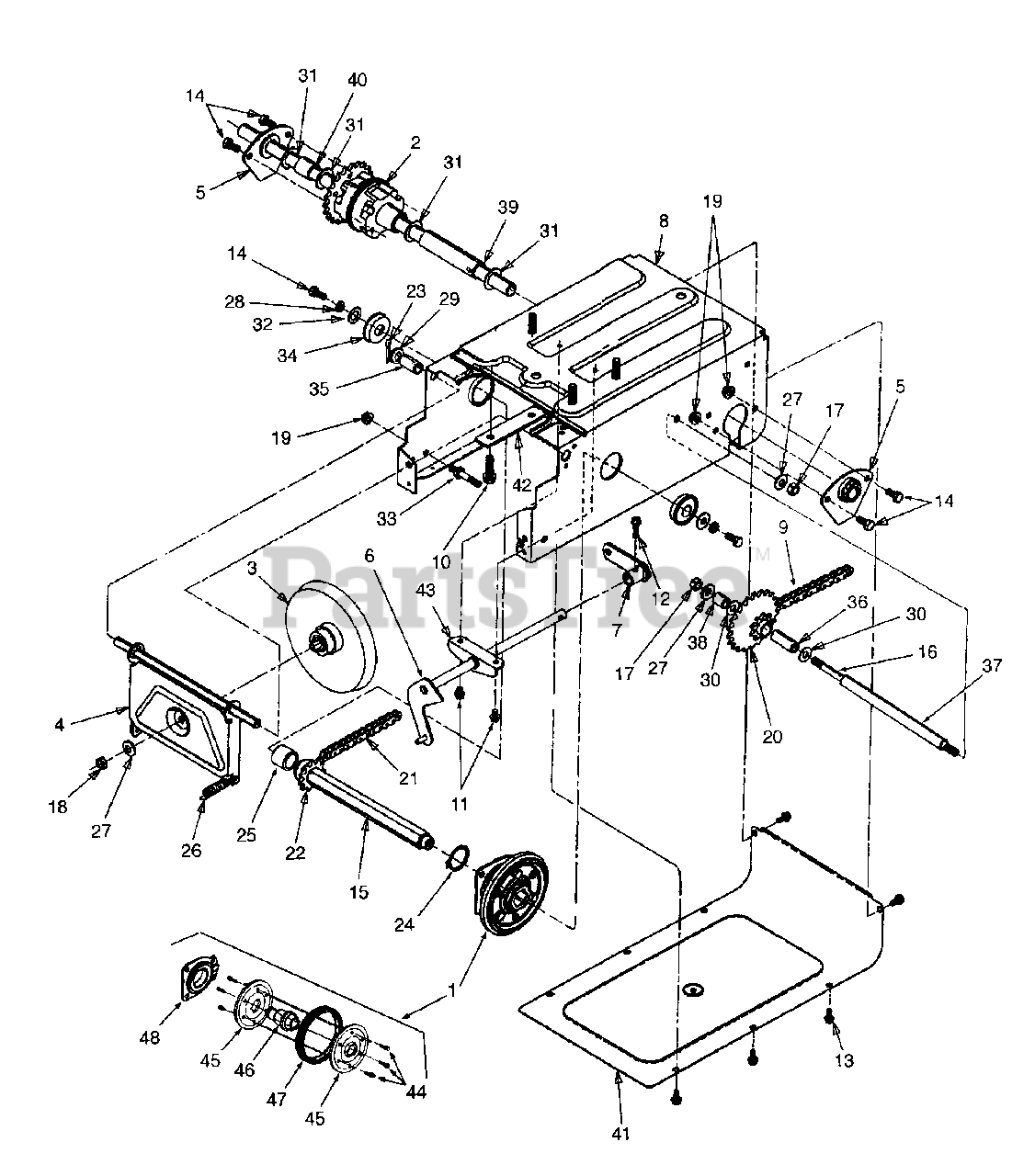

Drive, Frame Parts Diagram

  • Title

1

Cub Cadet 684-0042A

Friction Wheel Ass'y Complete
(Superseded to 984-0042C)

$138.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618-0168

Differential Ass'y Complete

$

$

Not available

3

Cub Cadet 656-0012A

Friction Disc Assembly
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 9

0

4

Cub Cadet 681-0055

Bracket Ass'y, Frctn Wheel Supt
(Superseded to 681-0055-0637)

$

$

Not available

5

Cub Cadet 681-0058

Bracket Ass'y, Axle

$

$

Not available

6

Cub Cadet 681-0082

Shaft Ass'y, Shift

$

$

Not available

7

Cub Cadet 681-0072

Arm Ass'y, Shift

Variations

Cub Cadet 681-0072-0637

SHIFT ARM (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 681-0081-0498

Frame Assembly

$

$

Not available

9

Cub Cadet 713-0374

Chain, #420 x 36 Lnks

$25.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0502A

Screw, Hex Wash Hd Tapp 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0653

Screw, Hex Wash Hd Tapp 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

12

Cub Cadet 710-0788

Screw, Hex Wash Hd Tapp 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

13

Cub Cadet 710-0896

Screw, Hex Wash Hd Tapp 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-1073

Hex Shaft

$

$

Not available

16

Cub Cadet 711-1028

Jack Shaft

$

$

Not available

17

Cub Cadet 712-0241

Nut, Hex, 3/8-24

$4.49

$

In Stock, Qty 13

0

18

Cub Cadet 712-0711

Nut, Hex Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 713-0330

Sprocket Ass'y, 9T & 22T

$

$

Not available

21

Cub Cadet 713-0284

Chain, #41 x 36 Lnks

$24.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 713-0413

Sprocket, 10T

$12.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 714-0111

Pin, Cotter, 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

24

Cub Cadet 716-0102

Ring, Snap, 1.0 Dia

$5.49

$

In Stock, Qty 20+

0

25

Cub Cadet 750-0998

Spacer, .675 x 1.0 x 1.53

$

$

Not available

26

Cub Cadet 732-0209

Spring, Extension
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

27

Cub Cadet 736-0105

Washer, Bell, .406 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0160

Washer, Flat, .536 x .930 x .05

$4.49

$

In Stock, only 2 left!

0

30

Cub Cadet 736-0267

Washer, Flat, .385 x .87 x .06

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 736-0287

Washer, Flat, .793 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-3089

Washer, Flat, .345 x 1.0 x .100

$

$

Not available

33

Cub Cadet 738-0908

Bolt, Idler

$

$

Not available

34

Cub Cadet 741-0563

Bearing, Ball
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

35

Cub Cadet 748-0382

Spacer, .508 x .75 x .94

$

$

Not available

36

Cub Cadet 750-0351

Sleeve, .380 x .623 x 1.5

$

$

Not available

37

Cub Cadet 750-0978

Spacer, .407 x .625 x 7.86

$

$

Not available

38

Cub Cadet 750-0979

Spacer, .407 x .625 x .71

$

$

Not available

39

Cub Cadet 750-0980

Spacer, .782 x 1.0 x 4.11

$

$

Not available

40

Cub Cadet 750-0981

Spacer, .782 x 1.0 x .99

$

$

Not available

41

Cub Cadet 781-0612A-0498

Cover, Frame Bottom

$

$

Not available

42

Cub Cadet 781-0638A

Plate, Frame Reinforcement

Variations

Cub Cadet 781-0638A-0483

REINFORCEMENT PLATE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0638A-0637

PLATE-REINFORCEMEN - POWDER BLACK (0637)

$

$

Not available

$

$

43

Cub Cadet 784-5590-0498

Bracket, Frame Shift

$

$

Currently unavailable

44

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 784-5617

Plate, Friction Wheel

$

$

Currently unavailable

46

Cub Cadet 718-0301A

Hub, Friction Wheel
(Superseded to 984-0042C)

$138.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 735-0243

Wheel, Rubber Friction
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0

48

Cub Cadet 618-0063

Bearing Ass'y, Friction Wheel

$92.99

$

Usually ships in 3-6 days

0
