CSV 260 (24A-315C101) - Cub Cadet Chipper/Shredder/Vacuum (1998) Chute Parts Diagram

Chipper/Shredder/Vacuum

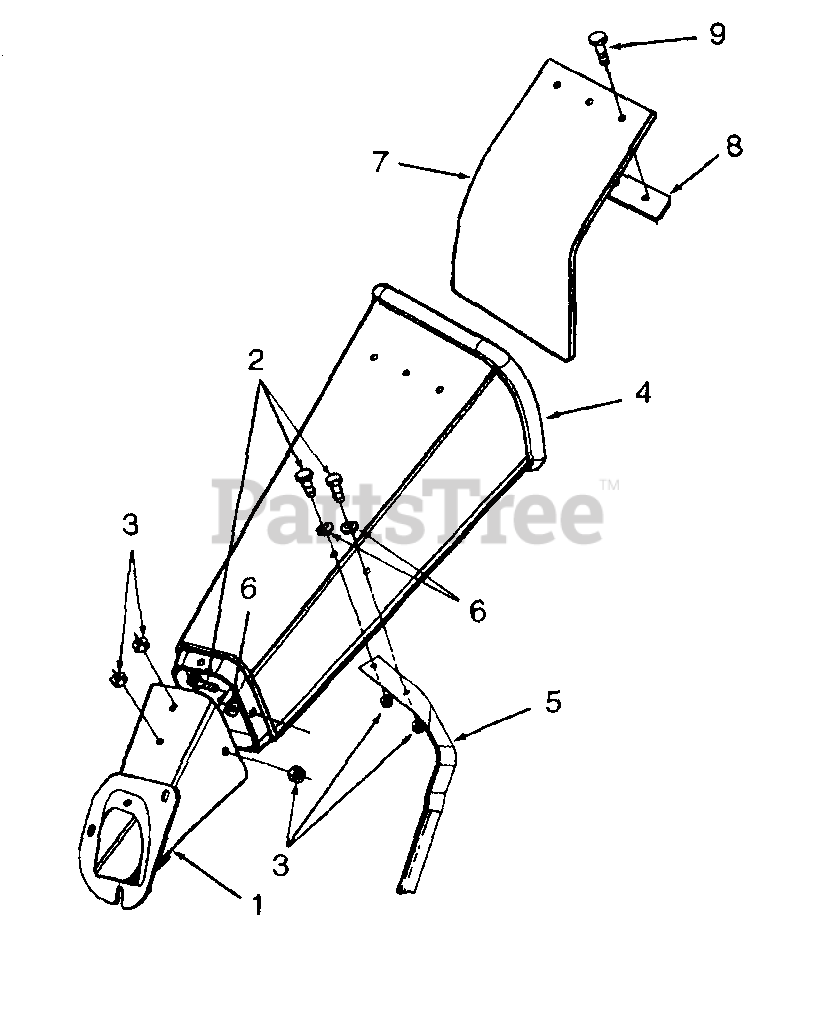

Chute Parts Diagram

  • Title

1

Cub Cadet 681-0068-0498

Chute Assembly, Chipper
(Superseded to 681-0068A)

$177.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 x .625
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 731-1574

Chute, Chipper
(Superseded to 731-1574A)

$202.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 781-0625-0498

Bracket, Chipper Chute Support
(Superseded to 781-0625-0637)

$

$

Not available

6

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .63

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 735-0249

Flap, Chipper Chute
(Superseded to 735-0249A)

$24.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 781-0633

Strip, Chute Flap

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 728-0175

Rivet, Pop, .156 x .504

$4.99

$

In Stock, only 4 left!

0

Cub Cadet 731-1617

Tamper Plug

Note: (Optional - Not Shown)

$139.99

$

Usually ships in 3-6 days

0
