CSV 260 (24A-315C100) - Cub Cadet Chipper/Shredder/Vacuum Engine (2001) Engine Parts Diagram

Chipper/Shredder/Vacuum Engine

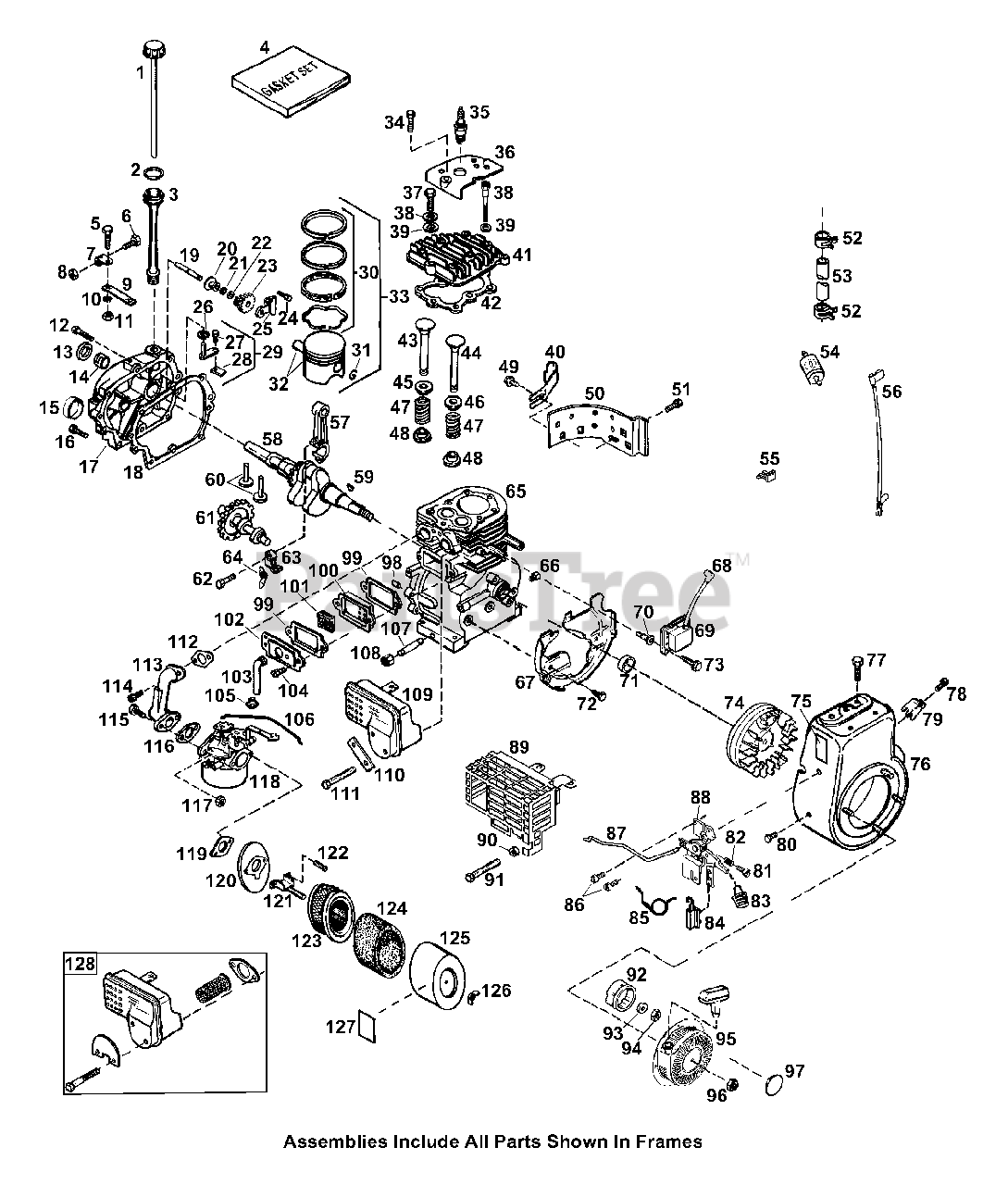

Engine Parts Diagram

  • Title

1

Cub Cadet TC-36205

Dipstick

$10.99

$

In Stock, only 1 left!

0

2

Cub Cadet TC-35499

O Ring

$1.49

$

In Stock, only 3 left!

0

3

Cub Cadet TC-35554

Oil Fill Tube

$19.99

$

In Stock, only 1 left!

0

4

Cub Cadet TC-36450B

Gasket Set

Note: (Incl. part #27272A (1), 27896A (2), 27915A (1), 29673 (1), 33263 (1), 33629 (1), 34698A (1), 35262 (1), 36448 (1))

$

$

Not available

5

Cub Cadet TC-651028

Screw, Torx T-15, 8-32 x 3/8"

$1.99

$

In Stock, only 4 left!

0

6

Cub Cadet TC-29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 4 left!

0

7

Cub Cadet TC-29916

Governor Lever Clamp

$1.99

$

In Stock, only 2 left!

0

8

Cub Cadet TC-29216

Lock Nut, 10-32

$1.99

$

In Stock, only 3 left!

0

9

Cub Cadet TC-33454

Governor Lever
(Superseded to TC-33454A)

$10.99

$

In Stock, only 1 left!

0

10

Cub Cadet TC-29918

Lock Washer

$1.99

$

In Stock, Qty 5

0

11

Cub Cadet TC-30322

Lock Nut, 8-32

$1.99

$

Usually ships in 3-12 days

0

12

Cub Cadet TC-650833

Screw, 1/4-20 x 1-3/16"

$1.99

$

Usually ships in 3-12 days

0

13

Cub Cadet TC-35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

14

Cub Cadet TC-35377

Crankshaft Bushing

$11.99

$

In Stock, only 3 left!

0

15

Cub Cadet TC-28926

Camshaft Seal

$9.49

$

In Stock, only 1 left!

0

16

Cub Cadet TC-650832

Screw, 1/4-20 x 1-11/16"

$

$

Not available

17

Cub Cadet TC-35445A

Cylinder Cover

$

$

Not available

18

Cub Cadet TC-35262A

Cylinder Cover Gasket
(Superseded to TC-37342)

$11.99

$

In Stock, only 1 left!

0

19

Cub Cadet TC-31845

Governor Shaft

$

$

Not available

20

Cub Cadet TC-30588A

Governor Spool

$1.99

$

In Stock, only 4 left!

0

21

Cub Cadet TC-30590A

Washer

$1.99

$

In Stock, Qty 7

0

22

Cub Cadet TC-29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

23

Cub Cadet TC-35378

Governor Gear Assy.

$3.99

$

Usually ships in 3-12 days

0

24

Cub Cadet TC-650836

Screw, 10-24 x 1/2"

$

$

Not available

25

Cub Cadet TC-33369

Governor Gear Bracket

$8.49

$

In Stock, only 1 left!

0

26

Cub Cadet TC-29642

Retaining Ring

$100.99

$

In Stock, only 2 left!

0

27

Cub Cadet TC-650494

Screw, 6-40 x 5/16"

$1.99

$

Usually ships in 3-12 days

0

28

Cub Cadet TC-30700

Governor Yoke

$1.99

$

In Stock, only 1 left!

0

29

Cub Cadet TC-30699C

Governor Rod

Note: (Incl. 27 & 28)

$17.99

$

In Stock, only 1 left!

0

30

Cub Cadet TC-40013

Ring Set (Std.)

$28.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-40014

Ring Set (.010" OS)

$43.99

$

Usually ships in 3-12 days

0

31

Cub Cadet TC-27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

32

Cub Cadet TC-40009

Piston & Pin Assy. (Std.)
(Superseded to TC-40049)

Note: (Incl. 31)

$

$

Not available

Cub Cadet TC-40010

Piston & Pin Assy. (.010" OS)

Note: (Incl. 31)

$

$

Not available

33

Cub Cadet TC-40011

Piston, Pin & Ring Set (Std.)
(Superseded to TC-40049)

$

$

Not available

Cub Cadet TC-40012

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

34

Cub Cadet TC-650802

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, Qty 5

0

35

Cub Cadet TC-33636

Resistor Spark Plug (RJ17LM)
(Superseded to 759-3331)

$3.99

$

In Stock, only 3 left!

0

36

Cub Cadet TC-33272B

Cylinder Head Cover
(Superseded to TC-33272D)

$7.49

$

Usually ships in 3-12 days

0

37

Cub Cadet TC-650694A

Screw, 5/16-18 x 2"

$3.49

$

In Stock, Qty 20+

0

38

Cub Cadet TC-650690

Belleville Washer
(Superseded to TC-730324)

$9.99

$

In Stock, only 1 left!

0

39

Cub Cadet TC-650691

Washer

$1.99

$

Usually ships in 3-12 days

0

40

Cub Cadet TC-35540

Fill Tube Clip

$1.99

$

In Stock, only 2 left!

0

41

Cub Cadet TC-36449

Cylinder Head

$

$

Not available

42

Cub Cadet TC-36448

Cylinder Head Gasket

$9.99

$

In Stock, only 1 left!

0

43

Cub Cadet TC-34035

Intake Valve (Std.)

Note: (Incl. 48)

$15.99

$

In Stock, only 1 left!

0

44

Cub Cadet TC-27880A

Exhaust Valve (1/32" OS)

Note: (Incl. 48)

$

$

Not available

45

Cub Cadet TC-35862

Valve Spring Cap

$9.49

$

Usually ships in 3-12 days

0

46

Cub Cadet TC-27882

Valve Spring Cap

$1.99

$

In Stock, only 4 left!

0

47

Cub Cadet TC-27881

Valve Spring

$3.99

$

In Stock, only 2 left!

0

48

Cub Cadet TC-32581

Valve Spring Keeper

$6.49

$

In Stock, Qty 10

0

49

Cub Cadet TC-650128

Screw, 10-24 x 1/2"

$5.49

$

Usually ships in 3-12 days

0

50

Cub Cadet TC-33273A

Blower Housing Extension

$7.49

$

Usually ships in 3-12 days

0

51

Cub Cadet TC-30063

Screw, Torx T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

52

Cub Cadet TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

53

Cub Cadet TC-30705

Fuel Line

$16.99

$

In Stock, Qty 8

0

54

Cub Cadet TC-34279B

Fuel Filter

Note: (Incl. 52)

$13.99

$

In Stock, only 1 left!

0

55

Cub Cadet TC-29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

56

Cub Cadet TC-35187

Ground Wire

$

$

Not available

57

Cub Cadet TC-36897

Connecting Rod Assy.
(Superseded to TC-36897A)

Note: (Incl. 62 & 64)

$48.99

$

In Stock, only 1 left!

0

58

Cub Cadet TC-36283A

Crankshaft

$162.99

$

Usually ships in 3-12 days

0

59

Cub Cadet TC-32589

Flywheel Key

$1.49

$

In Stock, Qty 6

0

60

Cub Cadet TC-34034

Valve Lifter
(Superseded to TC-34034A)

$10.99

$

In Stock, only 3 left!

0

61

Cub Cadet TC-36569

Camshaft (MCR)

$141.99

$

Usually ships in 3-12 days

0

62

Cub Cadet TC-651033

Connecting Rod Bolt

$

$

Not available

63

Cub Cadet TC-36897

Connecting Rod Assy.
(Superseded to TC-36897A)

Note: (Incl. 62 & 64)

$48.99

$

In Stock, only 1 left!

0

64

Cub Cadet TC-36896

Oil Dipper

$1.99

$

Usually ships in 3-12 days

0

65

Cub Cadet TC-35385

Cylinder

Note: (Incl. 98 & 71)

$311.99

$

Usually ships in 3-12 days

0

66

Cub Cadet TC-27642

Oil Drain Plug

$1.99

$

In Stock, only 2 left!

0

67

Cub Cadet TC-36460

Blower Housing Baffle
(Superseded to TC-37853)

$11.99

$

In Stock, only 1 left!

0

68

Cub Cadet TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 3 left!

0

69

Cub Cadet TC-35135

Solid State Ignition
(Superseded to TC-35135B)

$62.99

$

Usually ships in 3-12 days

0

70

Cub Cadet TC-651024

Solid State Mounting Stud

$3.99

$

In Stock, only 2 left!

0

71

Cub Cadet TC-35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

72

Cub Cadet TC-650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

73

Cub Cadet TC-651007

Screw, Torx T-15, 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

74

Cub Cadet TC-611090

Flywheel

$166.99

$

Usually ships in 3-12 days

0

75

Cub Cadet TC-35703

Throttle Decal

$2.49

$

Usually ships in 3-12 days

0

76

Cub Cadet TC-33375D

Blower Housing

$

$

Not available

77

Cub Cadet TC-650788

Screw, 5/16-18 x 3/4"

$1.99

$

In Stock, only 1 left!

0

78

Cub Cadet TC-650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, only 3 left!

0

79

Cub Cadet TC-33013

Starter Bubble Cover

$3.99

$

Usually ships in 3-12 days

0

80

Cub Cadet TC-29747B

Screw, Torx T-40, 5/16-24 x 21/32"

$1.99

$

In Stock, Qty 9

0

81

Cub Cadet TC-651029

Screw, Torx T-10, 5-40 x 7/16"

$1.99

$

In Stock, only 2 left!

0

82

Cub Cadet TC-31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

83

Cub Cadet TC-32410

Control Knob

$5.49

$

In Stock, only 4 left!

0

84

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, Qty 5

0

85

Cub Cadet TC-34663

Speed Control Spring

$1.99

$

In Stock, Qty 5

0

86

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

In Stock, only 3 left!

0

87

Cub Cadet TC-34661

Governor Link

$6.99

$

In Stock, only 4 left!

0

88

Cub Cadet TC-34677

Control Bracket

Note: (Incl. 81 & 82)

$54.99

$

In Stock, only 1 left!

0

89

Cub Cadet TC-36799A

Heat Shield

$39.99

$

Usually ships in 3-12 days

0

90

Cub Cadet TC-36908

Spacer

$

$

Not available

91

Cub Cadet TC-651036

Screw, 5/16-18 x 3-31/32"

$

$

Not available

92

Cub Cadet TC-35985B

Starter Cup
(Superseded to TC-35985C)

$13.99

$

In Stock, only 1 left!

0

93

Cub Cadet TC-650880

Lock Washer

$1.99

$

In Stock, only 3 left!

0

94

Cub Cadet TC-650881

Flywheel Nut

$1.99

$

Usually ships in 3-12 days

0

95

Cub Cadet TC-590746

Rewind Starter
(Superseded to TC-590788)

$65.99

$

Usually ships in 3-12 days

0

96

Cub Cadet TC-29752

Nut & Lock Washer, 1/4-28

$1.99

$

In Stock, only 3 left!

0

97

Cub Cadet TC-36695

Starter Decal

$2.49

$

In Stock, only 4 left!

0

98

Cub Cadet TC-27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

99

Cub Cadet TC-27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 10

0

100

Cub Cadet TC-28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

101

Cub Cadet TC-28424

Breather Element

$3.99

$

In Stock, only 3 left!

0

102

Cub Cadet TC-28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

103

Cub Cadet TC-36675A

Breather Tube

$5.49

$

In Stock, only 1 left!

0

104

Cub Cadet TC-650128

Screw, 10-24 x 1/2"

$5.49

$

Usually ships in 3-12 days

0

105

Cub Cadet TC-32446

Breather Tube Grommet

$1.99

$

In Stock, only 3 left!

0

106

Cub Cadet TC-33878

Throttle Link

$6.99

$

In Stock, only 2 left!

0

107

Cub Cadet TC-32678

Oil Drain Extension

$

$

Not available

108

Cub Cadet TC-30969

Extension Cap

$5.49

$

In Stock, only 1 left!

0

109

Cub Cadet TC-34185B

Muffler

$46.99

$

In Stock, only 1 left!

0

110

Cub Cadet TC-31588

Locking Plate

$4.99

$

In Stock, Qty 20+

0

111

Cub Cadet TC-650729

Screw, 5/16-18 x 3-3/16"

$1.99

$

In Stock, Qty 5

0

112

Cub Cadet TC-27915A

Intake Pipe Gasket

$5.99

$

In Stock, Qty 20+

0

113

Cub Cadet TC-34707

Intake Pipe

$33.99

$

Usually ships in 3-12 days

0

114

Cub Cadet TC-650378

Screw, Torx T-30, 5/16-18 x 1-1/8"

$1.99

$

In Stock, only 3 left!

0

115

Cub Cadet TC-30088A

Screw, 1/4-28 x 1"

$1.99

$

In Stock, only 2 left!

0

116

Cub Cadet TC-33263

Carburetor To Intake Pipe Gasket

$1.49

$

In Stock, Qty 20+

0

117

Cub Cadet TC-29752

Nut & Lock Washer, 1/4-28

$1.99

$

In Stock, only 3 left!

0

118

Cub Cadet TC-640112

Carburetor

Note: (Incl. 116)

$109.99

$

In Stock, only 1 left!

0

119

Cub Cadet TC-27272A

Air Cleaner Gasket

$4.49

$

In Stock, Qty 20+

0

120

Cub Cadet TC-37104

Air Cleaner Body

$

$

Not available

121

Cub Cadet TC-33267

Air Cleaner Bracket

$7.49

$

In Stock, only 1 left!

0

122

Cub Cadet TC-28820

Screw, 10-32 x 1/2"
(Superseded to TC-651081)

$4.49

$

In Stock, only 3 left!

0

123

Cub Cadet TC-33268

Air Cleaner Filter

$13.99

$

In Stock, Qty 7

0

124

Cub Cadet TC-35881

Air Cleaner Filter

$5.49

$

Usually ships in 3-12 days

0

125

Cub Cadet TC-33269A

Air Cleaner Cover

$19.99

$

In Stock, only 1 left!

0

126

Cub Cadet TC-650513

Wing Nut, 1/4-20
(Superseded to TC-650825)

$1.99

$

In Stock, only 2 left!

0

127

Cub Cadet TC-35274

Oil Instruction Decal

$2.49

$

Usually ships in 3-12 days

0

128

Cub Cadet TC-34479A

Spark Arrestor Kit

Note: (Optional)

$32.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-756327A

Short Block

$

$

Not available
