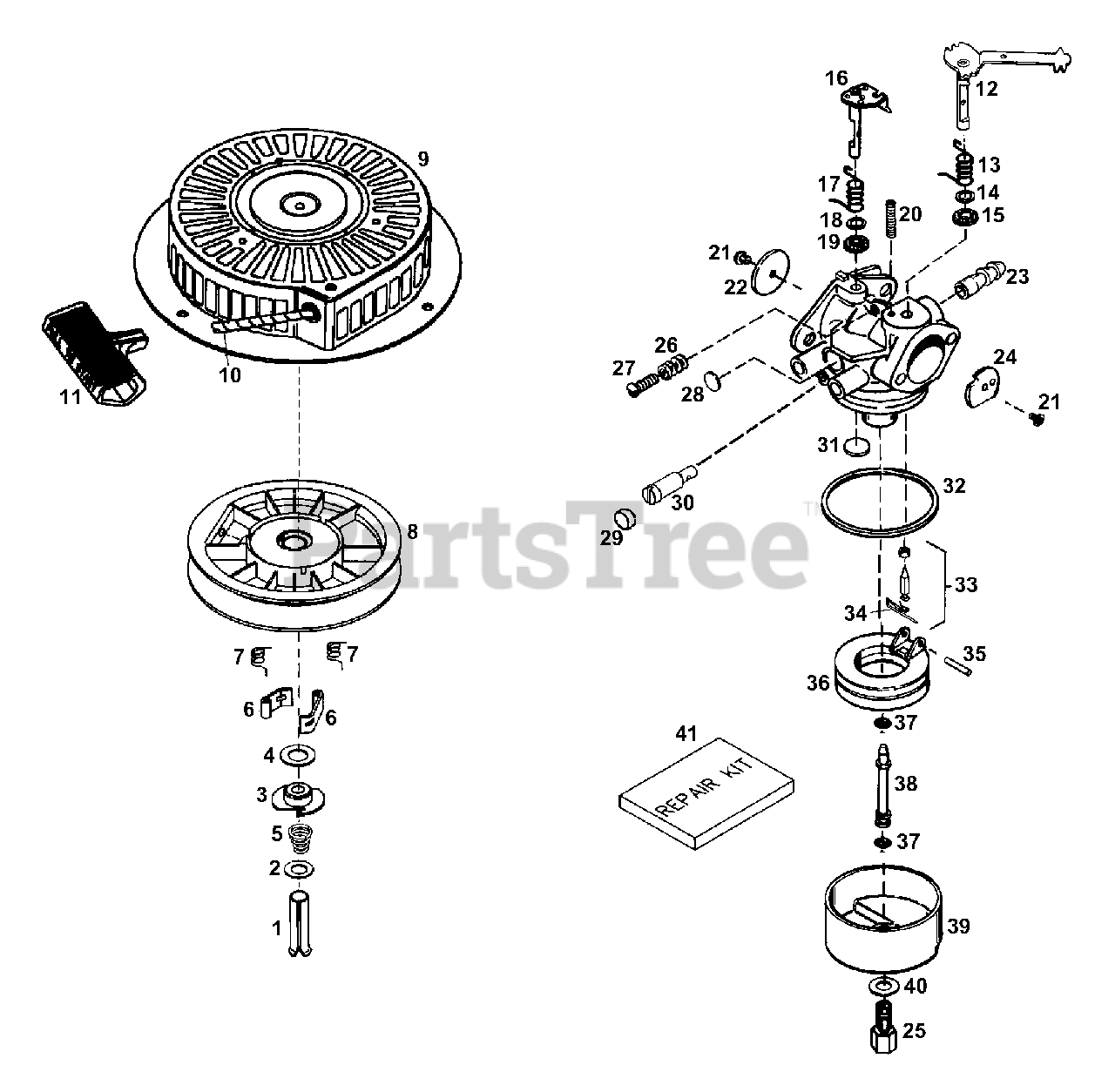

CSV 260 (24A-315C100) - Cub Cadet Chipper/Shredder/Vacuum Engine (2001) Carburetor & Starter Parts Diagram

Chipper/Shredder/Vacuum Engine

Carburetor & Starter Parts Diagram

  • Title

1

Cub Cadet TC-590599A

Spring Pin

Note: (Incl. 4)

$5.49

$

In Stock, only 3 left!

0

2

Cub Cadet TC-590600

Washer

$1.99

$

In Stock, Qty 5

0

3

Cub Cadet TC-590679

Retainer

$3.99

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-590601

Washer

$1.99

$

In Stock, only 4 left!

0

5

Cub Cadet TC-590678

Brake Spring

$3.49

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-590680

Starter Dog

$5.99

$

In Stock, Qty 6

0

7

Cub Cadet TC-590412

Dog Spring

$8.49

$

In Stock, only 2 left!

0

8

Cub Cadet TC-590681

Pulley & Rewind Spring Assembly

$

$

Not available

9

Cub Cadet TC-590747

Starter Housing Assembly

$

$

Not available

10

Cub Cadet TC-590535

Starter Rope (Length 98" x 9/64" dia.)

$9.49

$

In Stock, Qty 12

0

11

Cub Cadet TC-590701

Starter Handle

$6.49

$

In Stock, only 1 left!

0

12

Cub Cadet TC-632740

Choke Shaft & Lever Assembly

$5.99

$

Usually ships in 3-12 days

0

13

Cub Cadet TC-632043

Choke Return Spring

$2131.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 16

0

15

Cub Cadet TC-631183

Dust Seal (Choke)

$1.99

$

In Stock, Qty 7

0

16

Cub Cadet TC-631776A

Throttle Shaft & Lever Assembly

$16.99

$

Usually ships in 3-12 days

0

17

Cub Cadet TC-631970

Throttle Return Spring

$4.49

$

Usually ships in 3-12 days

0

18

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 16

0

19

Cub Cadet TC-631183

Dust Seal (Throttle)

$1.99

$

In Stock, Qty 7

0

20

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

21

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, Qty 14

0

22

Cub Cadet TC-640109

Throttle Shutter

$13.99

$

Usually ships in 3-12 days

0

23

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

24

Cub Cadet TC-631753

Choke Shutter

$1.99

$

In Stock, only 4 left!

0

25

Cub Cadet TC-640137

High Speed Bowl Nut
(Superseded to TC-640114)

$7.49

$

Usually ships in 3-12 days

0

26

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 4 left!

0

27

Cub Cadet TC-651025

Throttle Crack Screw/Idle Speed Screw

$1.99

$

In Stock, only 4 left!

0

28

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

$1.99

$

In Stock, only 1 left!

0

29

Cub Cadet TC-640053

Idle Restrictor Screw Cap
(Superseded to TC-640200)

$1.99

$

In Stock, Qty 5

0

30

Cub Cadet TC-640027

Idle Restrictor Screw

$3.99

$

In Stock, only 1 left!

0

31

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 4 left!

0

32

Cub Cadet TC-631028

Float Bowl O-Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 18

0

33

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

Note: (Incl. 34)

$6.99

$

In Stock, Qty 20+

0

34

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

35

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, Qty 10

0

36

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 7

0

37

Cub Cadet TC-632547

O-Ring, Main Nozzle Tube

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet TC-640113

Main Nozzle Tube

$6.99

$

Usually ships in 3-12 days

0

39

Cub Cadet TC-631867

Float Bowl

$3.49

$

In Stock, Qty 11

0

40

Cub Cadet TC-27110A

Bowl Nut Washer

$2.49

$

In Stock, only 3 left!

0

41

Cub Cadet TC-632760

Repair kit
(Superseded to TC-632760B)

$27.99

$

In Stock, Qty 6

0

Cub Cadet TC-631776A

Complete Carburetor

$16.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-590746

Complete Recoil Starter
(Superseded to TC-590788)

$65.99

$

In Stock, only 1 left!
