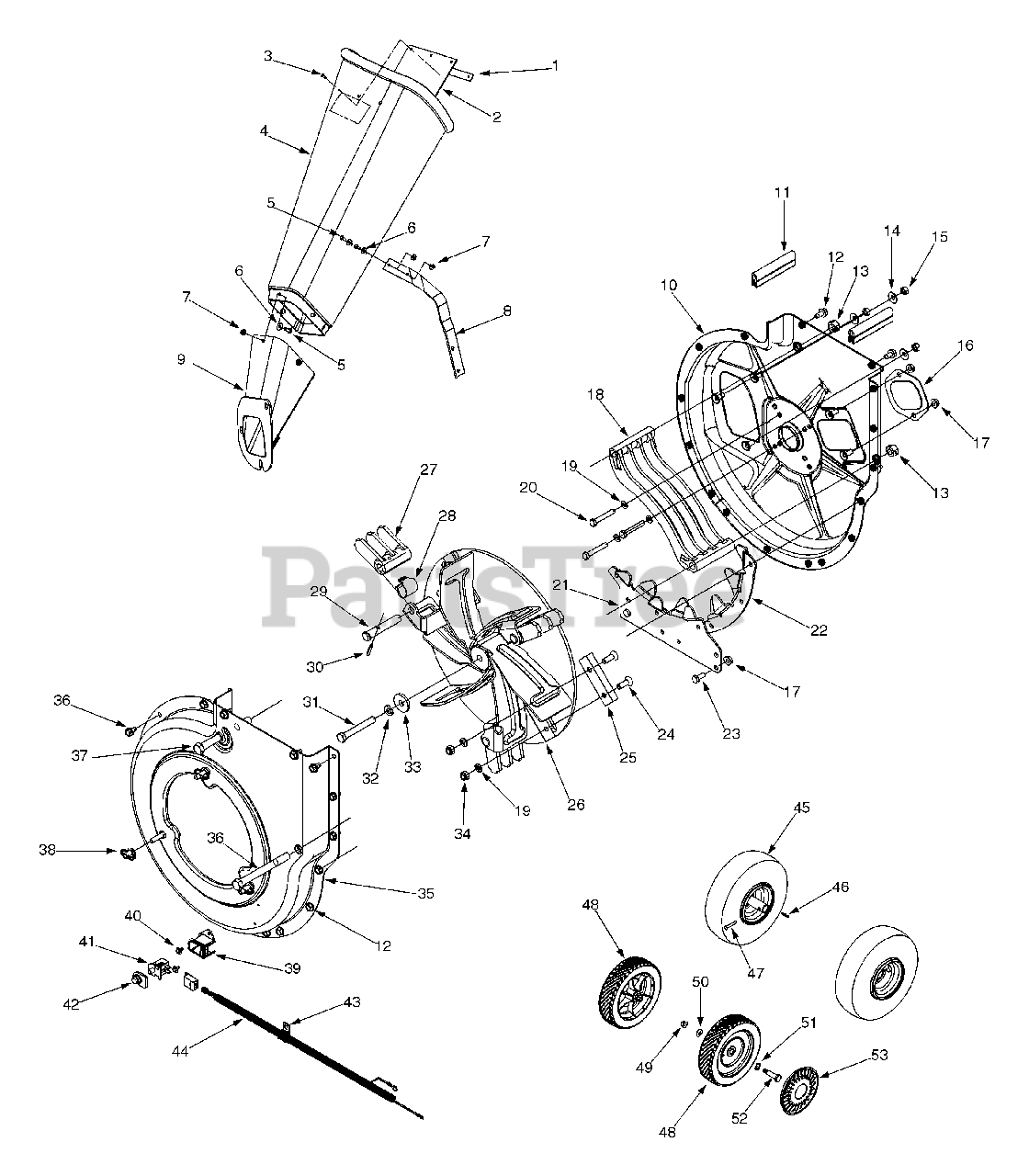

Impeller Assembly & Wheels Parts Diagram

  • Title

1

Cub Cadet 781-0633

Chute Flap Strip

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 735-0249

Chute Flap
(Superseded to 735-0249A)

$24.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 728-0175

Pop Rivet

$4.99

$

In Stock, only 4 left!

0

4

Cub Cadet 731-1574

Chipper Chute
(Superseded to 731-1574A)

$202.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0173

Flat Washer .28 ID x .74 OD

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 781-0625

Support Bracket

Variations

Cub Cadet 781-0625-0483

SUPPORT BRACKET - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0625-0498

BRACKET-SUPPORT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0625-0637

BRACKET-SUPPORT-CHIPP - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0625-0638

SUPPORT BRACKET(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0625-0662

BRACKET-SUPPORT-CHIPP - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0625-0716

USE 781-0625-0637 BRACKET-SUP - CUB YELLOW-99 (0716)

$

$

Not available

$

$

9

Cub Cadet 681-0068A

Chipper Chute Assembly

Variations

Cub Cadet 681-0068A-0483

ASM-CHUTE - CHARCOAL GRAY (0483)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068A-0638

ASM-CHUTE - MTD/TROY-BILT RED (0638)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068A-0498

CHUTE ASSY-CHIPPER - OLD CUB YELLOW (0498)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068A-0650

ASM-CHUTE - RED METALLIC (0650)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068A-0662

ASM-CHUTE - OYSTER GRAY (0662)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068A-0674

ASM-CHUTE - YARDMAN YELLOW (0674)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068A-0689

ASM-CHUTE - POLO GREEN (0689)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068A-0691

ASM-CHUTE - BLACK JACK (0691)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068A-0709

ASM-CHUTE - MASTERCRAFT GREEN (0709)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068A-0716

CHUTE ASSY-CHIPPER - CUB YELLOW-99 (0716)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068A-0721

USE 681-0068A-4044 CHUTE ASM- - SEARS RED (0721)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068A-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$177.99

$

Usually ships in 3-6 days

0

$177.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 681-0059

Inner Housing Assembly

Variations

Cub Cadet 681-0059-0483

INNER HOUSING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 681-0059-0498

INNER HOUSING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0059-0638

INNER HOUSING (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 681-0059-0650

INNER HOUSING (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 681-0059-0665

INNER HOUSING (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 681-0059-0716

INNER HOUSING (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

Cub Cadet 723-0438

Rubber Seal

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0604

Hex Washer Screw 5/16-18 x .60
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0384

Hex Lock Nut 1/2-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

14

Cub Cadet 736-0242

Bell Washer .345 ID x .88 OD

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 781-0627

Chipper Blade Cover

Variations

Cub Cadet 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 719-0326

Flail Screen

$101.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0772

Hex Cap Screw 5/16-24 x 2.0

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 781-0598

Lower Shredder Blade
(Superseded to 781-0598-0637)

Variations

Cub Cadet 781-0598-0637

Shredder Blade, Lower - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 781-0599

Upper Shredder Blade
(Superseded to 781-0599-0637)

Variations

Cub Cadet 781-0599-0637

Shredder Blade, Upper - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

0

$33.99

$

In Stock, only 1 left!

0

23

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-1054

Hex Cap Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 781-0544

Chipper Blade

$

$

Currently unavailable

26

Cub Cadet 681-0078

Impeller Assembly
(Superseded to 981-04091)

$533.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 719-0329

Flail Blade

$31.99

$

In Stock, only 4 left!

0

28

Cub Cadet 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 711-0833B

Clevis Pin
(Superseded to 911-0833B)

$12.99

$

In Stock, only 4 left!

0

30

Cub Cadet 715-0166

Pin

$6.99

$

In Stock, Qty 19

0

31

Cub Cadet 710-1273

Hex Cap Screw 3/8-24 x 2.75

$7.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0217

Lock Washer 3/8

$4.49

$

In Stock, Qty 6

0

33

Cub Cadet 736-0247

Flat Washer 3/8 x 1.25

$9.49

$

In Stock, Qty 12

0

34

Cub Cadet 712-0411

Hex Lock Nut 5/16-24

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 681-0060

Outer Housing Assembly

Variations

Cub Cadet 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0498

USE 681-0060-0716 HOUSING-ASS - OLD CUB YELLOW (0498)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-0607

Hex Washer Screw 5/16-18

$6.99

$

In Stock, Qty 9

0

37

Cub Cadet 710-0382

Hex Cap Screw 1/2-13 x 5.0

$12.99

$

In Stock, only 2 left!

0

38

Cub Cadet 712-0421

Knob 5/16-18 x .70

$6.99

$

In Stock, Qty 20+

0

39

Cub Cadet 731-1613

Safety Switch Mounting Cover
(Superseded to 931-1613)

$10.99

$

In Stock, only 1 left!

0

40

Cub Cadet 710-1268

Hex Washer Screw #10-16 x .30

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 725-3166

Snap Mount Switch
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

42

Cub Cadet 725-1700

Switch Cover
(Superseded to 925-1700)

$11.99

$

In Stock, only 1 left!

0

43

Cub Cadet 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 629-0241

Wire Harness

$

$

Not available

45

Cub Cadet 634-0100

Wheel Assembly 10 x 4.0

$

$

Not available

46

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

48

Cub Cadet 734-1517B

Wheel Assembly 8 x 2.0

$68.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 712-0431

Hex Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 736-0105

Bell Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0232

Wave Washer .53 ID x .78 OD

$4.99

$

In Stock, Qty 12

0

52

Cub Cadet 738-0213

Shoulder Bolt

$7.99

$

In Stock, only 2 left!

0

53

Cub Cadet 731-0982A

Hubcap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0
