CSV 260 (24A-315C100) - Cub Cadet Chipper/Shredder/Vacuum (2002) General Assembly Parts Diagram

Chipper/Shredder/Vacuum

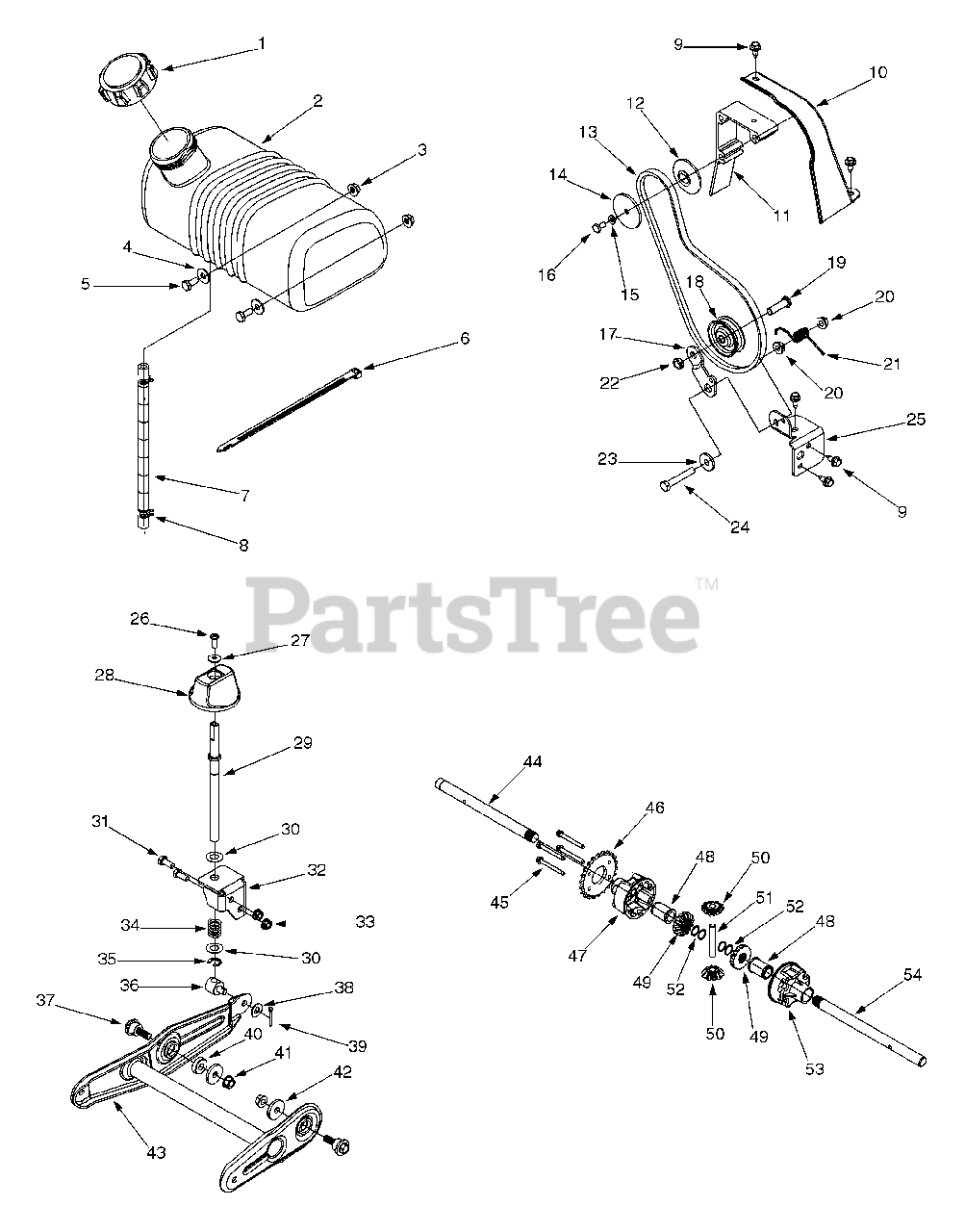

General Assembly Parts Diagram

  • Title

1

Cub Cadet 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

2

Cub Cadet 751-0610

Gas Tank - 1 Gallon

$

$

Not available

3

Cub Cadet 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 736-0173

Flat Washer .28 ID x .74 OD

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

7

Cub Cadet 751-0535

Fuel Line

$

$

Currently unavailable

8

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0896

Hex Washer Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 731-1584

Belt Cover

Variations

Cub Cadet 731-1584-0637

Belt Cover, Plastic - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 719-0330A

Engine Mounting Adapter

$

$

Not available

12

Cub Cadet 756-0987

Pulley Half
(Superseded to 956-0987)

$

$

Not available

13

Cub Cadet 754-0256

V-Belt
(Superseded to 954-0256)

$47.99

$

In Stock, only 1 left!

0

14

Cub Cadet 756-0986

Pulley Half

$

$

Not available

15

Cub Cadet 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

16

Cub Cadet 710-0230

Hex Cap Screw 1/4-28 x .50

$

$

Not available

17

Cub Cadet 781-0614

Idler Bracket

$

$

Not available

18

Cub Cadet 756-0313

Flat Idler

$26.99

$

In Stock, only 3 left!

0

19

Cub Cadet 710-0723

Hex Cap Screw 3/8-16 x 1.25

$4.99

$

In Stock, only 3 left!

0

20

Cub Cadet 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 732-0745

Torsion Spring

$

$

Not available

22

Cub Cadet 712-0266

Lock Nut 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0646

Hex Cap Screw 5/16-18 x 2.0
(Superseded to 710-04039)

$4.99

$

In Stock, only 4 left!

0

25

Cub Cadet 781-0611

Idler Pivot Bracket

Variations

Cub Cadet 781-0611-0483

IDLER BRACKET CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0611-0498

IDLER BRACKET (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0611-0499

IDLER BRACKET (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 781-0611-0637

IDLER BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0611-0648

IDLER BRACKET (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0611-0650

IDLER BRACKET (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0611-0716

IDLER BRACKET (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

26

Cub Cadet 710-0924

Machine Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 720-0236

Knob
(Superseded to 920-0236)

$18.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 747-0361

Height Adjustment Rod

$

$

Currently unavailable

30

Cub Cadet 736-0369

Flat Washer .508 ID x 1.0 OD

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 781-0605

Height Adjustment Bracket

Variations

Cub Cadet 781-0605-0637

BRACKET-HGT-ADJ (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

33

Cub Cadet 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 732-0645

Compression Spring
(Superseded to 932-0645)

$2.99

$

In Stock, only 4 left!

0

35

Cub Cadet 716-0104

E Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 711-1041

Adjustment Ferrule

$

$

Not available

37

Cub Cadet 738-0955

Shoulder Screw 3/8-16

$

$

Not available

38

Cub Cadet 736-0300

Flat Washer .406 ID x .875 OD

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

40

Cub Cadet 711-0242

Spacer

$4.49

$

In Stock, Qty 8

0

41

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0247

Flat Washer .375 ID x 1.25 OD

$9.49

$

In Stock, Qty 12

0

43

Cub Cadet 681-0096

Pivot Wheel Bracket Assembly

Variations

Cub Cadet 681-0096-0483

PIVOT BRACKET ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 681-0096-0498

PIVOT BRACKET ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0096-0629

PIVOT BRACKET ASSEMBLY - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 681-0096-0637

PIVOT BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 681-0096-0648

PIVOT BRACKET ASSEMBLY - TECH GRAY (0648)

$

$

Not available

Cub Cadet 681-0096-0667

PIVOT BRACKET ASSEMBLY - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 681-0096-0716

PIVOT BRACKET ASSEMBLY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

44

Cub Cadet 711-1038

Axle Shaft .750 x 9.8

$

$

Not available

45

Cub Cadet 710-1206

Hex Washer Screw 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

46

Cub Cadet 713-0445

Sprocket 22T

$

$

Not available

47

Cub Cadet 719-0334

Differential Housing LH

$

$

Not available

48

Cub Cadet 748-0383

Flange Bearing .75 ID x 1.0 OD x 1.5
(Superseded to 948-0383)

$

$

Not available

49

Cub Cadet 717-1358

Differential Gear 14T

$

$

Not available

50

Cub Cadet 717-1437

Differential Gear 10T

$

$

Not available

51

Cub Cadet 711-1035

Cross Shaft .427 x 2.7

$

$

Not available

52

Cub Cadet 716-0232

Retaining Ring

$

$

Not available

53

Cub Cadet 719-0333

Differential Housing RH

$

$

Not available

54

Cub Cadet 711-1037

Axle Shaft .750 x 10.954

$

$

Not available
