CSV 260 (247-315C100) - Cub Cadet Chipper/Shredder/Vacuum (1997) Wheel Parts Diagram

Chipper/Shredder/Vacuum

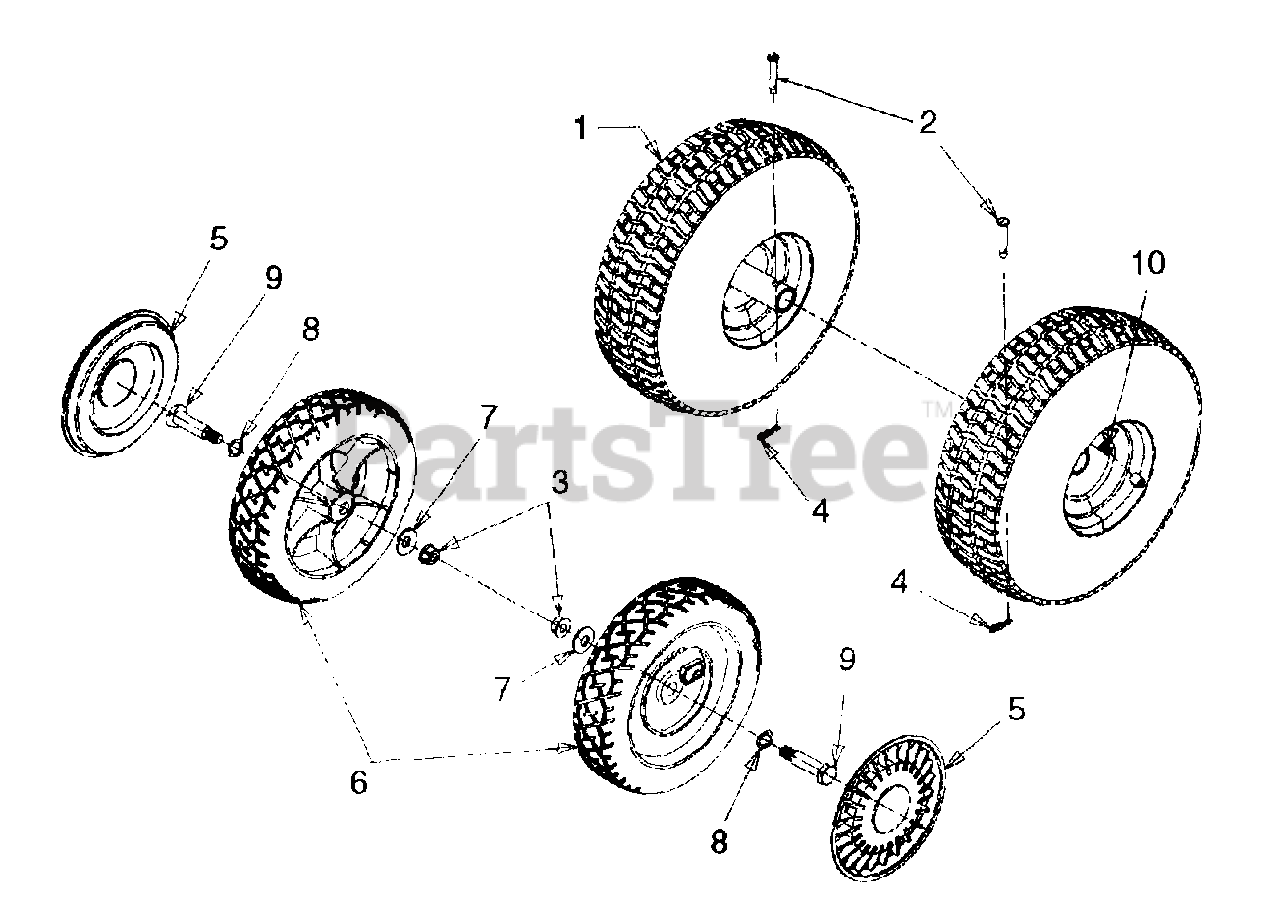

Wheel Parts Diagram

  • Title

1

Cub Cadet 634-0100

Wheel Ass'y Complete

$

$

Not available

Cub Cadet 634-0101

Rim Assembly

Note: Code 0499

Variations

Cub Cadet 634-0101-0499

RIM ASSEMBLY - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 634-0101-0629

RIM ASSEMBLY - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 634-0101-0674

RIM ASSEMBLY - YARDMAN YELLOW (0674)

$

$

Not available

$

$

Cub Cadet 734-1598

Tire, Pneumatic, 10 x 4
(Superseded to 734-1598-0901)

Variations

Cub Cadet 734-1598-0901

Tire, 648 4.10 /3.5 - Carlisle (0901)

$119.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1598-0902

Tire, 648 4.10 /3.5 - Dico (0902)

$119.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1598-0905

Tire, 648 4.10 /3.5 - Duro (0905)

$119.99

$

Usually ships in 3-6 days

0

$119.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 711-1017

Pin, Clevis, .25 x 1.53

$7.49

$

In Stock, only 1 left!

0

3

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 731-0982A

Hubcap, Beige
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

6

Cub Cadet 734-1517B

Wheel Ass'y Complete, 8 x 2.0

$68.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 736-0105

Washer, Bell, .401 x .870 x .06

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0232

Washer, Wave, .53 x .78 x .013

$4.99

$

In Stock, Qty 12

0

9

Cub Cadet 738-0213

Shoulder Bolt

$7.99

$

In Stock, only 2 left!

0

10

Cub Cadet 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
