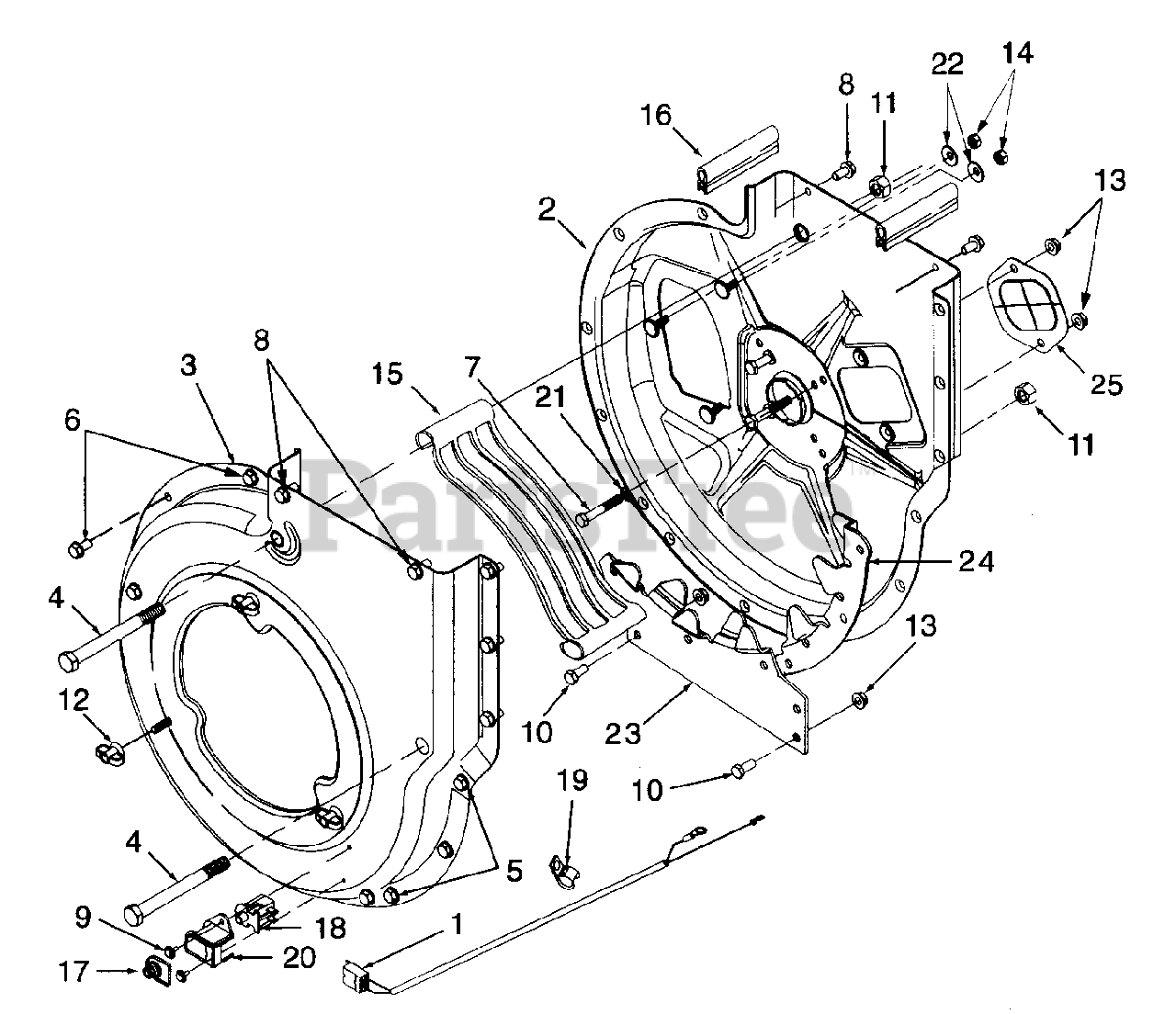

CSV 260 (247-315C100) - Cub Cadet Chipper/Shredder/Vacuum (1997) Housing Parts Diagram

Chipper/Shredder/Vacuum

Housing Parts Diagram

  • Title

1

Cub Cadet 629-0241

Harness, Wire

$

$

Not available

2

Cub Cadet 681-0059

Housing Ass'y, Inner Flail

Note: Code 0498

Variations

Cub Cadet 681-0059-0483

INNER HOUSING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 681-0059-0498

INNER HOUSING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0059-0638

INNER HOUSING (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 681-0059-0650

INNER HOUSING (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 681-0059-0665

INNER HOUSING (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 681-0059-0716

INNER HOUSING (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

Cub Cadet 681-0060

Housing Ass'y, Outer Flail

Note: Code 0498

Variations

Cub Cadet 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0498

USE 681-0060-0716 HOUSING-ASS - OLD CUB YELLOW (0498)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0382

Screw, Hex Cap, 1/2-13 x 5.0

$12.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0604

Screw, Hex Wash Hd Tapp 5/16-18 x .62
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0607

Screw, Hex Wash Hd Tapp 5/16-18 x .50

$6.99

$

In Stock, Qty 11

0

7

Cub Cadet 710-0772

Screw, Hex Cap, 5/16-24 x 2 GR5

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1260

Screw, Hex Wash Hd Tapp 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1268

Screw, Hex Wash Hd Tapp #10-16 x .38

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0384

Nut, Hex Center Lock, 1/2-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

12

Cub Cadet 712-0421

Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3010

Nut, Hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 719-0326

Screen, Discharge

$101.99

$

In Stock, only 2 left!

0

16

Cub Cadet 723-0438

Rubber Seal

$10.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 725-1700

Cover, Switch
(Superseded to 925-1700)

$11.99

$

In Stock, only 1 left!

0

18

Cub Cadet 725-3166

Switch, Snap Mount
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

19

Cub Cadet 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-1613

Cover, Safety Switch Mtg.
(Superseded to 931-1613)

$10.99

$

In Stock, only 1 left!

0

21

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0242

Washer, Bell, .345 x .88 x .06

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 781-0598

Blade, Lower Shredder
(Superseded to 781-0598-0637)

Variations

Cub Cadet 781-0598-0637

Shredder Blade, Lower - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 781-0599

Blade, Upper Shredder
(Superseded to 781-0599-0637)

Variations

Cub Cadet 781-0599-0637

Shredder Blade, Upper - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

0

$33.99

$

In Stock, only 1 left!

0

25

Cub Cadet 781-0627

Cover, Chipper Blade

Variations

Cub Cadet 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0
